TLP300 ANALOG

Product catalog summary

Overview: The TLP300 is an inclination sensor utilizing MEMS technology, designed for precise angle measurement in harsh environments. It is suitable for applications such as cranes, aerial platforms, drilling machines, and excavators.

Characteristics: The sensor features high protection level IP67, operates within a temperature range of -40°C to +85°C, and offers stable accuracy across this range. It provides a resolution of up to 0.01° and supports single-axis (0° to 360°) and dual-axis (±1° to ±60°) measurements.

Advantages: The TLP300 offers instantaneous gyro-compensated measurements, excellent accuracy, reliability, long service life, compact dimensions, and high resistance to shock and vibration.

Technical Specifications: The sensor's measuring range is ±1° to ±60° for horizontal versions and 0° to 360° for vertical versions. It has an accuracy of less than ±0.3° at 25°C, a temperature coefficient of 0.01°/°C, and a protection rating of IP67. The housing is made of PA6 + GF30% material, and the sensor weighs approximately 100g.

Electrical Characteristics: The power supply ranges from 9 to 30 V DC, with reverse polarity protection. It complies with electromagnetic compatibility standards EN 61326-1 and EN 61326-3-1, and adheres to CE and RoHS guidelines.

Operating Principle: The sensor uses MEMS technology, which integrates electronic circuits and opto-mechanical devices on a silicon substrate, similar to integrated circuit manufacturing.

Analog Outputs: The sensor provides various output options, including 0.5 to 4.5 V DC, 0 to 5 V DC, 0 to 10 V DC, and 4 to 20 mA, depending on the configuration.

Installation: For dual-axis sensors, the base plate should be mounted horizontally. For single-axis sensors, the Z-axis should align with the force of gravity.

Catalog excerpts

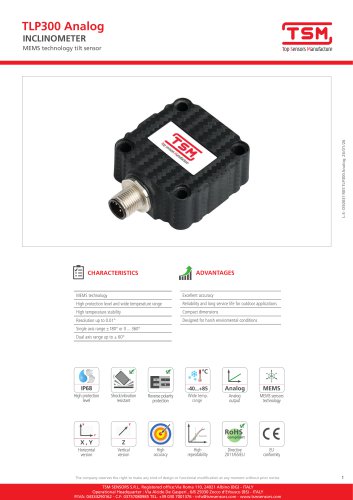

TLP300 INCLINATION SENSOR Inclination Sensor in MEMS Technology CHARACTERISTICS ADVANTAGES MEMS technology High protection level IP67 and wide temperature range from -40°C ... +85°C Stable accuracy over whole temperature range Instantaneous Gyro-compensated measure Excellent accuracy Reliability and long service life for outdoor applications Very compact dimensions High shock/vibration resistance Wide range temperature MEMS sensors technology High protection level Shock/vibration resistant Reverse polarity protection RoHS compliant High repeatability The company reserves the right to make any kind of design or functional modification at any moment without prior notice. TSM SENSORS S.R.L. - Via del Lavoro Artigiano 13/15, 25032 Chian (BS) - ITALY - P.IVA/C.F: IT03757080985 TEL. +39 030 7001376 - [email protected] - www.tsmsensors.com

Open the catalog to page 1

TLP300 INCLINATION SENSOR Inclination Sensor in MEMS Technology *tsm1Top Sensors Manufacture PRODUCT DESCRIPTION TLP300 is available with one or two measurement axes. The inclinometer working principle is based on a micro machined silicon capacitive transductor (developed with MEMS technology). Utilizing gyro-compensated MEMS technology, the sensor position signal is instantaneous with no delays and has a static excellent linearity. TLP300 is suited for applications (cranes, aerial platforms, drilling machines and excavators) in harsh environments which are exposed to motion, shock and vibration,...

Open the catalog to page 2

TLP300 INCLINATION SENSOR Inclination Sensor in MEMS Technology TECHNICAL SPECIFICATION OPERATING PRINCIPLE = ONLY FOR REDUNDANT VERTICAL VERSIONS IN OTHER CASES SHOULD NOT BE CONNECTED = CONNECT TO GND FOR TWO SECONDS IN ORDER TO HAVE OFFSET The company reserves the right to make any kind of design or functional modification at any moment without prior notice. TSM SENSORS S.R.L. - Via del Lavoro Artigiano 13/15, 25032 Chian (BS) - ITALY - P.IVA/C.F: IT03757080985 TEL. +39 030 7001376 - [email protected] - www.tsmsensors.com

Open the catalog to page 3

INCLINATION SENSOR Inclination Sensor in MEMS Technology ANALOG OUTPUTS Single axis The company reserves the right to make any kind of design or functional modification at any moment without prior notice. TSM SENSORS S.R.L. - Via del Lavoro Artigiano 13/15, 25032 Chiari (BS) - ITALY - P.IVA/C.F: IT03757080985 TEL. +39 030 7001376 -

Open the catalog to page 4

INCLINATION SENSOR Inclination Sensor in MEMS Technology DIRECTION AXES Dual axes The 2-dimensional inclination sensor must be mounted with the base plate in horizontal position, i.e. parallel to the horizontal line. The sensor can be inclined both towards the X and Y axis at the same time. For each axis a separate measured value is provided. TSM dual axes TLP300 inclination sensor Single axis TSM single axis TLP300 inclination sensor The 1-dimensional inclination sensor must be installed with its Z-axis in line with the force of gravity, as illustrated below. The 1-dimensional sensor defaul...

Open the catalog to page 5

INCLINATION SENSOR Inclination Sensor in MEMS Technology The company reserves the right to make any kind of design or functional modification at any moment without prior notice. TSM SENSORS S.R.L. - Via del Lavoro Artigiano 13/15, 25032 Chiari (BS) - ITALY - P.IVA/C.F: IT03757080985 TEL. +39 030 7001376 - [email protected] - www.tsmsensors.com

Open the catalog to page 6
