Smoke Detector

Smoke Detector

Product catalog summary

Application

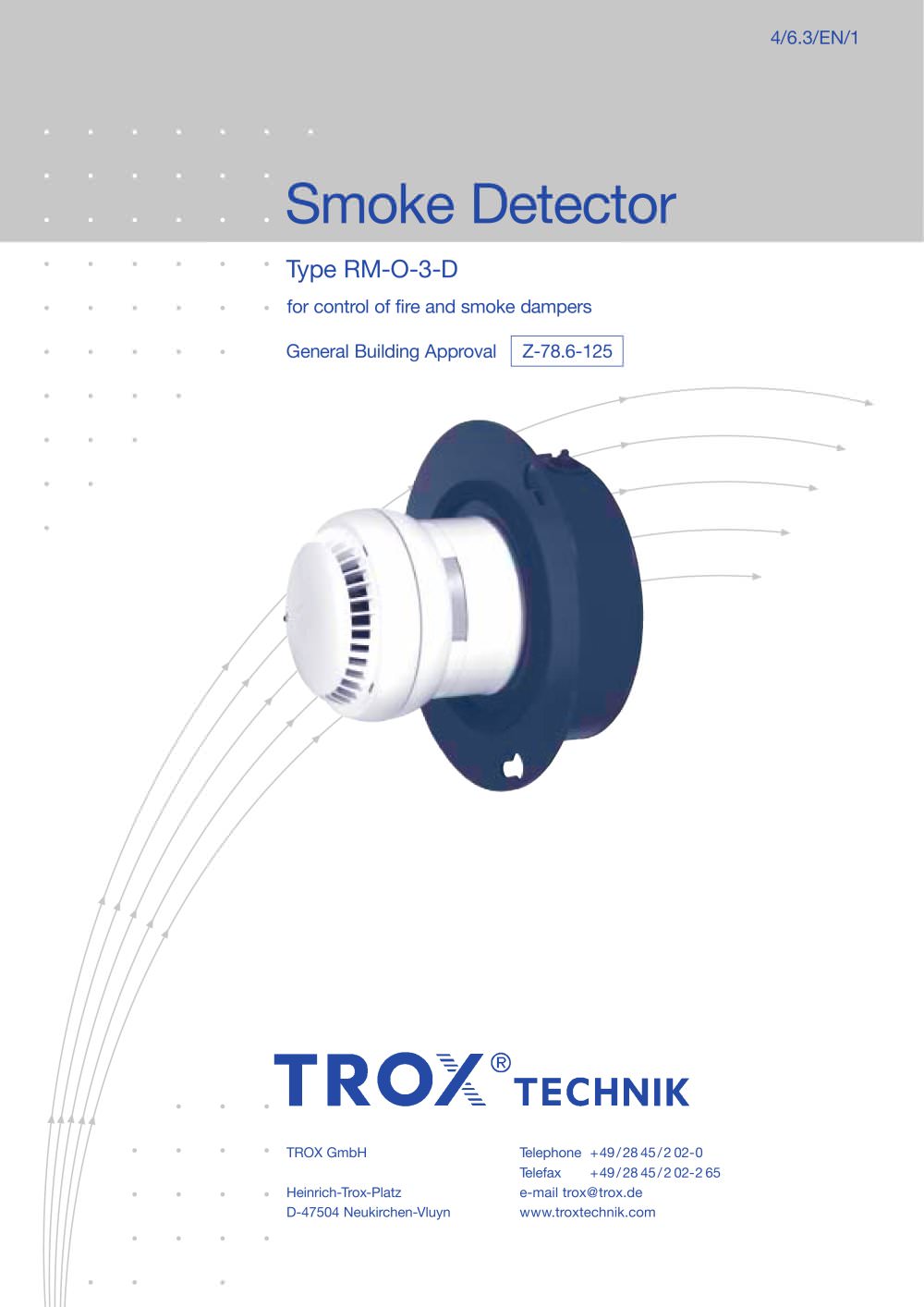

The RM-O-3-D smoke detector is designed for controlling fire and smoke dampers in ventilation systems. It operates on the principle of power off to close and is suitable for use with electric or electro-pneumatic release mechanisms. It is approved for air velocities between 1 m/s and 20 m/s and is independent of air flow direction.

Technical Data

Supply Voltage: 230 V, 50/60 Hz, +10% –15%
Power Consumption: 3 VA
Protection Class: IP 42
Ambient Temperature Range: 0 °C to +60 °C
Humidity Range: 0 to 90% relative humidity
Contamination Warning Limit: > 70%
System Monitoring: > 90% contamination, missing smoke sensor head, or defective data transmission
Alarm Relay Contact: 250 V, 2 A, 24 V DC, 100 W
EMC: EN 61000-6-1 to EN 61000-6-4
Weight: Approx. 0.7 kg

Installation Instructions
The smoke detector should be installed on a vibration-free surface within the duct area to ensure proper operation. A drilling template is provided for accurate installation. Electrical connections must be made for the release mechanism and external functions, and the device must be connected to the mains supply.

Functional Description
The device features a contamination indicator with three ranges: normal (up to 70%), warning (70% to 90%), and alarm (>90%). The alarm situation can only be reset after the smoke sensor is clear of smoke. The system includes LED indicators for system monitoring, alarm conditions, and contamination levels.

Circuit Diagrams
The electrical system must comply with VDE and local regulations. Circuit diagrams are provided for installation with separate power supplies for the release mechanism.

Maintenance
Maintenance must be performed annually by qualified personnel, following DIN 31051 and DIN EN 13306 standards. The smoke sensor should be cleaned if contamination exceeds 70%. Functional checks should be conducted without smoke by pressing the "Reset / Test" button, and with smoke using a test aerosol.

Order Details
The smoke detector uses optical light scatter principles to prevent smoke transfer via ventilation ducts. It is suitable for controlling fire and smoke dampers with general building approval. The device includes integrated signal lamps and a contamination level indicator.

Catalog excerpts

The smoke detector must be installed on a vibration freesurface, in an area of the duct to be monitored, having a uniform air flow over and into the smoke sensor to ensurethe proper operation of the smoke alarm. > Stick the drilling template item on the ventilation ductitem and drill holes (consider the orientation). > Using the fixing screws item , attach the casing to theventilation duct item . > Loosen the cover fixing screws item and remove thecover plate item . > 1.3 1.1 Connect the fire or smoke damper release mechanism. > Ventilation duct, by others Connect electrical wiring for external...

Open the catalog to page 3

FireOperational status / EventSignalAlarm relaySignal relayorsmokeLED lampLED lampLED lampdamper red ֖ yellow ֖ green ֖OPENCLOSED Mains turned onLED Functional status ֖ ContactMains not turned onLEDContactMains turned onLEDElectronics defective No smoke sensorContact > 34 12 34 12 Alarm situation, immediate release signal ֖ > 34 12 Dust / Contamination 1)LED> 70% < 90%ContactDust / ContaminationLED> 90% > 34 12 Alarm situation, immediate release signal ֖ ContactReset / TestLED > 34 12 Inspection ֖ ContactSmoke 2)LED > 34 12 Alarm situation, immediate release signal ֖ Contact > 34 12

Open the catalog to page 4

CLOSED position)Figure 2Installation with separate power supply for the releasemechanism A on the system fire or smoke damper The entire electrical system must be installed in accordancewith VDE (or National equivalent) and the local Energy SupplyCompany regulations. Also current National Legal Standards related to the Regulations on fire protection requirements for ventilation plantsӔ must be complied with.Figure 1Circuit diagram RM-O-3-D(Fire or smoke damper in > F1 100mAT (Feinsicherung)Reset / Test Reset / Test (extern) F1 100mAT (microfuse) T T L1L1L2L3L1N 123412PEPEN L1L1N 123412PEPEN Six-point...

Open the catalog to page 5

(annually during the inspection) The operator must comply with the basic maintenancerequirements in accordance with DIN 31051 (Principles of maintenance) in conjunction with DIN EN 13306 (Maintenance concepts). > With contamination above 70% (yellow signal lamp flashing)clean the smoke sensor by blowing out with clean compressed air (oil and moisture free). If unsuccessful, the smoke sensor must be replaced. > Maintenance activities may only be carried out by qualifiedcompanies / specialist staff. > Remove impurities from the dirt protection screens on the airentry holes (smoke sensor and flow...

Open the catalog to page 6

Smoke detector (smoke sensing using optical lightscatter principle) to prevent transfer of smoke via the ventilation ducting in air conditioning systems. Suitable for control and release of fire and smoke dampers with General Building Approval equipped with electric or electro-pneumatic release mechanisms and working on the principle of power off to close.Essential features Manufacturer:TROX Type:RM - O - 3 - D Quantity:5 > Granted General Building Approval Z-78.6-125 by theGerman Institute for Structural Engineering, Berlin > Independent of air flow direction > With integral mains adapter (supply...

Open the catalog to page 7
