![High Efficiency Terminal Filters - 1](https://img.directindustry.com/pdf/repository_di/16696/high-efficiency-terminal-filters-117533_1m.jpg)

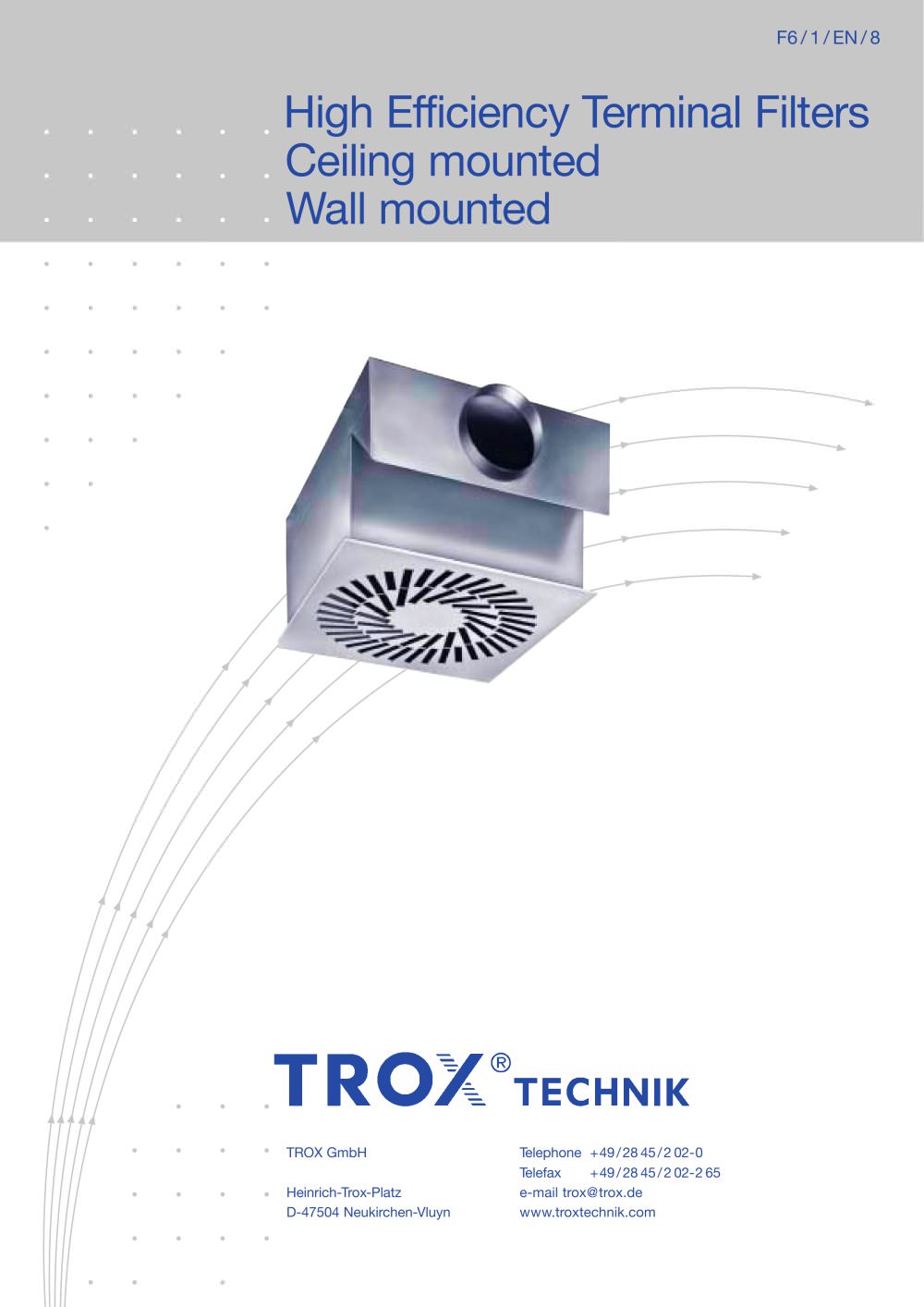

High Efficiency Terminal Filters Ceiling mounted Wall mounted TROX GmbH e-mail trox@trox.de
Open the catalog to page 1![High Efficiency Terminal Filters - 2](https://img.directindustry.com/pdf/repository_di/16696/high-efficiency-terminal-filters-117533_2m.jpg)
Contents . Product Types Product types ________________________________ 2/3 High Efficiency Terminal Filter F631 with circular top air entry spigot _______________ 4 High Efficiency Terminal Filter F655 with air-tight circular shut-off damper and pneumatic actuator _______________________ 8/9 High Efficiency Terminal Filter F 650 with side entry rectangular duct connection _______ 5 High Efficiency Terminal Filter F656 with air tight circular shut-off damper and electric actuator _________________________ 8/9 High Efficiency Terminal Filter F640 with side entry circular duct connection...
Open the catalog to page 2![High Efficiency Terminal Filters - 3](https://img.directindustry.com/pdf/repository_di/16696/high-efficiency-terminal-filters-117533_3m.jpg)
Product Types High Efficiency Terminal Filter F660 (shown with diffuser type FD) High Efficiency Terminal Filter F655/F656 with air-tight shut-off damper (shown with diffuser type VDW 676 x 24) High Efficiency Terminal Filter F670 (shown with grille type ASL-A) 3
Open the catalog to page 3![High Efficiency Terminal Filters - 4](https://img.directindustry.com/pdf/repository_di/16696/high-efficiency-terminal-filters-117533_4m.jpg)
High Efficiency Terminal Filter F631 ceiling mounted Filter module for the very high standards of air purity in clean room technology. Available in various dimensions and constructions. The dimensions conform to standard ceiling grid sizes and can be combined to form complete ceiling panels of any size. Welded filter housing made of sheet steel with powder coating (RAL 9010), with circular top air entry spigot; other layouts and positioning of the spigot available on request. Filter housing with clamping device for the Minipleat Filter Panels, with or without leak-proof test device and...
Open the catalog to page 4![High Efficiency Terminal Filters - 5](https://img.directindustry.com/pdf/repository_di/16696/high-efficiency-terminal-filters-117533_5m.jpg)
High Efficiency Terminal Filter F650 ceiling mounted High Efficiency Terminal Filter for the highest standards of air purity and aseptic conditions in medicine, biology, pharmacy and many sensitive areas of technology. Available in various constructions and dimensions. Welded filter housing made of sheet steel with powder coating (RAL 9010), with side entry rectangular duct connection. Filter housing with clamping device for the particulate filter cell, with leak-proof test device and measuring points for monitoring operational pressure differential. Optional smoke aerosol test point....
Open the catalog to page 5![High Efficiency Terminal Filters - 6](https://img.directindustry.com/pdf/repository_di/16696/high-efficiency-terminal-filters-117533_6m.jpg)
High Efficiency Terminal Filter F640 ceiling mounted High Efficiency Terminal Filter for applications similar to type F650. Available in various constructions and dimensions. Welded filter housing made of sheet steel with powder coating (RAL 9010), with side entry circular duct connection. Filter housing with clamping device for the particulate filter cell, with leak-proof test device and measuring points for monitoring operational pressure differential. Optional smoke aerosol test point. Diffuser from anodised aluminium profile or sheet steel with powder coating (RAL 9010), central fixing...
Open the catalog to page 6![High Efficiency Terminal Filters - 7](https://img.directindustry.com/pdf/repository_di/16696/high-efficiency-terminal-filters-117533_7m.jpg)
High Efficiency Terminal Filter F660 ceiling mounted High Efficiency Terminal Filter for applications similar to filter type F650. Available in various constructions and dimensions. Welded filter housing made of sheet steel with powder coating (FiAL 9010), with circular top air-entry spigot. Alternative spigot connections on request. Filter housing with clamping device for the particulate filter cells, with leak-proof test device and measuring points for monitoring operational pressure differential. Optional smoke aerosol test point. Diffuser from anodised aluminium profile or powder coated...
Open the catalog to page 7![High Efficiency Terminal Filters - 8](https://img.directindustry.com/pdf/repository_di/16696/high-efficiency-terminal-filters-117533_8m.jpg)
High Efficiency Terminal Filter F655/656 ceiling mounted High Efficiency Terminal Filter with air-tight shut-off damper conforming to DIN 1946 Part 4 for installation in air- conditioning plant where high standards of hygiene are required. Construction is the same as type F640 but with an additional shut-off damper conforming to DIN 1946 and test connections for the oil mist test. The integrated shut-off damper offers considerable advantages for project planning, plant operation and maintenance: - An automatic, air-tight shut-off damper is positioned immediately before the final filter...
Open the catalog to page 8![High Efficiency Terminal Filters - 9](https://img.directindustry.com/pdf/repository_di/16696/high-efficiency-terminal-filters-117533_9m.jpg)
Order Example High Efficiency Terminal Filter with side entry circular shut-off damper with pneumatic actuator_ with diffuser ADLQ-A_ . Filter type: with leak-proof test device -Filter type -Leak-proof test and test mist test (standard) -Filter size -Order number Connection data: - pneumatic actuator, maintenance-free Control pressure connection: Detachable fitting for polypropylene - Electric actuator maintenance-free Power input: approx. 10 VA Sound power level of air regenerated noise for the shut-off damper (fully open) Lw in dB/oct: Octave band sound power level of air generated noise...
Open the catalog to page 9![High Efficiency Terminal Filters - 10](https://img.directindustry.com/pdf/repository_di/16696/high-efficiency-terminal-filters-117533_10m.jpg)
High Efficiency Terminal Filter F670 wall mounted High Efficiency Terminal Filter for the highest standards of air purity and aseptic conditions in medicine, biology, pharmacy and in many sensitive areas of technology. Available in housings of three different depths. Welded filter housing made of sheet steel with powder coating (RAL 9010), with clamping device for the particulate filter cell, with optional leak-proof test device and measuring points for monitoring the operational pressure differential. Diffuser and filter cell options are available on request. Diffuser from anodised...
Open the catalog to page 10![High Efficiency Terminal Filters - 11](https://img.directindustry.com/pdf/repository_di/16696/high-efficiency-terminal-filters-117533_11m.jpg)
Air Diffuser and Filter Technical Data Table for determination of aerodynamic and acoustic data (for filter types F640 and F660) 1) Correction factor: VDiagr (400) x1,3 2) Correction factor: VDiagr (625) x 0,85 Particulate Filter Cells/Panels High Efficiency Particulate Filters for the extraction of suspended particles and aerosols, toxic dust, viruses, germs etc. from the supply and extract air. Construction of Filter casings as follows: - W Moisture resistant fibreboard with flat profile neoprene - Z Extruded aluminium with flat profile neoprene gasket - U Extruded aluminium with fluid...
Open the catalog to page 11![High Efficiency Terminal Filters - 12](https://img.directindustry.com/pdf/repository_di/16696/high-efficiency-terminal-filters-117533_12m.jpg)
Specification Text F 6 5 0 A 1 E Order Code Sizes available Leak-proof test device Diffuser: High Efficiency Terminal Filter: (Example) (see table for relevant terminal filters) (standard for types F640-F660) ADLQ-A; ASL-A DLQ-A; SL-A FD VDW DLQL in anodised aluminium in steel, powder coated swirl diffuser, powder coated with fixed blades swirl diffuser, powder coated with adjustable blades perforated sheet steel plate, powder coated F631 with circular top air entry spigot for clean room ceiling application with side entry circular duct connection with side entry rectangular duct connection...
