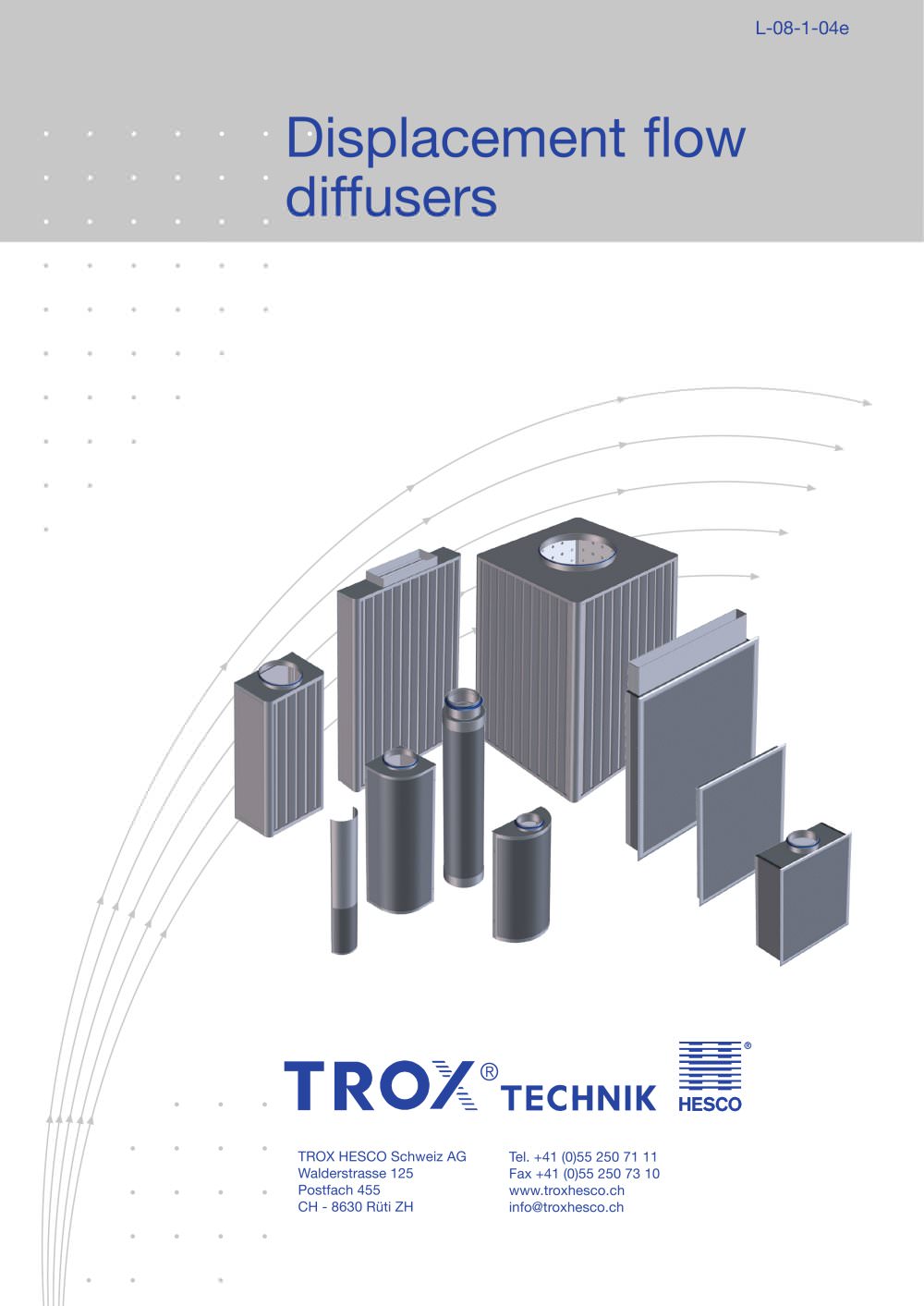

TROX HESCO Schweiz AG Walderstrasse 125 Postfach 455 CH - 8630 Rüti ZH Tel. +41 (0)55 250 71 11 Fax +41 (0)55 250 73 10 www.troxhesco.ch info@troxhesco.ch Displacement flow diffusers L-08-1-04e
Open the catalog to page 1![Displacement Flow Diffusers - 2](https://img.directindustry.com/pdf/repository_di/16696/displacement-flow-diffusers-148454_2m.jpg)
2 0 1000 2000 3000 4000 5000 ‡ [m³/h] 368 102.2 382 106.1 578 160.5 <15 32 44 20 40 54 Lw [dB(A)] Lw [dB(A)] 0 200 400 600 800 1000 1200 ‡ [l/s] 600×1500×600-1×400 600×2000×600-1×400 700×2000×700-1×500 C1 m³/h C2 l/s <15 32 44 54 65 Lw [dB(A)] 54 Construction TROX HESCO displacement flow diffusers in standard construction are made of galvanised sheet steel. The face plate is perforated with 3 mm holes. The visible areas are painted white (RAL 9010). Other RAL colours are available on request. They are maintenance-free because they do not use filter material. Customised versions are...
Open the catalog to page 2![Displacement Flow Diffusers - 3](https://img.directindustry.com/pdf/repository_di/16696/displacement-flow-diffusers-148454_3m.jpg)
3 T a b B-30 | H-30 B T ½ B ½ B B-30 / H-30 ½ B T B B-30 / H-30 T a b B + 2 T = B + 2 = F1 / F2 øD E E T T C ød D B ½B a T H h ød B a ød T a H 2000 1500 h Äh B ød H h B B T ½ B ød H h B B b T d b a H h B B ød B ½B H h B B ød B ½B H h B ød B B ½B T d b b H h a B B ...-EO/ ...-EO-3/ ...-EO-2L ...-EO-2R Page 19-21 Type QL-WQT-RO-2/ Type QL-WQT-RO-3/ Type QL-WQT-RO-4/ General technical information__________________________ 22 Temperature conditions – Nomenclature ________________ 23 Temperature conditions : Comfort conditioning __________ 24 Temperature conditions : Industrial...
Open the catalog to page 3![Displacement Flow Diffusers - 9](https://img.directindustry.com/pdf/repository_di/16696/displacement-flow-diffusers-148454_9m.jpg)
9 600×600 600 600 500 500 30-40 1) 20 600×600-1×200 600 600 500 500 30-40 1) 26 65 18.1 65 18.1 C1 m³/h C2 l/s øD H E B T C 8mm 50 100 150 200 250 300 350 ‡ [m³/h] 10 20 30 40 50 60 70 80 90 ‡ [l/s] Lw [dB(A)] <15 36 Lw [dB(A)] 600×600 600×600-1×200 <15 25 36 25 Technical Data Quick selection Dimensions Type QL-BE-O/ and B H F1 F2 E Weight Type QL-BE-RO/ [mm] [mm] [mm] [mm] [mm] [kg] Type QL-BE-O/ and Type QL-BE-RO for installation into a false floor Type QL-BE-O/ and Type QL-BE-RO/ Other dimensions on request. 1) Variable, depending on thickness of floor tile Not available in stainless...
Open the catalog to page 9![Displacement Flow Diffusers - 17](https://img.directindustry.com/pdf/repository_di/16696/displacement-flow-diffusers-148454_17m.jpg)
17 600×1200×350-1×250 600 1200 350 248 50-70 22 600×2000×350-1×315 600 2000 350 313 50-70 28 0 200 400 600 800 1000 1200 1400 1600 1800 ‡ [m³/h] 111 30.9 190 52.8 0 50 100 150 200 250 300 350 400 450 500 ‡ [l/s] <15 33 45 <15 33 45 Lw [dB(A)] Lw [dB(A)] 600×1200×350-1×250 600×2000×350-1×315 C1 m³/h C2 l/s H h B B T ½ B ød 55 55 Technical Data Type QL-WFT-RO/ for installation on a wall surface with trapezoidal face, circular connecting spigot, without base Dimensions Type QL-WFT-RO/ B H T Ød h Weight [mm] [mm] [mm] [mm] [mm] [kg] Type QL-WFT-RO/ Quick selection Other dimensions on request.
Open the catalog to page 17![Displacement Flow Diffusers - 18](https://img.directindustry.com/pdf/repository_di/16696/displacement-flow-diffusers-148454_18m.jpg)
18 1200×2000×220-800×170 1200 2000 220 798 168 100 110 55 1200×2000×350-800×300 1200 2000 350 798 298 100 150 66 0 1000 2000 3000 4000 5000 ‡ [m³/h] 347 96.5 516 143.2 16 36 48 <15 30 42 Lw [dB(A)] Lw [dB(A)] 0 200 400 600 800 1000 1200 ‡ [l/s] 1200×2000×220-800×170 1200×2000×350-800×300 C1 m³/h C2 l/s H h B B b T d b a 59 52 Type QL-WFT-E/ for installation on a wall surface with trapezoidal face, rectangular connecting spigot, one way discharge, without base Dimensions Type QL-WFT-E/ B H T b a h d Weight [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg] Type QL-WFT-E/ Quick selection Technical Data...
Open the catalog to page 18![Displacement Flow Diffusers - 19](https://img.directindustry.com/pdf/repository_di/16696/displacement-flow-diffusers-148454_19m.jpg)
19 800×2000× 800-1×630 800 2000 628 100 100 1200×2000×1200-1×800 1200 2000 798 100 157 0 1000 2000 3000 4000 5000 6000 7000 8000 ‡ [m³/h] 675 187.4 1063 295.2 800×2000× 800-1×630 1200×2000×1200-1×800 C1 m³/h C2 l/s Lw [dB(A)] 0 200 400 600 800 1000 1200 1400 1600 1800 2000 2200 ‡ [l/s] <15 31 44 <15 30 42 Lw [dB(A)] H h B B ød B ½B 54 52 Technical Data Dimensions Type QL-WQT-RO-2/ B H Ød h Weight [mm] [mm] [mm] [mm] [kg] Type QL-WQT-RO-2/ Quick selection Type QL-WQT-RO-2/ for installation on a wall surface with trapezoidal face, circular connecting spigot, two way discharge, without base...
Open the catalog to page 19![Displacement Flow Diffusers - 20](https://img.directindustry.com/pdf/repository_di/16696/displacement-flow-diffusers-148454_20m.jpg)
20 800×2000× 800-1×630 800 2000 628 100 108 1200×2000×1200-1×800 1200 2000 798 100 167 0 2000 4000 6000 8000 10000 12000 14000 ‡ [m³/h] 792 220.1 1241 344.7 800×2000× 800-1×630 1200×2000×1200-1×800 C1 m³/h C2 l/s <15 33 46 Lw [dB(A)] <15 32 44 Lw [dB(A)] 0 500 1000 1500 2000 2500 3000 3500 ‡ [l/s] H h B B ød B ½B 56 54 Type QL-WQT-RO-3/ for installation on a wall surface with trapezoidal face, circular connecting spigot, three way discharge, without base Dimensions Type QL-WQT-RO-3/ B H Ød h Weight [mm] [mm] [mm] [mm] [kg] Type QL-WQT-RO-3/ Quick selection Technical Data Other dimensions on...
Open the catalog to page 20![Displacement Flow Diffusers - 21](https://img.directindustry.com/pdf/repository_di/16696/displacement-flow-diffusers-148454_21m.jpg)
21 800×2000× 800-1×630 800 2000 628 100 116 1200×2000×1200-1×800 1200 2000 798 100 184 0 2000 4000 6000 8000 10000 12000 14000 ‡ [m³/h] 851 236.4 1329 369.0 800×2000× 800-1×630 1200×2000×1200-1×800 C1 m³/h C2 l/s 18 38 51 Lw [dB(A)] Lw [dB(A)] 17 37 50 0 500 1000 1500 2000 2500 3000 3500 ‡ [l/s] H h B ød B B ½B 62 60 Type QL-WQT-RO-4/ for free standing installation with trapezoidal face, circular connecting spigot, four way discharge, without base Technical Data Dimensions Type QL-WQT-RO-4/ B H Ød h Weight [mm] [mm] [mm] [mm] [kg] Type QL-WQT-RO-4/ Quick selection Other dimensions on request.
Open the catalog to page 21![Displacement Flow Diffusers - 22](https://img.directindustry.com/pdf/repository_di/16696/displacement-flow-diffusers-148454_22m.jpg)
22 General technical information for the selection of TROX HESCO displacement flow diffusers Displacement flow is different from mixed flow not only in that the discharge point is no longer in or near the ceiling area but also in that the air movement is driven by the thermal convection generated by users of the space, machines, computers etc. Because the outlets for displacement flow are normally in the occupied zone, the discharge velocities are very low compared to mixed flow. 0,1 to 0,2 m/s in comfort conditioning and up to a maximum of 0,5 m/s in industrial applications or situations...
