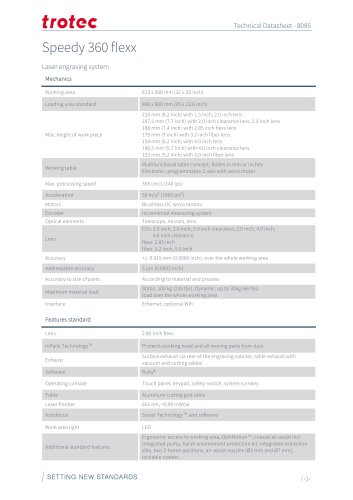

trotcc Technical Datasheet - 8085 Mechanics Working area Loading area standard Max. height of work piece Working table 210 mm (8.2 inch) with 1.5 inch, 2.0 inch lens 197.5 mm (7.7 inch) with 2.0 inch clearance lens, 2.5 inch lens 188 mm (7.4 inch) with 2.85 inch flexx lens 179 mm (7 inch) with 3.2 inch fiber lens 159 mm (6.2 inch) with 4.0 inch lens 146.5 mm (5,7 inch) with 4.0 inch clearance lens 133 mm (5.2 inch) with 5.0 inch fiber lens

trotcc Technical Datasheet - 8085 Vision Design&Position Design and Position job in live view of work area on Ruby screen. Temperature sensor Should the temperature inside the engraving compartment exceed a critical value, the laser will signal this to the operator by a warning sound. The operator then can take action immediately. Gas-Kit light Control of external supplied compressed air (free of mechanical dust, water and oil) max. flow rate 150 l/min (40 gpm) with max. 10 bar (145 psi); Water cooling preparation Additional parts to connect an external cooler Industrial interface Start / Stop...

trotcc Technical Datasheet - 8085 Laser class CDRH laser class 2 Certificates CE compliant, FDA listed Exhaust Minimum volume required (without 350 m3/h at 3.500 Pa Atmos Duo Plus (or equivalent systems, all table concepts) Vent Set 400 (or equivalent systems; all table concepts except vacuum table/strong vacuum effect) Vent Set 500 (or equivalent systems, all table concepts incl. vacuum table/strong vacuum effect) Active air flow cooling with fan Liquid cooling Optional available for CO2 laser sources 60 - 120 watts with external liquid cooler Electrical Voltage & power consumption 1 ~ AC 110-230V...
