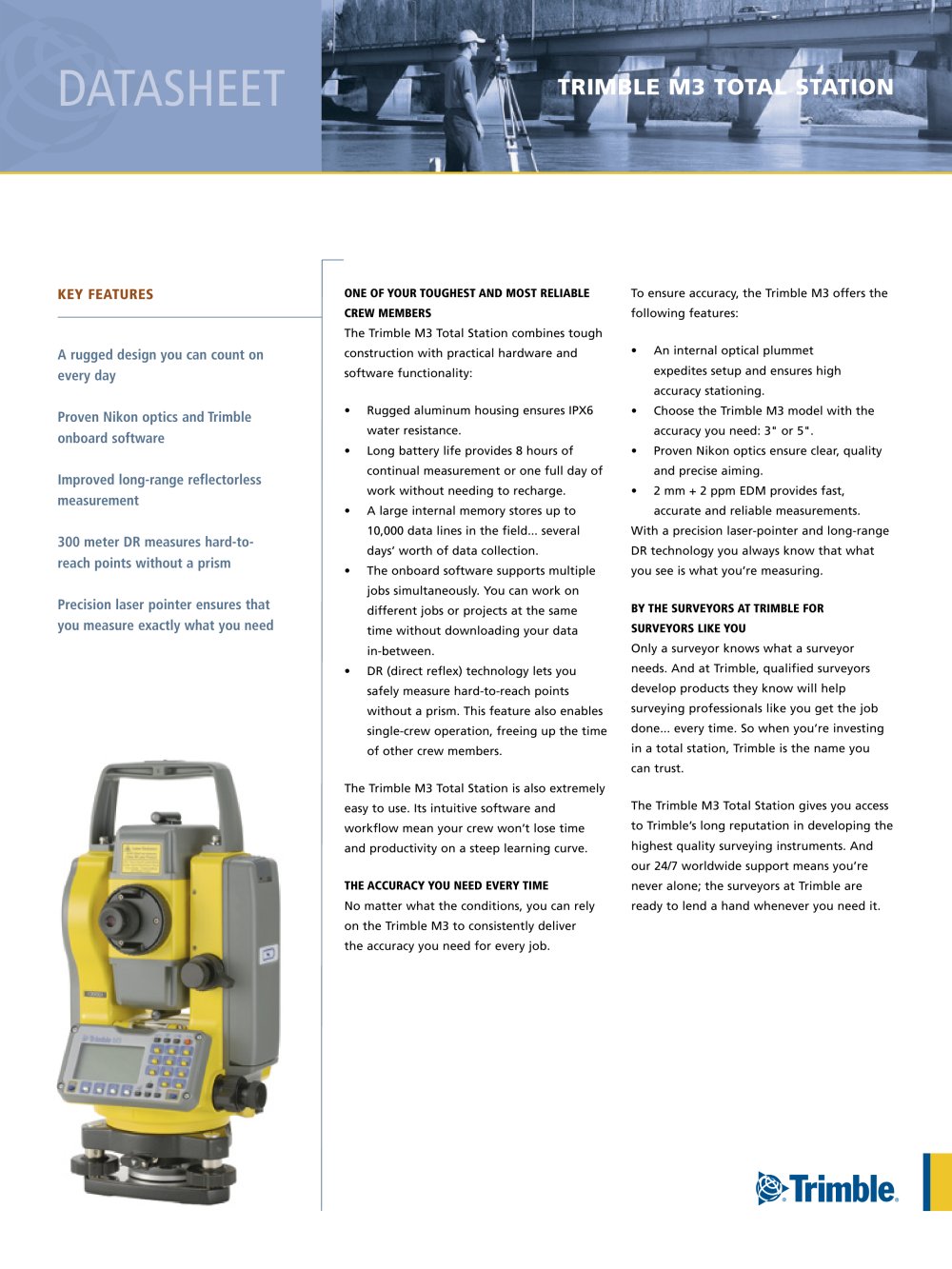

Trimble M3 Total Station Datasheet - English

Trimble M3 Total Station Datasheet - English

Product catalog summary

Overview: The Trimble M3 Total Station is a robust and reliable surveying instrument designed for tough conditions. It features a rugged aluminum housing with IPX6 water resistance, long battery life, and large internal memory for extensive data collection.

Key Features:

Rugged design with IPX6 water resistance.
8-hour battery life for continuous operation.
Internal memory capable of storing up to 10,000 data lines.
Onboard software supports multiple simultaneous jobs.
DR technology for measuring hard-to-reach points without a prism.

Accuracy and Performance: The Trimble M3 ensures high accuracy with features such as an internal optical plummet, Nikon optics, and a precision laser pointer. It offers models with 3" or 5" accuracy and provides fast, reliable measurements with a 2 mm + 2 ppm EDM.

Specifications:

Angle Measurement: 3" or 5" standard deviation.
Distance Measurement: Accuracy in prism mode ±(2+2 ppm × D) mm.
Operating Temperature: -20 ºC to +50 ºC.
Environmental Protection: IP56 dust and water proofing.
Display: Graphic LCD with LED backlight.
Power Supply: Rechargeable Ni-MH battery with approximately 8 hours of operating time.

Software and Recording: The Trimble M3 includes software features for various surveying tasks and supports data input/output via RS232 with external recording capabilities.

Certifications: The device is certified with Class B Part 15 FCC, CE Mark, and C-tick approval. It complies with laser safety standards IEC 60825-1.

Support and Reliability: Trimble offers 24/7 worldwide support, ensuring that surveyors have assistance whenever needed. The Trimble M3 is backed by Trimble's reputation for high-quality surveying instruments.
