LT pump -Series Datasheet

1 / 2 PagesView full catalog

LT pump -Series Datasheet

Product catalog summary

Features

Optimized for long life and zero maintenance.
Ensures ideal alignment of syringe.
UHMWPE syringe seals offer unparalleled life.
Standard pumps can be enhanced with options like valves, electronics, and encoders.

Base Model

Available volumes: 250 µL, 150 µL, 1.0 mL, 2.5 mL, 5.0 mL.

Customer Requirements

Recommended drive: 24 VDC bipolar chopper drive, ½ step, at rated current. Higher voltage may be needed at higher step rates.

Configured Options

Volume Displacement (nominal): 250 µL, 500 µL, 1.0 mL, 2.5 mL, 5.0 mL.
Step Resolution varies from 0.150 mL/full step to 3.000 mL/full step depending on model.
Syringe Data: Bore and Stroke dimensions vary by model.
Materials used: PPS, Borosilicate Glass, UHMWPE, Viton®.

Specifications

Functional Parameters: Imprecision < 0.05% CV, Inaccuracy < 1.0%.
Motor/Leadscrew Data: Travel/Step is 0.0004" (0.01 mm), Step Angle is 1.8 degrees, Resistance/Phase is 3.5 Ω, Inductance/Phase is 4.0 mH, Rated Current is 900 mA, Rated Voltage is 3.2 V.
Dimensions: Overall Width 2.12" (53.85 mm), Height 5.90" (149.86 mm), Depth 2.62" (66.55 mm).
Fluid Backpressure: 5 PSI max.

Additional Information

Positive displacement pump solutions for OEMs worldwide.
Contact: TriContinent by Gardner Denver, 12555 Loma Rica Drive, Grass Valley, CA 95945, Tel: 800-937-4738, Fax: 530-273-2586, Email: [email protected].
Disclaimer: Information is based on technical data and test results of nominal units. Users must determine product suitability for intended use.

Catalog excerpts

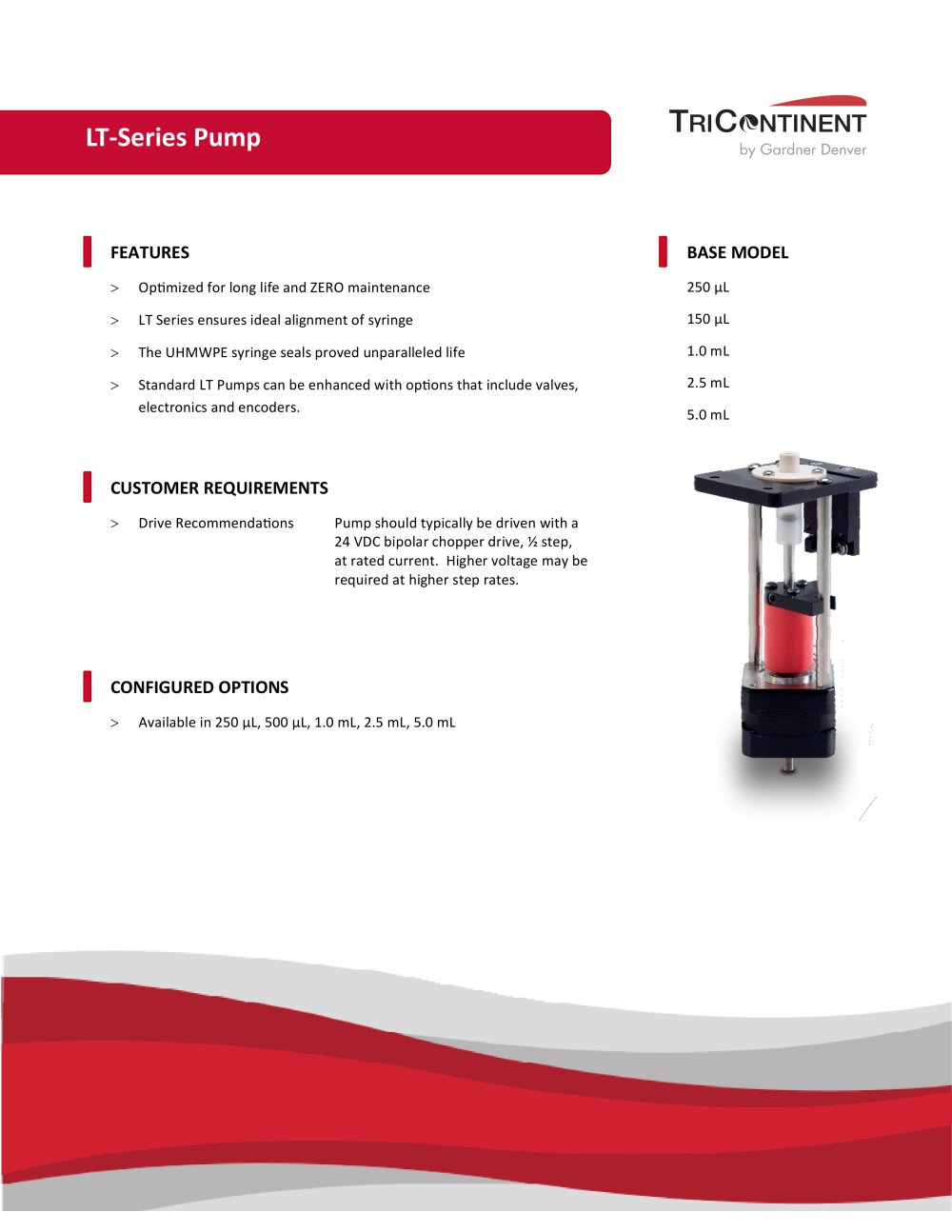

Op mized for long life and ZERO maintenance LT Series ensures ideal alignment of syringe The UHMWPE syringe seals proved unparalleled life Standard LT Pumps can be enhanced with op ons that include valves, electronics and encoders. Pump should typically be driven with a 24 VDC bipolar chopper drive, ½ step, at rated current. Higher voltage may be required at higher step rates.
