C3000 Valve Datasheet

Product catalog summary

Overview: This document provides technical specifications for various rotary valves, specifically focusing on the C-Series Replacement Valves with ¼-28 Thread Ports. The valves are categorized based on their flow paths and material compositions.

Valve Types and Specifications:

Y Valve 120° 3-port: Available in PEEK/UHMWPE (Catalog No. 10020), PEEK/PTFE (Catalog No. 10021), PCTFE/UHMWPE (Catalog No. 10022), and PCTFE/PTFE (Catalog No. 10023).
90° 4-port Valve: Available in PEEK/UHMWPE (Catalog No. 10040), PEEK/PTFE (Catalog No. 10041), PCTFE/UHMWPE (Catalog No. 10042), and PCTFE/PTFE (Catalog No. 10043).
Distribution Valve: Available in PCTFE/UHMWPE (Catalog No. 10062) and PCTFE/PTFE (Catalog No. 10063). Note that serial numbers 336945 or earlier may require a firmware upgrade.
T Valve 3-port: Available in PEEK/UHMWPE (Catalog No. 10115). Serial numbers 336945 or earlier may require a firmware upgrade.
T Valve 4-port: Available in PEEK/UHMWPE (Catalog No. 10125). Serial numbers 336945 or earlier may require a firmware upgrade.

Contact Information: For further inquiries, contact TriContinent at 12555 Loma Rica Drive, Grass Valley, CA 95945. Phone: (800) We-Pipet or (530) 273-8888. Fax: (530) 273-2586. Email: [email protected]. Website: www.tricontinent.com.

Catalog excerpts

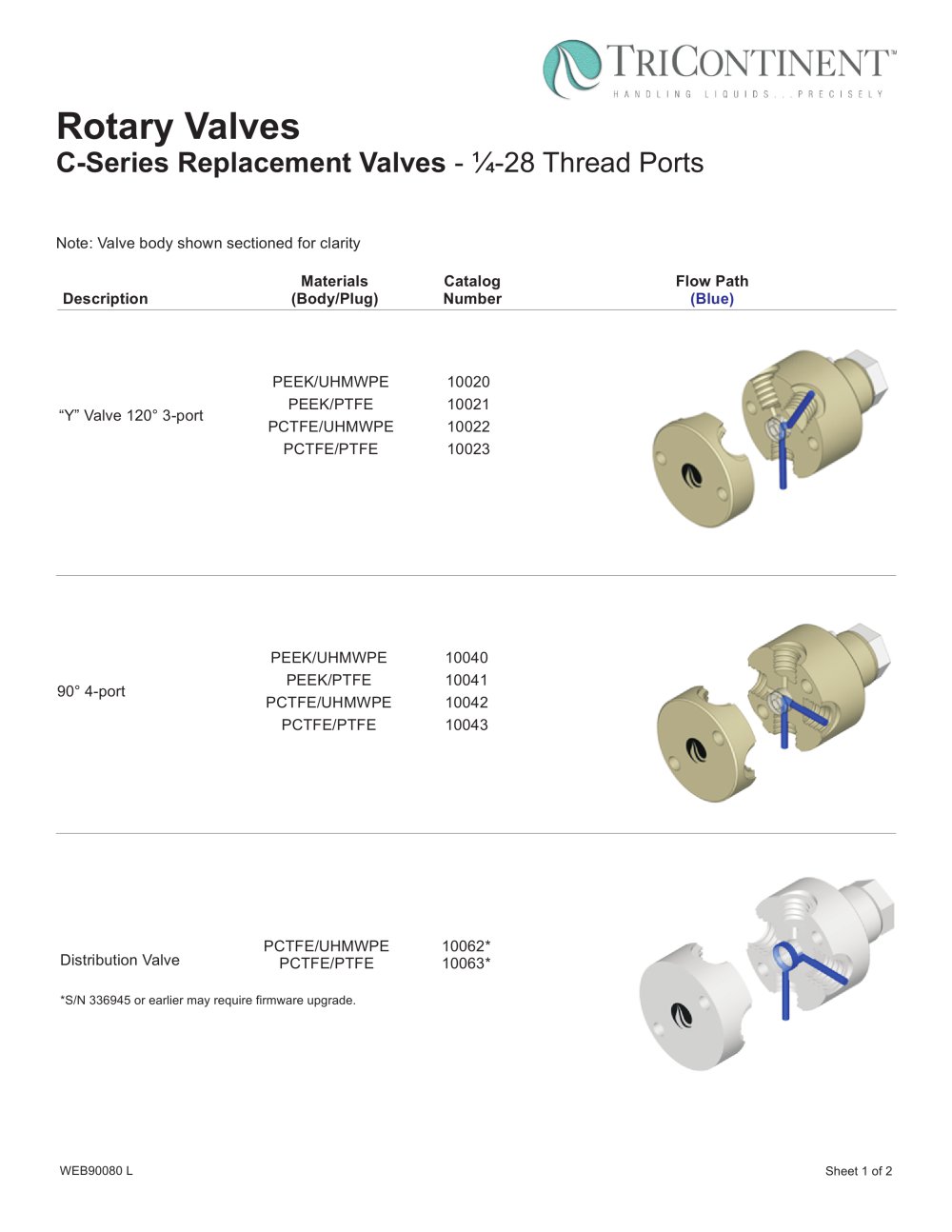

V HANDLING LIQUIDS. ..PRECISELY Rotary Valves C-Series Replacement Valves - V4-28 Thread Ports Note: Valve body shown sectioned for clarity Flow Path Distribution Valve PCTFE/PTFE *S/N 336945 or earlier may require firmware upgrade.

Open the catalog to page 1

Materials (Body/Plug) Catalog Number Flow Path (Blue) *S/N 336945 or earlier may require firmware upgrade. *S/N 336945 or earlier may require firmware upgrade. TriContinent 12555 Loma Rica Drive Grass Valley, CA 95945 Tel: (800) We-Pipet or (530) 273-8888 Fax: (530) 273-2586 Email: [email protected] Web: www.tricontinent.com

Open the catalog to page 2
