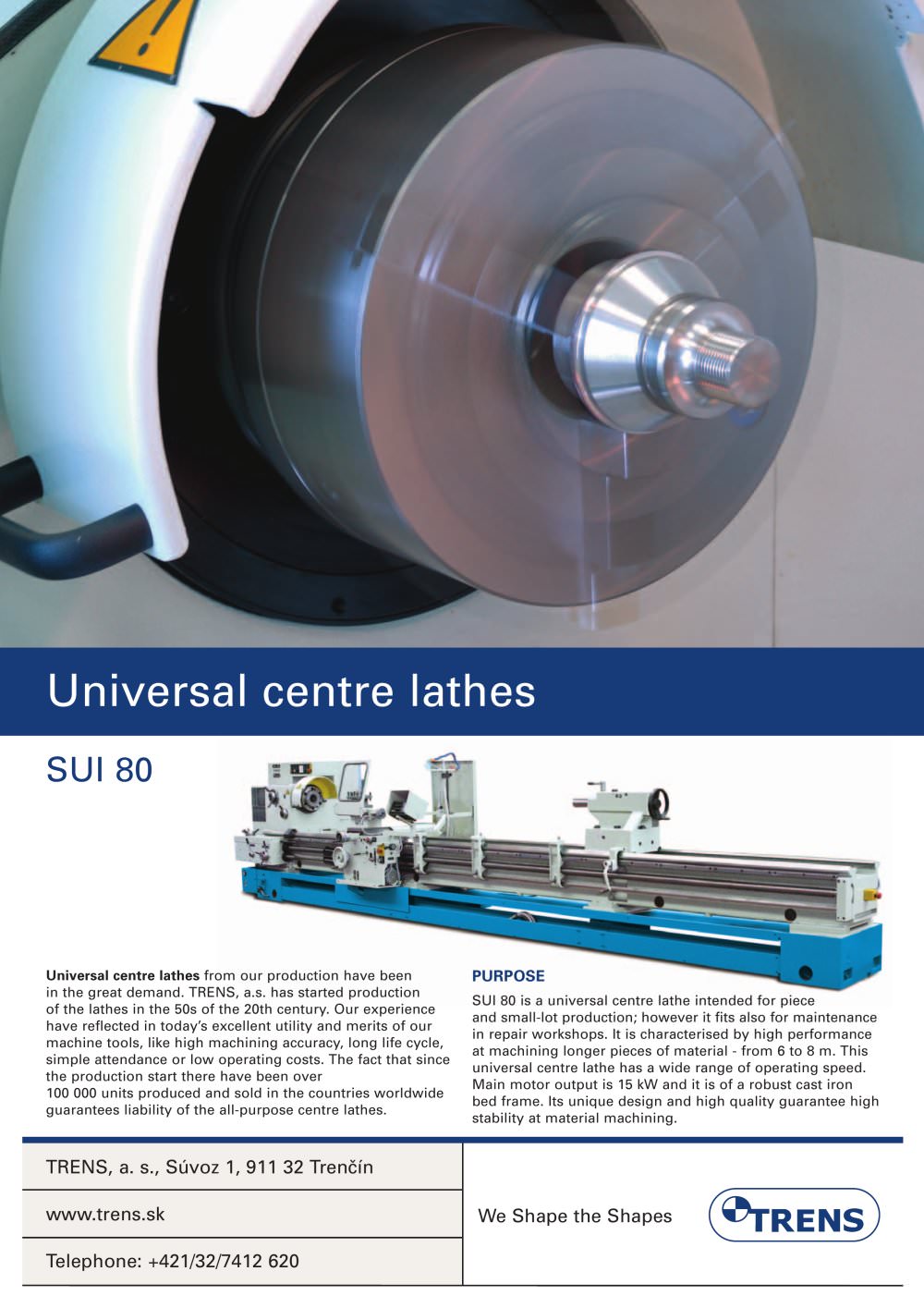

Universal centre lathes from our production have been in the great demand. TRENS, a.s. has started production of the lathes in the 50s of the 20th century. Our experience have reflected in todays excellent utility and merits of our machine tools, like high machining accuracy, long life cycle, simple attendance or low operating costs. The fact that since the production start there have been over 100 000 units produced and sold in the countries worldwide guarantees liability of the all-purpose centre lathes. > SUI 80 is a universal centre lathe intended for piece and small-lot production; however it fits also for maintenance in repair workshops. It is characterised by high performance at machining longer pieces of material - from 6 to 8 m. This universal centre lathe has a wide range of operating speed. Main motor output is 15 kW and it is of a robust cast iron bed frame. Its unique design and high quality guarantee high stability at material machining. >

Spindle Swing over bed800 mm Swing over cross slide 520 mm Swing of the bed gap 870 mm Useful length of the bed gap320 mm Distance between centres 1500, 2000, 3000,4000, 6000, 8000 mm Height of centres over bed395 mm Speed range11,2 - 1800 min. > Spindle front nose STN ISO 702/III ֖ B8Bore71 mm Internal taperMETRIC 80 Max. torque/limiting speed3200/45 Nm/min. > -1 Carriages Cross slide working travel440 mmTool slide working travel 195 mm Max. tool size32 x 32 mm Traverse feed number60 Working range of longitudinal feed 0.06 1.55 mm.rev. > Working range of cross feed 0.03 0.775 mm.rev. > -1...
