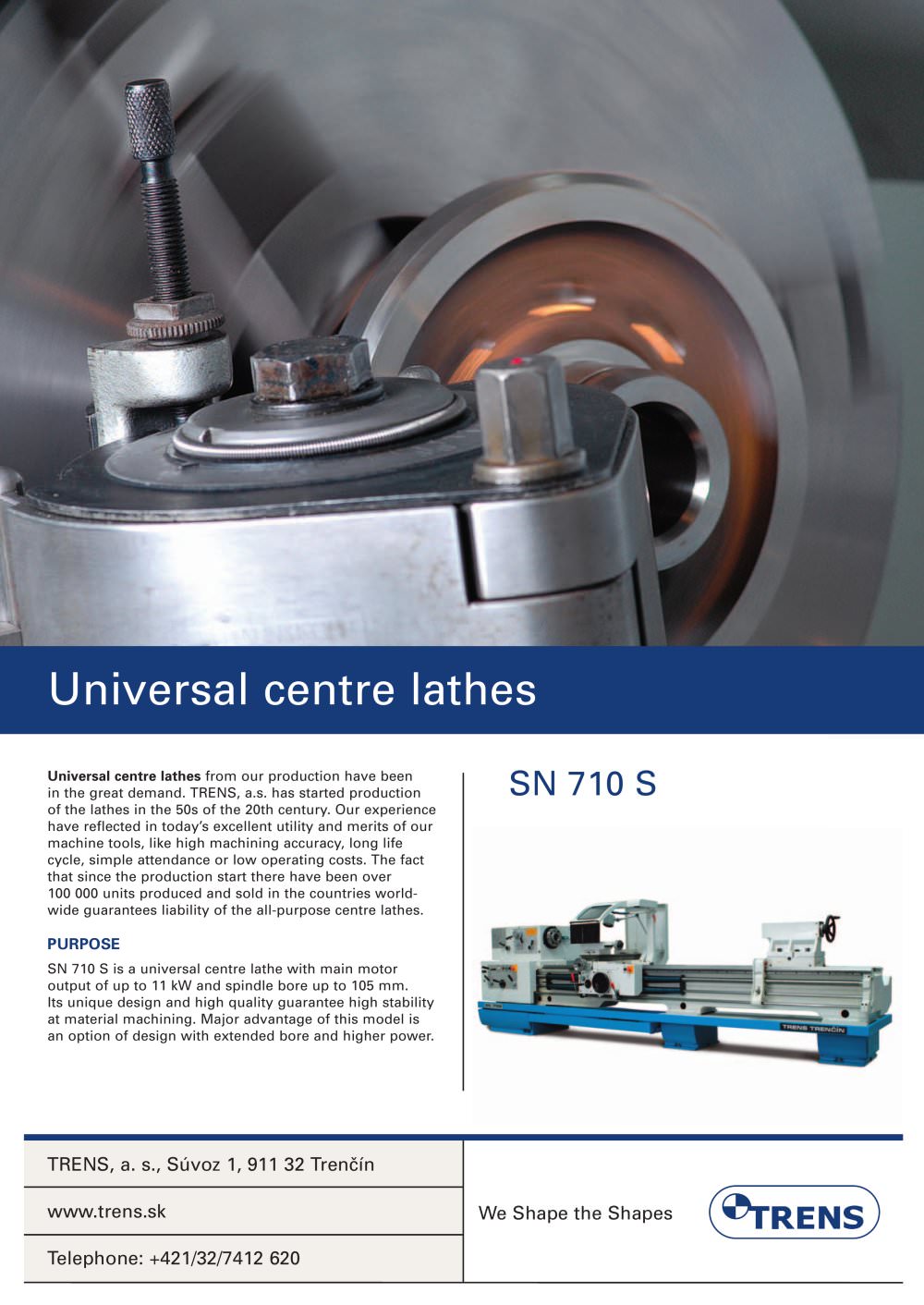

SN 710 S
2Pages

Universal centre lathes from our production have been in the great demand. TRENS, a.s. has started production of the lathes in the 50s of the 20th century. Our experience have reflected in todays excellent utility and merits of our machine tools, like high machining accuracy, long life cycle, simple attendance or low operating costs. The fact that since the production start there have been over 100 000 units produced and sold in the countries world- wide guarantees liability of the all-purpose centre lathes. > SN 710 S is a universal centre lathe with main motor output of up to 11 kW and spindle bore up to 105 mm. Its unique design and high quality guarantee high stability at material machining. Major advantage of this model is an option of design with extended bore and higher power. >

Spindle Swing over bed720 mmSwing over cross slide 430 mm Swing of the bed gap 960 mm Useful length of the bed gap300 mm Distance between centres 1500, 2000, 3000, 4000 mm Height of centres over bed355 mm Speed range10 - 1600 min. > Spindle front nose STN ISO 702/III ֖ B8Bore77 mm Internal taperMETRIC 90 Max. torque/limiting speed1650/40 Nm/min. > -1 Carriages Cross slide working travel400 mmTool slide working travel 180 mm Max. tool size40 x 25 mm Traverse feed number38 Working range of longitudinal feed 0.039 4.8 mm.rev. > Working range of cross feed 0.0195 2.4 mm.rev. > -1 Longitudinal...
