SN 32
2Pages

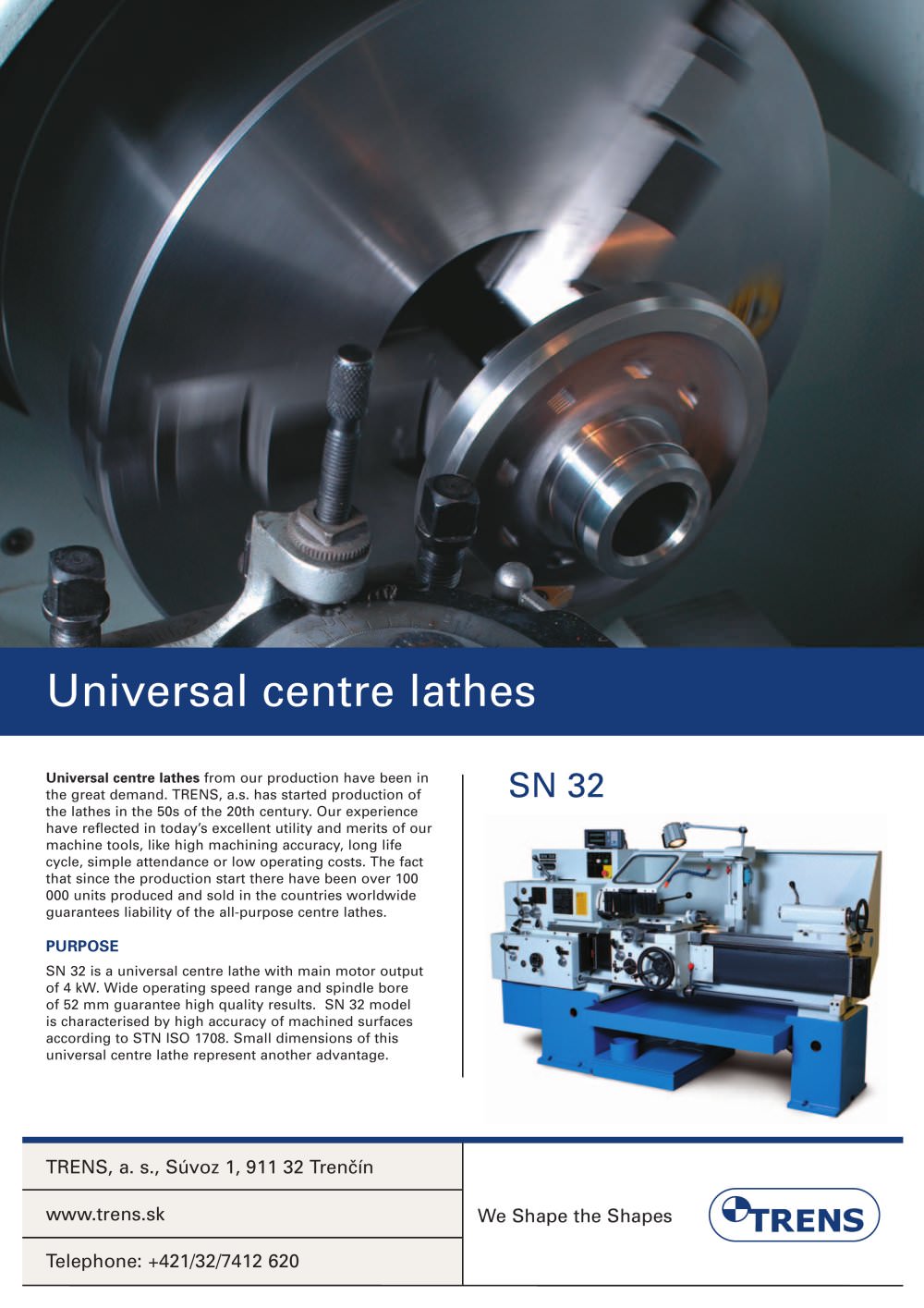

Universal centre lathes from our production have been inthe great demand. TRENS, a.s. has started production of the lathes in the 50s of the 20th century. Our experience have reflected in todays excellent utility and merits of our machine tools, like high machining accuracy, long life cycle, simple attendance or low operating costs. The fact that since the production start there have been over 100 000 units produced and sold in the countries worldwide guarantees liability of the all-purpose centre lathes. > SN 32 is a universal centre lathe with main motor output of 4 kW. Wide operating speed range and spindle bore of 52 mm guarantee high quality results. SN 32 model is characterised by high accuracy of machined surfaces according to STN ISO 1708. Small dimensions of this universal centre lathe represent another advantage. >

Speed range14 - 2500 min. Swing over bed330 mm Swing over cross slide 168 mm Swing in the bed gap 520 mm Useful length of the bed gap230 mm Distance between centres (DBC)750, 1000 mm Height of centres over bed160 mm > Spindle front nose STN ISO 702/III ֖ B6Bore52 mm Internal taperMORSE 6 Max. torque/limiting speed1000/40 Nm/min. > -1 Carriages Cross slide working travel250 mmTool slide working travel140 mm Max. tool size20 x 20 mm Traverse feed number38 Working range of longitudinal feeds0.025 - 3.2 mm.rev. > Working range of cross feeds0.12 - 1.6 mm.rev. > -1 Longitudinal rapid...
