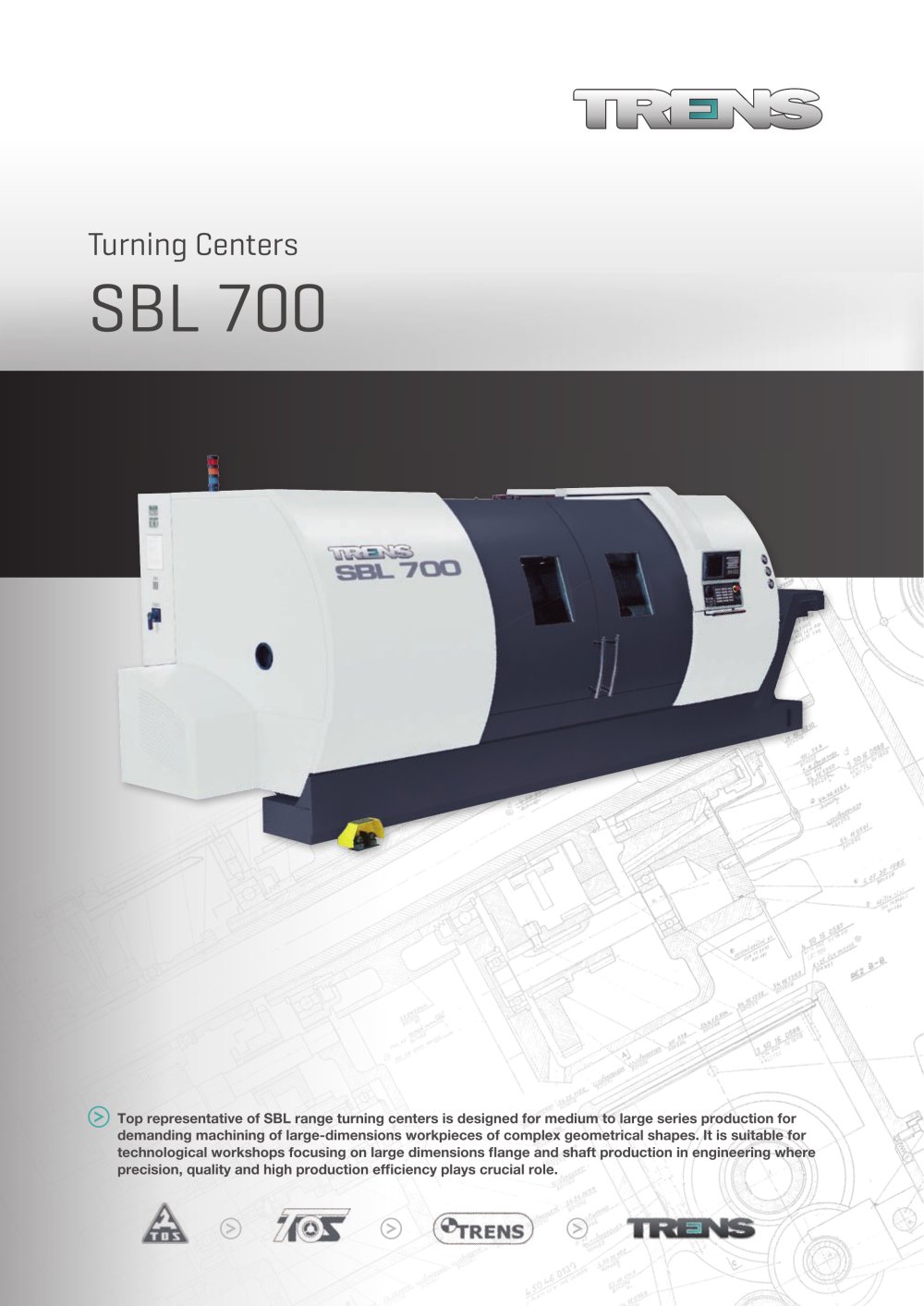

SBL 700
4Pages

TECHNICAL PARAMETRES Machine type Working range Max. swing over bed Max. turning diameter Max. turning length Max. bar diameter Max bar diameter with bar feeder reduction bushing Main spindle Spindle nose (DIN 55026) Spindle bore Spindle diameter in front bearing Max. spindle speed Max. spindle speed with reductor 1:4 Chuck diameters Spindle drive Main motor output S1 Main motor output S6 Torque (as per version) S1 Torque – 2nd gear S1 Carriages and drives X-os Cross slide feed range Cross-slide rapid traverse Working travel Z-os Longitudinal slide feed range Longitudinal slide rapid traverse Working travel Turrets (VDI 50) 12-positional axial turret SAUTER No. of tool positions Tool shank diameter (according to DIN 69880) Max. tool cross-section 12-positional axial turret SAUTER with live tools* No. of tool positions No. of driven tool positions Tool shank diameter (according to DIN 69880) Coupling Max. tool cross-section Driven tools motor output Max. torque Max. RPM Tailstock Tailstock sleeve internal taper Tailstock sleeve travel Clamping force range Tailstock control Turning Centers MORSE 6 150 250–2400 manual/ tailstock tow Machine dimensions Height Width Length with chip pan/with chip conveyor to the right side* Weight Weight – version with tailstock Control systems SIEMENS 840D SolutionLine + ShopTurn FANUC 0iTD + Manual Guide i * optional execution TRENS SK, a.s. | Súvoz 1 | 911 32 Trenčín | Slovakia Tel.: +421 32 7412 111 | trens@trens.sk | www.trens.sk Top representative of SBL range turning centers is designed for medium to large series production for demanding machining of large-dimensions workpieces of complex geometrical shapes. It is suitable for technological workshops focusing on large dimensions flange and shaft production in engineering where precision, quality and high production efficiency play

Turning Centers Turning Centers MAIN ADVANTAGES • High precision and productive machining of simple as well as complex shape workpieces • Stable cutting process with high repeatable accuracy of machining • Remote diagnostics and data management • Modular concept of the machine allows configuration tailored to the customer´s individual requirements Control system SIEMENS 840D, software ShopTurn Drives Simodrive with energy recovery Vector controlled asynchronous motor for main spindle drive 37 kW Direct angle and rotation measuring through magnetic disc sensor integrated in spindle • C-axis...

Turning Centers Turning Centers MAIN ADVANTAGES • High precision and productive machining of simple as well as complex shape workpieces • Stable cutting process with high repeatable accuracy of machining • Remote diagnostics and data management • Modular concept of the machine allows configuration tailored to the customer´s individual requirements Control system SIEMENS 840D, software ShopTurn Drives Simodrive with energy recovery Vector controlled asynchronous motor for main spindle drive 37 kW Direct angle and rotation measuring through magnetic disc sensor integrated in spindle • C-axis...

TECHNICAL PARAMETRES Machine type Working range Max. swing over bed Max. turning diameter Max. turning length Max. bar diameter Max bar diameter with bar feeder reduction bushing Main spindle Spindle nose (DIN 55026) Spindle bore Spindle diameter in front bearing Max. spindle speed Max. spindle speed with reductor 1:4 Chuck diameters Spindle drive Main motor output S1 Main motor output S6 Torque (as per version) S1 Torque – 2nd gear S1 Carriages and drives X-os Cross slide feed range Cross-slide rapid traverse Working travel Z-os Longitudinal slide feed range Longitudinal slide rapid...
