Car lifts
9Pages

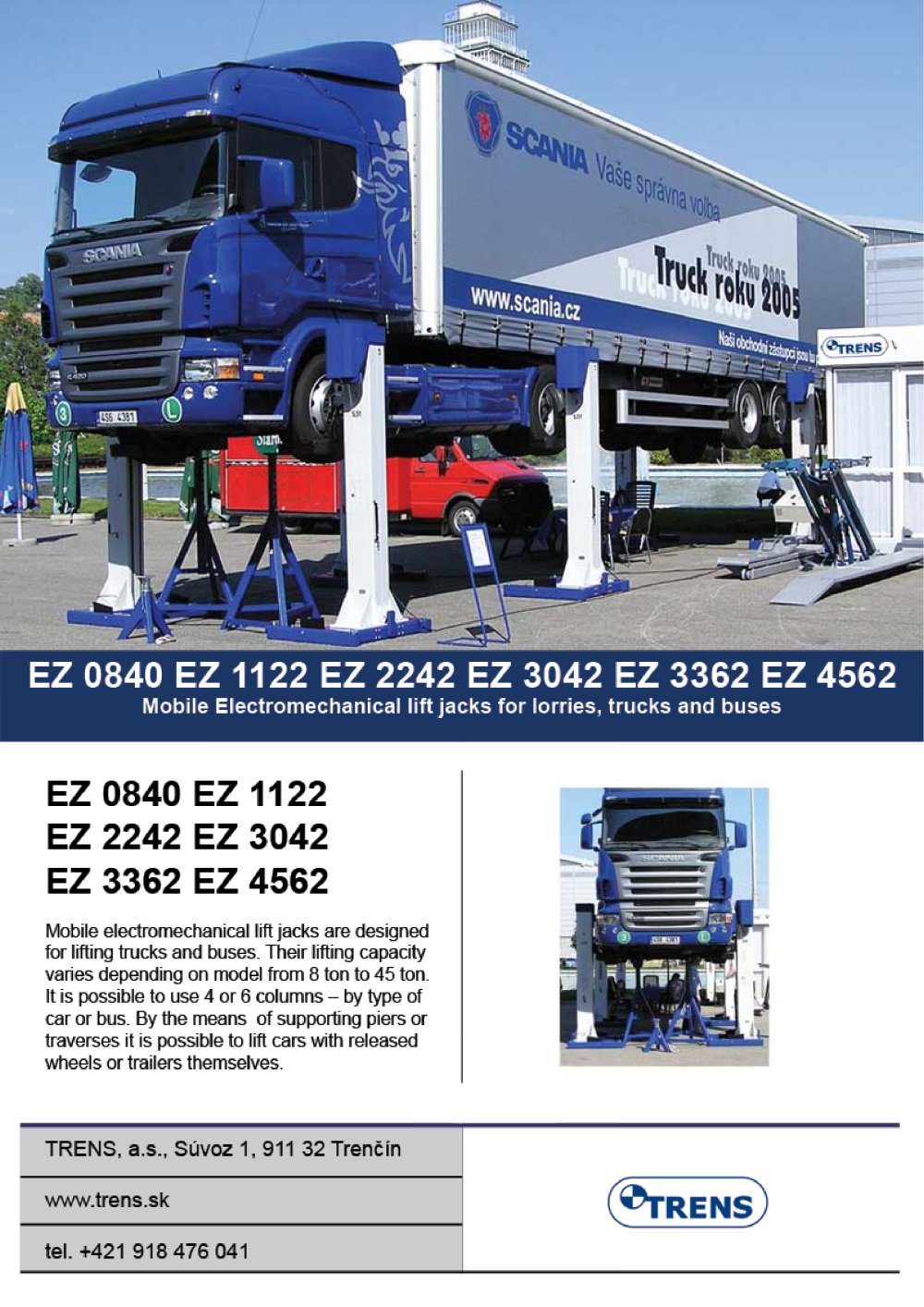

EZ 0840 EZ 1122 EZ 2242 EZ 3042 EZ 3362 EZ 4562 Mobile Electromechanical liftjacks for lorries, trucks and buses EZ 0840 EZ 1122 EZ 2242 EZ 3042 EZ 3362 EZ 4562 Mobile electramechanical liftjacks are designed for lifting trucks and buses. Their lifting capacity varies dpend ing on model from 8 ton to 45 ton. It is possible to use 4 or 6 columns - by type of car or bus. By the means of supporting piers or traverses it is possible to Irft cars with released wheels or trailers themselves. TRENS, a.s., Svoz 1,911 32 Trenc黮n www.trens.sk tel. +421 918 476 041

TOP 20 TOP 20M Single Column Electromechanical Lifts TOP 20 The single column electromechanical jack TOP 2D lifts personal cars and vans. It is used for maintenance service and repairs of maximum loading capacity 2 ton Lift has extensible, rotary arms (short, long). TOP 20M is mobile version of TOP 20 so it saves even more space in garage. TRENS, a.s., Svoz 1, 911 32 Trencn www.trens.sk (^TRENS) tel. +421 918 476 041

Technical parameters are informative only (^TRENS)

TOP 25, TOP 30, TOP 35 Dual Column Singlemotor Electromechanical Lift Jack TOP 25, TOP 30, TOP 35 The two column electromechanical jack TOP 25, TOP 30, TOP 35 lifts personal cars and vans. It's used for maintenance service and repairs for maximum loading capacity 2,5; 3,0; 3,5 ton. Lift has extensible, rotary arms ( short, long). TRENS, a.s., Svoz 1,911 32 Trencn www.1rens.sk (^TRENS) tel. +421 918 476 041

TOP 25 TOP 30, TOP 35 Technical Data TOP 25 TOP 30 TOP 35 Max.lifting capacty 2 500 kg 3 000 kg 3 500 kg Max. uplift 1 800 mm 1 800 mm 1 800 mm Min. uplift 120 mm 130 mm 130 mm Drive through height 45 mm 50 mm 50 mm Lifting time 45 s 47 s 47 s Height 2 674 mm 2 685 mm 2 685 mm Width 3 100 mm 3 190 mm 3190 mm Lenght 1 024 mm 1 158 mm 1 158 mm System voltage 3 PEN 230/400 V, TN-C 50 Hz Control voltage 230 V, 50 Hz Input power 3kW Rating IP 40/20 Weight (NETTO) 650 kg 900 kg 1 050 kg (j^TRENs)

TOP 350 - 2M APMS TOP 50 - 2M APMS Dual Column Dualmotor Electromechanical Lift Jack TOP 350 - 2M APMS TOP 50 - 2M APMS The two column electromechanical jack (with two electromotors) TOP 3502M APMS, TOP 50-2M APMS lifts passanger cars and vans. It is used for maintenance service and repairs for maximum loading capacity of 3,5* or 5 ton* Lift has extensible, rotary arms (short, long) *depending on model TRENS, a.s., Svoz 1,911 32 Trencn www.trens.sk tel. +421 918 476 041

2M APM TOP - 350/2M-Apnu Max.lifting capacity Max. uplift Min. uplift Drive through width Lifting time Height Width TOP 350 -2M APMS 3 500 kg 1 800 mm 85 mm 2300-2500 mm 45 s 2 653 mm 3500-3700 mm System voltage 3 PEN 230/400 V, TN-C 50 Hz Control panel voltage 230 V, 50 Hz Input power 2x3 kW Rating IP 40/20 Weight (NETTO) 850 kg 1150 kg (j^TRENs)
