TeguflexÒ C

Product catalog summary

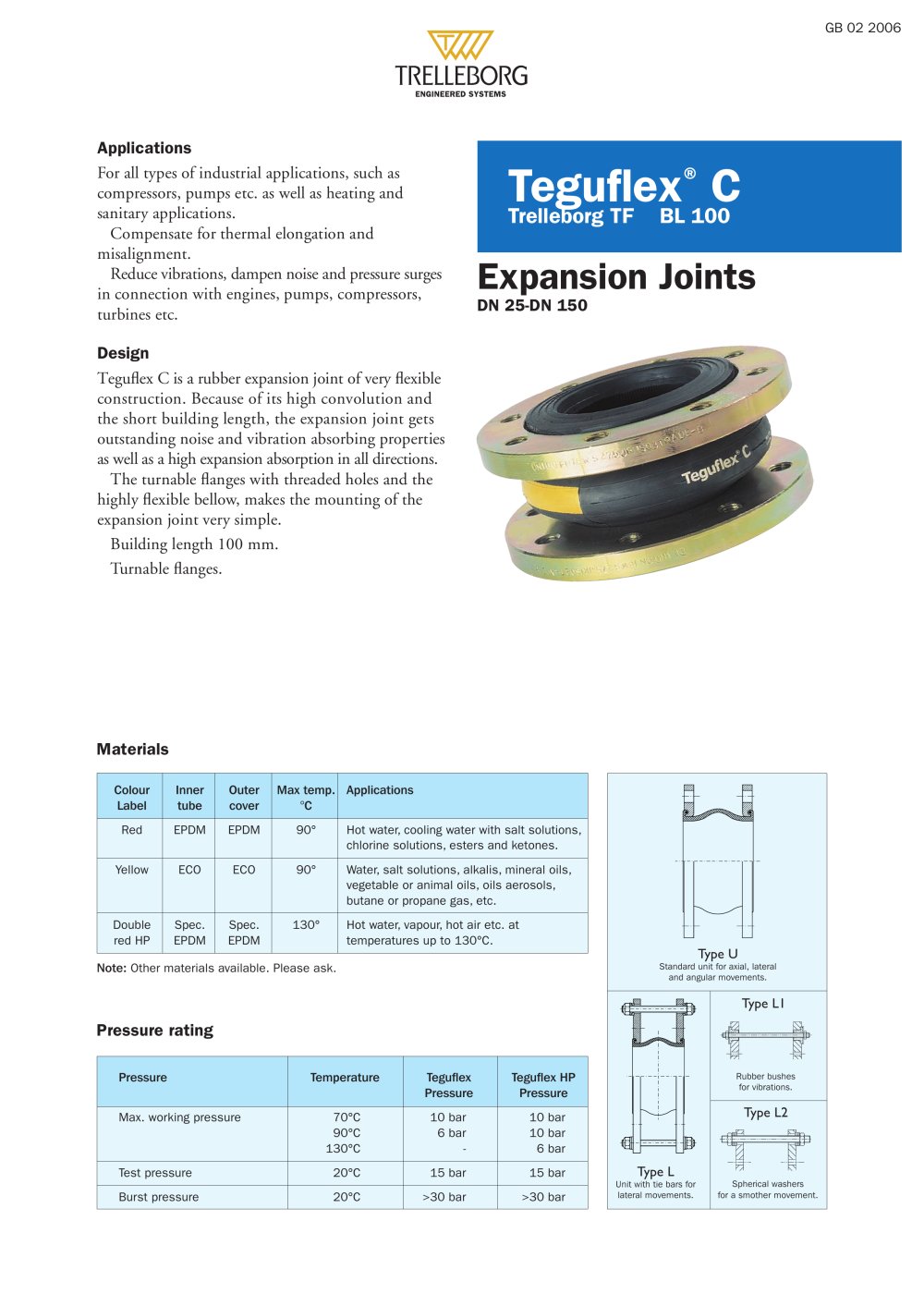

Overview: The document provides technical specifications and details for Teguflex® C expansion joints, manufactured by Trelleborg. These joints are designed for various industrial applications, including compressors, pumps, and heating systems, to compensate for thermal elongation, reduce vibrations, and dampen noise.

Specifications:

Size Range: DN 25-DN 150
Materials: Available in different material combinations such as EPDM and ECO for inner tubes and covers, suitable for various applications like hot water, cooling water, and oils.
Temperature and Pressure Ratings: Maximum temperature ranges from 90°C to 130°C depending on the material. Maximum working pressure is 10 bar at 70°C, reducing to 6 bar at 90°C for standard Teguflex, and 10 bar at 130°C for Teguflex HP.

Design Features:

Highly flexible construction with high convolution and short building length for excellent noise and vibration absorption.
Turnable flanges with threaded holes for easy installation.
Available in different types (L, L1, L2, U) for various movement capabilities including axial, lateral, and angular movements.

Optional Equipment: Vacuum rings and flame guards are available for enhanced performance.

Flange Details: Standard flanges are yellow chromated steel, with options for stainless steel and hot-dipped galvanized. Flange measurements conform to DIN 2501 PN6/10/16 standards.

Applications: Suitable for industrial applications to manage thermal elongation, misalignment, and pressure surges, and to reduce vibrations and noise in engines, pumps, compressors, and turbines.

Contact Information: Trelleborg IESA, s.a., located in Izarra, Spain. Contact via phone, fax, or email for further inquiries.
