25mm Vandal Proof Panel Mounted Trackball Datasheet, Part No DS509177

Product catalog summary

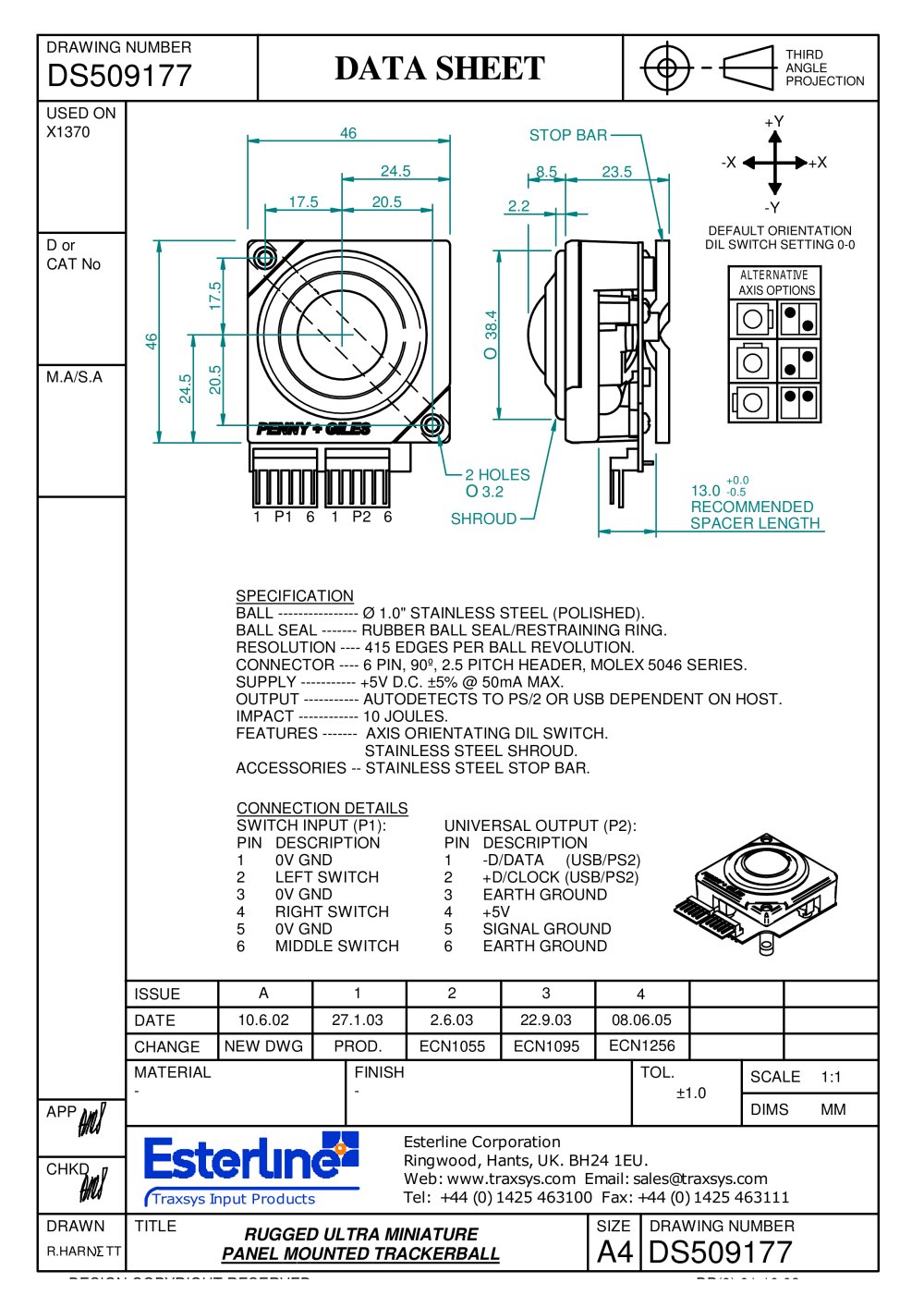

Title: Rugged Ultra Miniature Panel Mounted Trackerball
Specifications:
  • Ball: Ø 1.0" Stainless Steel (Polished)
  • Ball Seal: Rubber Ball Seal/Restraining Ring
  • Resolution: 415 edges per ball revolution
  • Connector: 6 pin, 90º, 2.5 pitch header, Molex 5046 series
  • Supply: +5V D.C. ±5% @ 50mA max
  • Output: Autodetects to PS/2 or USB dependent on host
  • Impact Resistance: 10 Joules
Features:
  • Axis orientating DIL switch
  • Stainless steel shroud
Accessories:
  • Stainless steel stop bar
Connection Details:
  • Switch Input (P1):
    • Pin 1: 0V GND
    • Pin 2: Left Switch
    • Pin 3: 0V GND
    • Pin 4: Right Switch
    • Pin 5: 0V GND
    • Pin 6: Middle Switch
  • Universal Output (P2):
    • Pin 1: -D/DATA (USB/PS2)
    • Pin 2: +D/CLOCK (USB/PS2)
    • Pin 3: Earth Ground
    • Pin 4: +5V
    • Pin 5: Signal Ground
    • Pin 6: Earth Ground
Design Details:
  • Default orientation with DIL switch setting 0-0
  • Recommended spacer length provided
See more
