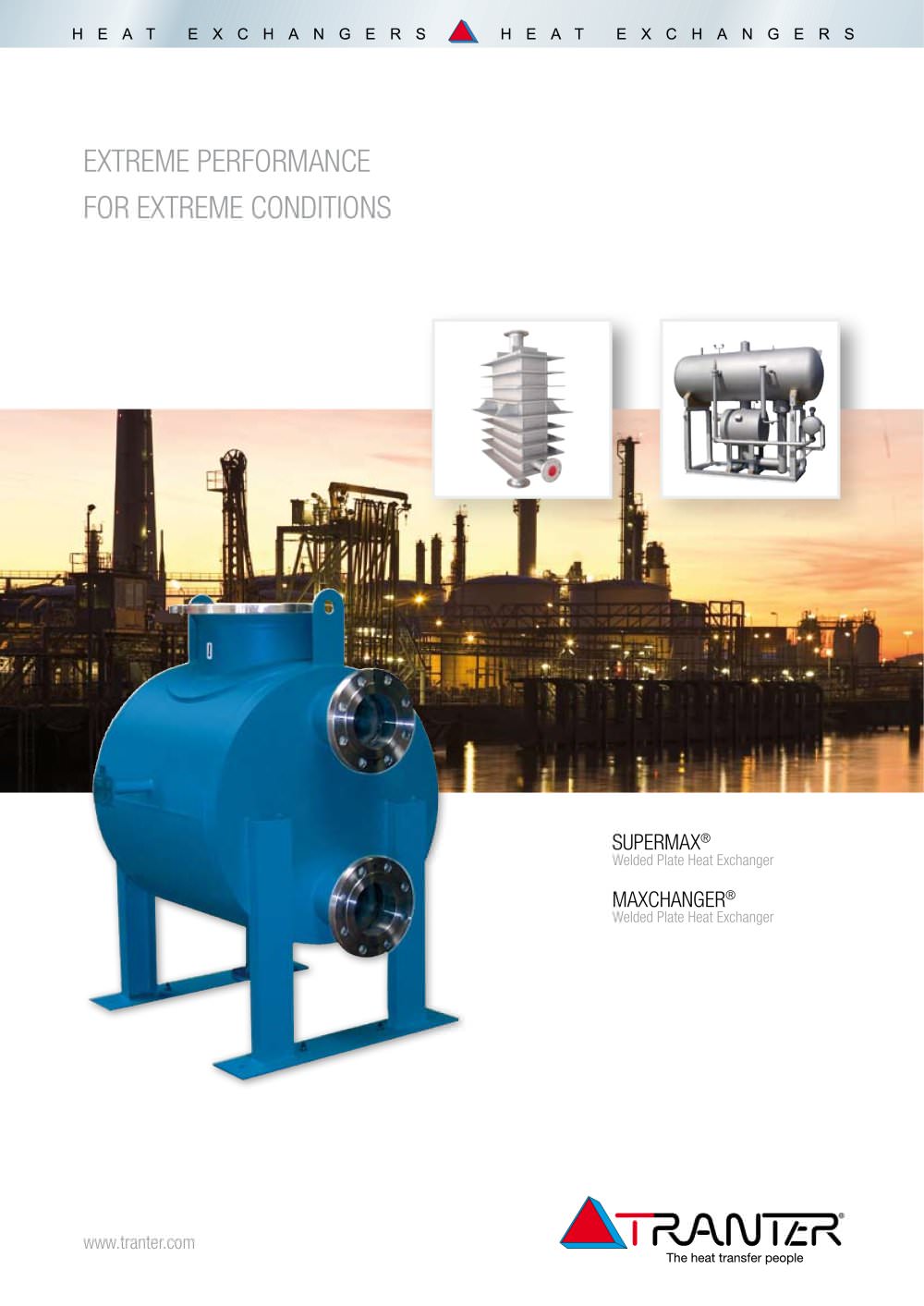

www.tranter.com EXTREME PERFORMANCE FOR EXTREME CONDITIONS SUPERMAX® Welded Plate Heat Exchanger MAXCHANGER® Welded Plate Heat Exchanger

Tranter’s SUPERMAX® and MAXCHANGER® Welded Plate Heat Exchangers require only a fraction of the space of the equivalent shell & tube exchangers. The compact plates also produce a high performance due to the turbulent flow created by the corrugated and dimpled plate patterns. This high efficiency allows Tranter to design units with a 1ºC temperature approach. Another benefit is the small hold-up volume which offers fast start-up times and close following of process changes. The advantages of the SUPERMAX® and MAXCHANGER® can be applied to challenging application involving liquids, gases,...

The Tranter SUPERMAX® shell & plate heat exchanger is designed for pressures of 100 bar and above, and temperatures up to 900°C. The SUPERMAX® can be installed horizontally or vertically depending on application and customer preference. We recommend horizontal installation for condensing /evaporating / boiling applications. The chevron-type plates are fabricated into a cassette by full automatic welding in the port hole (1). These cassettes are then stacked together and perimeter welded to each other (2), producing an accordion-like core which is highly tolerant to thermal expansion. The...

SUPERMAX® plates can be arranged to form multi passes on both the plate and shell sides. SUPERMAX® plates can be manufactured from Stainless Steel 316L, 254 SMO, Hastelloy and Titanium as standard; other alloys also available. The Shell can be fabricated from a differing material when only one side will be exposed to corrosive conditions. The SUPERMAX® with removable core provides full access to the plate pack for inspection and/or mechanical cleaning. Flow distribution on the shell side (red) and on the plate side (blue). OPW-72 OPW-71 OPW-42 DPW-100 SPW-100 SPW-75 MX-24 SPW-55 SPW-40...

Full-welded SPW-75 with Stainless Steel 316 plates and Carbon Steel shell (painted finish) for steam condensing in a district heating system. SPW-75 with two removable cores housed in one shell. Full Stainless Steel 316L construction. Removable core SPW-55 designed as a cooler for the Chemical Industry. Plates and shell manufactured in 254 SMO. SUPERMAX® SPW & DPW units are available in a variety of versions dependant on application. These are: • fully-welded with a centric plate pack • fully-welded with an eccentric plate pack (evaporators) • removable core for access to the shell side •...

Fully-welded OPW-42 with reinforced ribbing. Two-pass design in full Stainless Steel 316L construction. SUPERMAX® oblong plates are used with duties requiring long thermal lengths and / or small log mean temperatures (LMTD). They can be supplied in a variety of designs: • fully welded with reinforced ribs • fully welded core with pressure plates and frame • removable core with access to plate pack OPW-42 Fully-welded Stainless Steel 316L core with Carbon Steel pressure plates. Hot and Cold fluids will only come into contact with Stainless Steel 316 parts so ideal for corrosive media. Carbon...

Tranter Pressko designs and builds complete skids for the refrigeration industry. The skids include the SUPERMAX® heat exchanger and all ancillary parts. Refrigeration Systems & Applications Two SPW-55 R507 evaporators in parallel with separator. Skid for a Climate Testing Laboratory supplied to the Automotive Industry. SPW-55 Ammonia evaporator with separator. Skid for cooling machinery in the Plastics Industry. MAXCHANGER® Welded Plate Heat Exchangers provide a high heat transfer rate in a very compact space. They are designed for challenging applications involving liquids, gases, steam...

www.tranter.com Europe Tranter Pressko GmbH Artern, Germany Tel: +49 34 66 740 160 Fax: +49 34 66 740 168 E-mail: info@se.tranter.com, pressko@de.tranter.com North & South America Tranter, Inc. Wichita Falls, TX USA Tel: +1 940 723 7125 Fax: +1 940 723 5131 E-mail: sales@tranter.com Middle East/Africa/Asia Tranter India Pvt. Ltd. Pune, India Tel: +91 2137 392300 Fax: +91 2137 392354 E-mail: sales@in.tranter.com Tranter has been supplying all-welded products since 1993. The welded manufacturing facilities are located in America (USA), Asia (India) and Europe (Germany). All factories are ISO...
