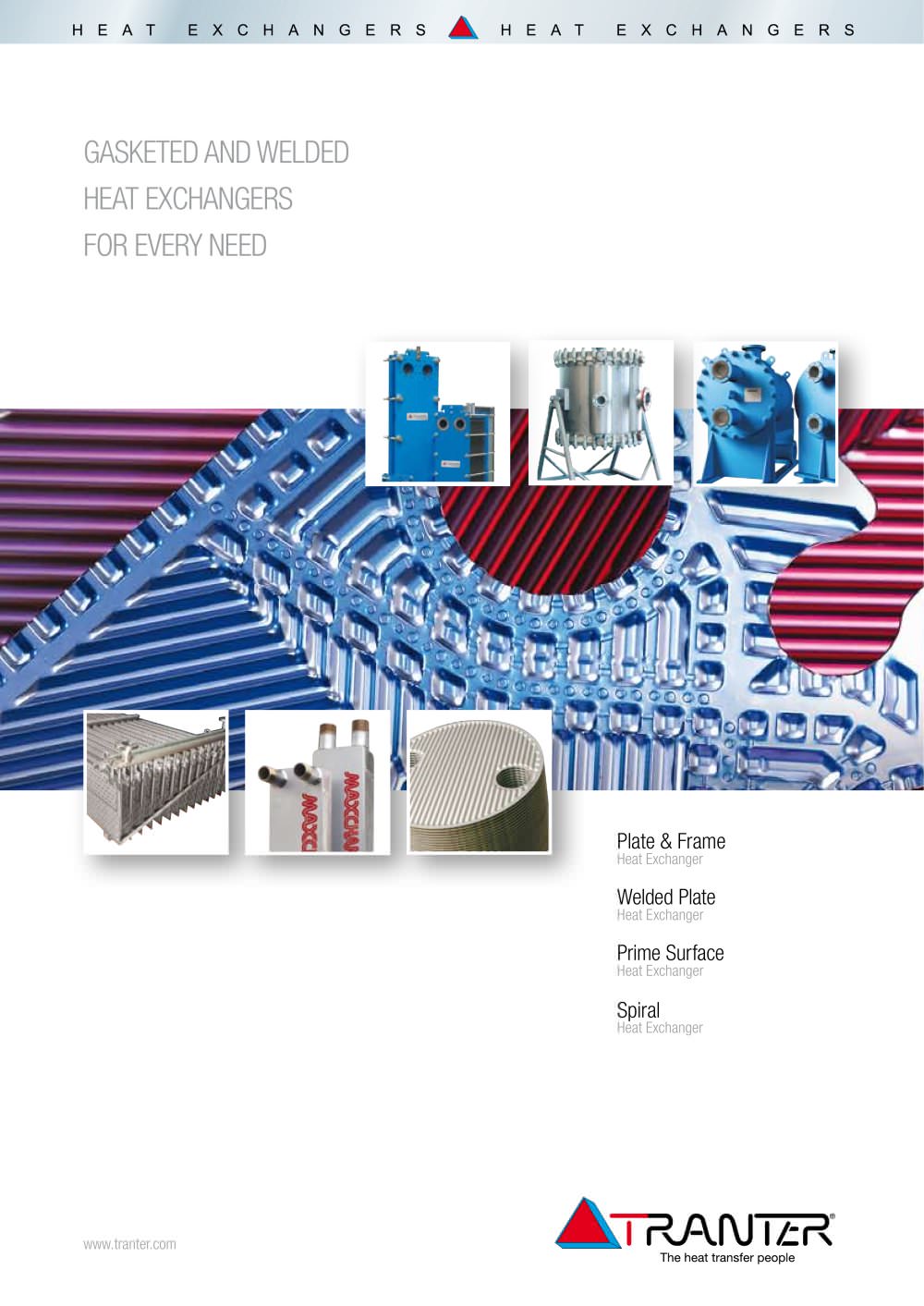

Plate & Frame Heat Exchanger Welded Plate Heat Exchanger Prime Surface Heat Exchanger Spiral Heat Exchanger www.tranter.com GASKETED AND WELDED HEAT EXCHANGERS FOR EVERY NEED

Gasketed Plate Heat Exchangers Tranter provides the world’s largest range of Plate Heat Exchangers (PHEs) for a variety of applications. The PHEs are built on a module-based concept and are designed to provide maximum efficiency in transferring heat from one liquid to another, or from steam to liquid. Frames, plates and connections can be combined to form a number of different exchanger types. By using different types of plates, with different characteristics, the heat exchangers can be adapted to a wide variety of applications. The benefit of the gasketed plate heat exchanger is that it...

GC and GL Plates Symmetrical plates for regular use. Different plate patterns allow for optimisation of thermal transfer or pressure drop. An obtuse angle (high-theta plate) gives high resistance and an acute angle (low-theta plate) a low pressure drop. GX Ultraflex Plates The plates are available with a herringbone pattern and either an acute or obtuse angle, making it possible to achieve six channel combinations. Ultraflex allows asymmetrical designs, with the primary and secondary circuits designed for heat transfer efficiency. MS= Medium-theta, same direction LS= Low -theta, same...

GF Wide Gap Plates Plates with wide channels for fibre- and particle-rich fluids. The plate pattern is optimised for cooling applications to give high thermal efficiency even with asymmetrical flows. GW Semi Welded Plates With a sealed channel for ammonia and other fluids.The plate pattern is optimised for cooling applications to give high thermal efficiency even with asymmetrical flows. GD Double Wall Plates Two plates laser-welded together for optimal safety. For applications such as the pharmaceutical industry, food industry, district heating, cooling of transformer oil etc., where it is...

Maxflow: No real limitation* Max work pressure: 100 bar and above Temp. range: -195°C to +900°C Connections: DN25 – DN700 Weld neck, flange or threaded * No upper limitation as elements can be connected in parallel within the unit. SUPERMAX® All-welded plate heat exchangers for high performance in industrial applications. Can be manufactured from dissimilar materials when only one side will be exposed to corrosive conditions. Welded Heat Exchangers The specifications may be changed without prior notice. Please contact us for specific details. MAXCHANGER® Compact and versatile all-welded...

Plateco il® Prime surface/immersion heat exchanger. Constructed from two metal sheets forming a series of passages through which heating or cooling media** flows. Available in over 300 sizes and in a variety of designed solutions. **Water, freon, ammonia, calcium or sodium brine. Econocoil® A light duty heat exchanger for a wide range of heating and cooling applications. Can be custom designed in a variety of shapes like this bank offering a low pressure drop. Maxflow: No real limitation* Max work pressure: 18 bar Temp. range: -140°C to +185°C standard execution * No upper limitation as...

Welded Heat Exchangers Compact heat exchangers for extreme temperatures, pressures and special designs that exceed gasket limitations. They offer high performance, small sizes, and minimal maintenance. The exchangers can handle liquids, gases, and two-phase mixtures at very high pressures and at low and high temperatures. They are manufactured to meet customer needs for the highest quality and efficiency. The large number of dimpled contact points in heat exchangers such as Maxchanger and Econocoil provide maximum pressure resistance and heat transfer. The welded, sealed channels reduce the...
