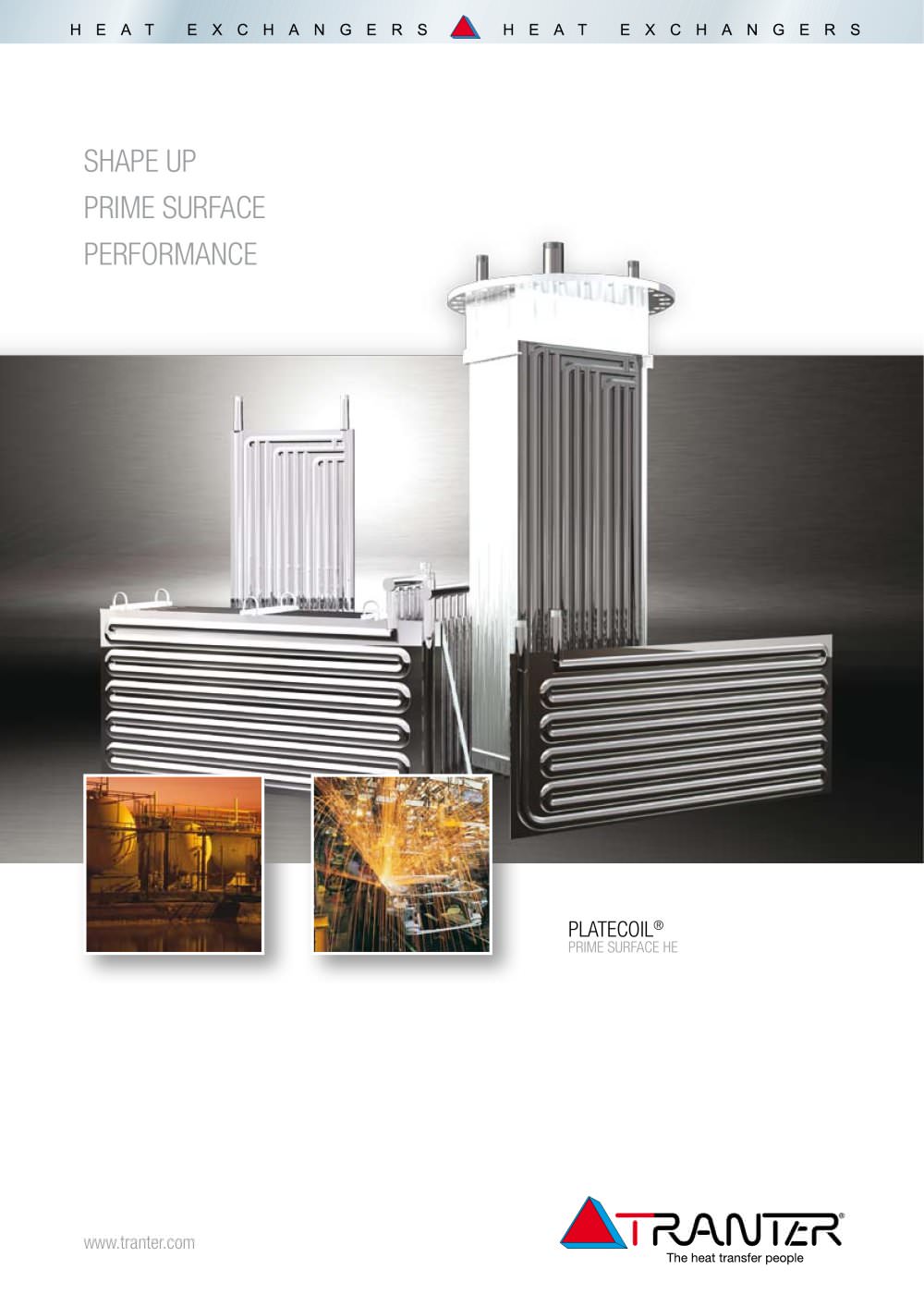

PLATECOIL® PRIME SURFACE HE www.tranter.com SHAPE UP PRIME SURFACE PERFORMANCE

Engineering Shapes PLATECOIL® Efficiency PLATECOIL® Prime Surface Heat Exchangers combine flexibility and functionality to deliver more efficient, economical and uniform heating and cooling to any application. Backed by ISO 9001-certified design and manufacturing processes, these highly versatile HEs adhere to the highest standards for design, manufacture and testing in the industry. And with success stories spanning 60-plus years, PLATECOIL versatility finds its way into new applications and industries each year. Tranter is the prime surface engineering specialist. Our designers, engineers...

The PLATECOIL Advantage Essentially two die-formed sheets welded together, PLATECOIL panels comprise a series of passages through which a heating or cooling media flows. Highly uniform heating or cooling enables PLATECOIL panels and banks to improve efficiency and energy economy. Additionally, easy access to panels and robust cleaning surfaces reduce maintenance burdens. Processors worldwide have used PLATECOIL to: • Eliminate sparging for reduced water and steam consumption • Capture waste energy from moist, wet flue gases at temperatures as low as 67°C (150°F) • Recycle low-grade heat...

Tangent bends in a single-embossed panel…try that with dimple sheet. Two families of PLATECOIL circuitry: Multi-Zone and Serpentine. PLATECOIL® Performance Specifications Low-Maintenance Finishes • 2B finish (except for weld marks) • Electropolished • Mechanical polished • Passivated • Paint • Galvanized • Zinc metallized Shaping The Future Of Direct Heat Transfer Consider all the factors—flow rate, flow balance, heat transfer coefficient, durability—PLATECOIL is engineered and crafted for faster start-ups, constant temperatures, better control and longer service life. Specify PLATECOIL,...

The Right Circuitry for Your Application Three styles of Multi-Zone and two styles of Serpentine flow configurations ensure that you get the right combination of flow rate and heat transfer rate. With more than 300 sizes, widths ranging from 305 mm to 1090 mm (12 in. to 43 in.) and lengths spanning 585 mm to 3630 mm (23 in. to 143 in.), no job is too big or too small for PLATECOIL to handle. Where there’s a need for high internal flow rates, low pressure drop or rugged use, large-pass, heavy-gauge PLATECOIL units fill the bill. Exclusive Multi-Zone Circuitry Tranter specially designs...

Manufacturing for Quality, Testing for Integrity With Tranter’s strict, ISO 9001-certified quality standards, PLATECOIL structural integrity and durability are assured. Highly experienced personnel carry out all welding on modern equipment. Finished panels can be ASME Code-stamped. Stainless steel units can be annealed or stress relieved to extend service life. Before shipping, all units receive an air-underwater leak test, which is more sensitive than hydrostatic testing at the same pressure. All ASME Code-stamped units receive a hydrostatic test, while panels manufactured for...

Heat Recovery Banks PLATECOIL heat recovery banks in wet gas and liquid streams cut industry fuel bills significantly. At the same time, they knock out troublesome vapor plumes and reduce thermal load on effluent plants. Wet flue gas streams as low as 66°C (150°F) are a candidate for big savings from PLATECOIL heating banks. Corrosive gases are not a problem, thanks to special ECONOCOIL hydraulically expanded titanium sheet construction. Clamp-On Vessel Upgrades Specially configured curved PLATECOIL panels are an economical means of converting existing unjacketed vessels to heated reactors,...

Rotary and Fluidized Bed Dryers PLATECOIL panels can be fabricated as shells or banks for direct contact or convection drying of solid materials such as biomass, feedstuffs or food byproducts, confections and many other solid materials. Their outstanding heat transfer rates, combined with use of heated baffles and paddles, improve drying efficiency compared to other technologies. Heavy Wall Vessels and Platens Single-embossed units can be furnished highly flat on one side, with no weld marks or discolorations, as heavy vessel walls or direct-contact platens. They can be MIG spot-welded or...

Pipe Cooling or Pump Inlet Cooling Pipe sections, chutes and inlet housings can be fabricated from or jacketed with PLATECOIL to cool liquids or gases. In this way, PLATECOIL can protect process equipment, rapidly halt reactions or stop flashing and phase changes. Sulfur Recovery Flue sections, chutes and housings in gasification processes can be fabricated from or jacketed with steam-heated ECONOCOIL to prevent condensation and solidification of sulfur before quenching. In this way, ECONOCOIL reduces maintenance burdens and improves throughput. Water Bath Vaporizers, Lyophilizers and...

PC-6-0209 650742 ENG 2010-09 At the forefront of heat exchanger technology for more than 70 years Tranter top quality, high-performance, proprietary products are on the job in demanding industrial and commercial installations around the world. Backed by our comprehensive experience and worldwide presence, Tranter offers you exceptional system performance, applications assistance and local service. Tranter is close to its customers, with subsidiary companies, agents, distributors and representatives located worldwide. Contact us for a qualified discussion of your needs. www.tranter.com...
