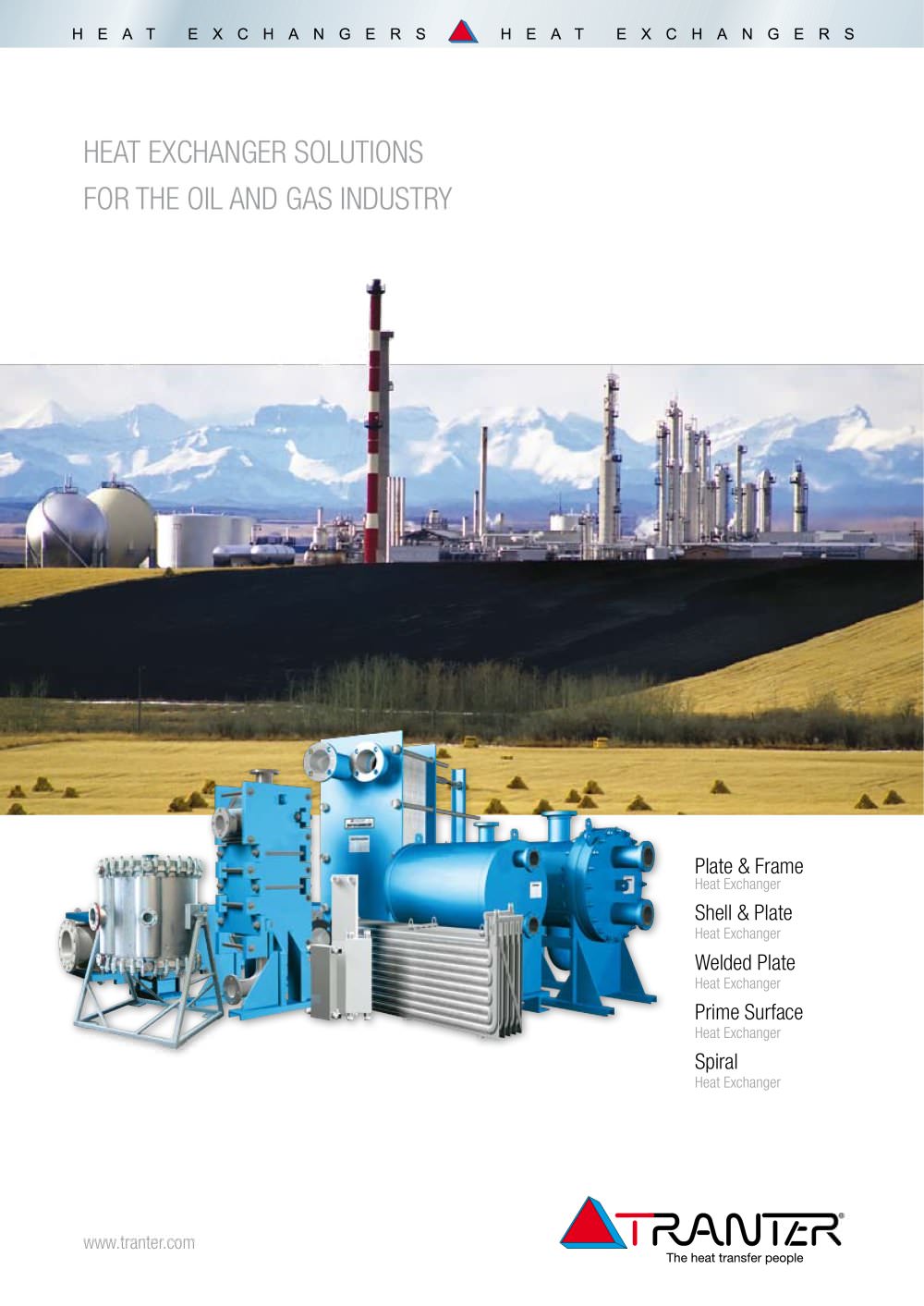

www.tranter.com Plate & Frame Heat Exchanger Shell & Plate Heat Exchanger Welded Plate Heat Exchanger Prime Surface Heat Exchanger Spiral Heat Exchanger heat exchanger solutions for the oil and gas industry

Oil & gas upstream and downstream processing places special demands on heat exchangers. Such equipment must not only withstand corrosive media, two-phase mixtures, extreme pressures and temperatures, but also be extremely compact. Outstanding Performance The Tranter group has established itself as a world leader in the design, development and manufacturing of heat transfer equipment for the oil & gas industry. Tranter offers a wide range of gasketed, all-welded and spiral heat exchangers, proven to meet the toughest customer requirements. Our patented plate technology enables us to tailor thermal...

Codes & Standards Tranter’s products can solve almost any heat transfer problem in a variety of applications, which is why our customers include major oil companies and EPC contractors worldwide. Customers in the oil & gas industry trust us because of our flexibility and high level of expertise in material selection, thermal design and process knowledge. Tranter fabricates in accordance with all major design codes, specifically ASME Section VIII Division 1 with U stamp, EN 13445, PED 97/23/EC with CE stamp and API 662 / ISO 15547. Our Document Control Department produces documents in accordance...

Raw crude oil contains many contaminants that have to be removed before it can be further processed, particularly water and salts. Depending on the process used for dehydration / desalting, plate heat exchangers can be utilised for many different services, such as: • HE-1 – Crude oil interchanger - Desalted / dry crude oil coming from the desalter is interchanged with untreated crude oil from the multiphase separator, thus reducing the heat input to the crude oil inlet heater. • HE-2 – Crude oil heater - Heating of the wet crude oil to the final desalting temperature by using hot water or steam....

The gas desulphurisation or sweetening process is the removal of acidic components from a gas stream, i.e. CO2, H2S, CO and CS2, and is carried out by absorption in a continuous process with regenerable solvents. • HE-1 – Lean / Rich amine interchanger – The rich amine containing acidic components is heated by lean amine coming from the absorber. Tranter´s gasketed Ultraflex plate provides high shear stress on each side, thus minimises plate fouling. • HE-2 – Lean amine trim cooler – Before entering the absorber, the lean amine needs to be cooled to the appropriate absorption temperature. A gasketed...

Gas is compressed in several stages and cooled in interstage coolers. Condensed liquids are separated from the gas stream in flash drums after interstage cooling, thus liquid is constantly removed from the gas prior to each compression stage. Depending on the dryness requirements of the gas it may have to be dehydrated prior to the final discharge compression stage. • HE 1,2,3 – Interstage coolers - Shell & plate heat exchangers used as interstage coolers provide excellent reliability due to the high resistance to pressure / thermal fatigue. The short flow path and the large cross section also...

Tranter heat exchangers are not only tailor-made in terms of thermal performance, but also in terms of mechanical design. A wide range of possible connections are available and vary from standard studded connections to Heat Exchangers for Demanding Tasks PLAT ECOIL PRIME SURFACE HEAT EXCHANGERS Max work pressure Temp. range Connections 28 bar -195°C to +260°C DN25-DN200 Up to ANSI 8” GASKETED PLAT E HEAT EXCHANGERS Max work pressure Temp. range Connections 25 bar -40°C to +180°C DN25-DN500 Up to ANSI 20” SPIRAL HEAT EXCHANGERS Max work pressure Temp. range Connections 60 bar -100°C to +450°C...

Tranter top quality, high-performance, proprietary products are on the job in demanding industrial and commercial installations around the world. Backed by our comprehensive experience and worldwide presence, Tranter offers you exceptional system performance, applications assistance and local service. Tranter is close to its customers, with subsidiary companies, agents, distributors and representatives located worldwide. Contact us for a qualified discussion of your needs. At the forefront of heat exchanger technology for more than 70 years 95136-9550 ENG 2010-10 Europe Tranter International...
