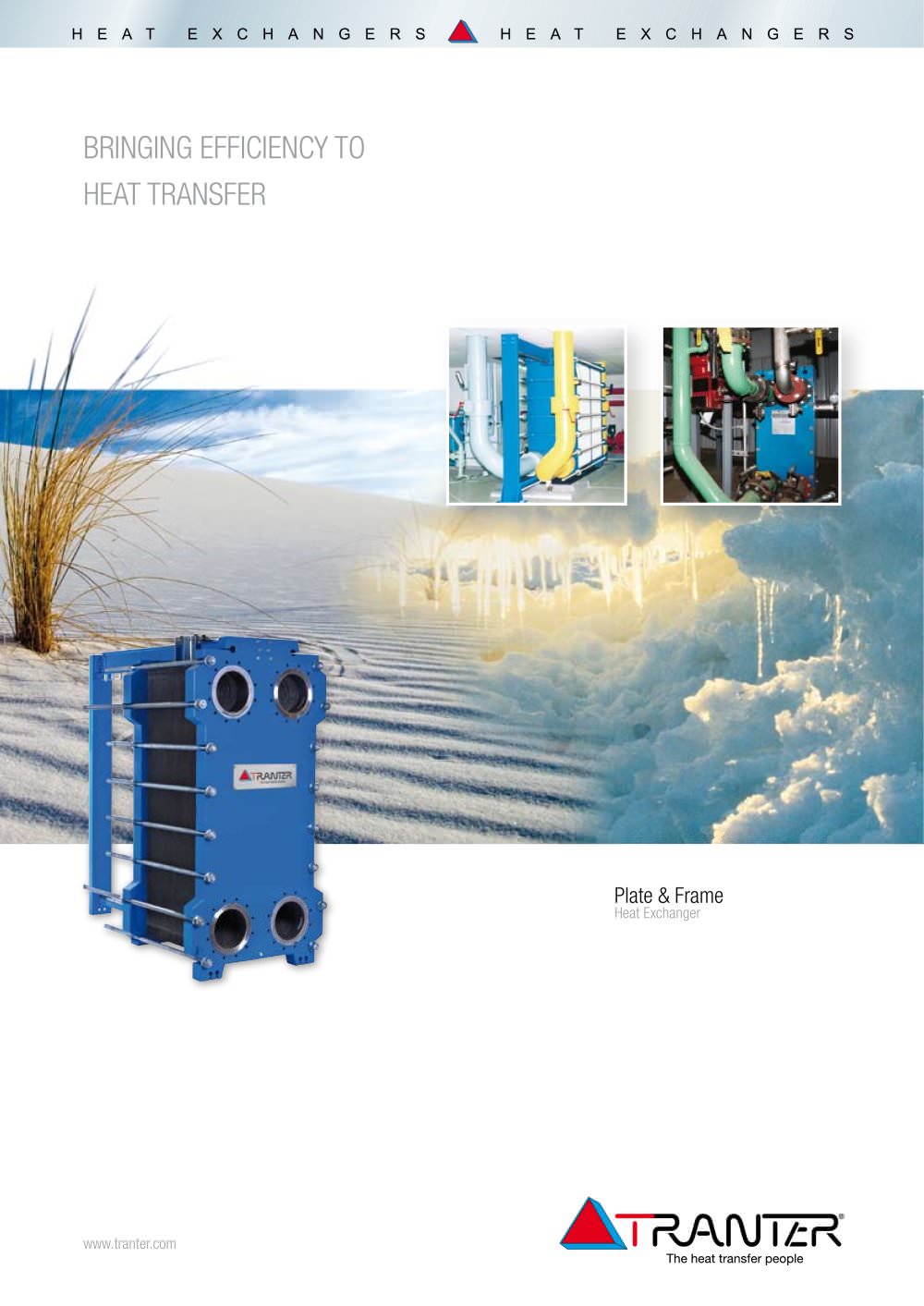

Bringing Efficiency To Heat Transfer Plate & Frame Heat Exchanger www.tranter.com

Flow ranges: 0-4600m3/h Max working pressure: 25 bar Temp. range: -40°C to +180°C Connections: DN25- DN500 Weld neck, flange or threaded. Specifications may be changed without prior notice. Please contact us for specific details. Gasketed Plate Heat Exchangers Tranter provides the world’s largest range of Plate Heat Exchangers (PHEs) for a variety of applications. The PHEs are built on a module-based concept and are designed to provide maximum efficiency in transferring heat from one liquid to another, or from steam to liquid. Frames, plates and connections can be combined to form a number...

Ultraflex Plates (GX) Especially when flows are unbalanced and the allowable pressure drops are reasonably close, Tranter utilises its GX Series plate designs. Tranter’s corrugated GX plates have a gasket along the periphery. There are also gaskets around two of the four ports, which means that only one of the two fluids has access to the heating surface. The next plate has gaskets around the other two ports. Thus, a channel system is created where two fluids pass through every other channel respectively. Leakage between the two fluids is not possible thanks to double gaskets around the...

GC Series Plates GCP Plates Applications where low pressure drop is required or unit sizing is limited by pressure drop (low theta) are a perfect match for the GCP Series plate. Tranter’s GCP Series plates are designed with a conventional herringbone pattern, with the gasket groove in the bottom plane. The plate design uses parallel flow direction, in contrast to the GX Series, which features diagonal flow across the plate. Due to the deeper draw depth and the pattern in the flow distribution area, the GCP Series plates yield a significantly lower pressure drop than the corresponding GX...

GFP Wide-Gap Plates Defeat Clogging and Downtime A plate & frame heat exchanger utilising Wide-Gap plates economically recovers heat from hard-to-handle waste streams in a variety of industries, including pulp & paper, sugar processing, alcohol production, grain processing, chemicals, textiles and ethanol distilling. Plates are available in five models: Model Design Pressure Connection Size bar DN GFP-057 9 200 GFP-097 9 200 GFP-187 9 200 GFP145 9 300 GFP-205 9 300 Plate Materials Standard materials are EN 1.4301 (304SS) and EN 1.4401 (316SS). Custom requirements for Hastelloy C-276, 254SMO...

A Closer Look At Double-Wall and GW Series Plates Double-wall Plates (GD) The double-wall plate heat exchanger is intended for use where the two fluids on each side of the plates should not mix—due to possible contamination or an undesirable reaction. If a leak through one of the plates or around one of the gaskets should occur, the fluid is vented to the outside of the heat exchanger before any intermixing can occur. The leak is immediately evident even before disassembly of the heat exchanger. Some popular industries and applications that utilise GD Series plates include: • Pharmaceutical...

Gasket Choice Glued Gaskets Tranter plate gaskets are specially moulded elastomers to assure superior performance. Numerous gasket materials—NBR, EPDM, Viton, Neoprene, Butyl, Hypalon, Teflon-encapsulated NBR and others—are available to match your process conditions, to maximum operating temperatures of 180°C Gaskets on GX Series plates are located in the neutral axis. Gaskets on all other plates are located in tapered grooves. Clip-On Gaskets Consider the Tranter Clip-On glueless gasket system wherever regular cleaning is necessary or aggressive fluids shorten gasket life. The unique...

670042 ENG 2010-09 At the forefront of heat exchanger technology for more than 70 years Tranter top quality, high-performance, proprietary products are on the job in demanding industrial and commercial installations around the world. Backed by our comprehensive experience and worldwide presence, Tranter offers you exceptional system performance, applications assistance and local service. Tranter is close to its customers, with subsidiary companies, agents, distributors and representatives located worldwide. Contact us for a qualified discussion of your needs. Europe Tranter International AB...
