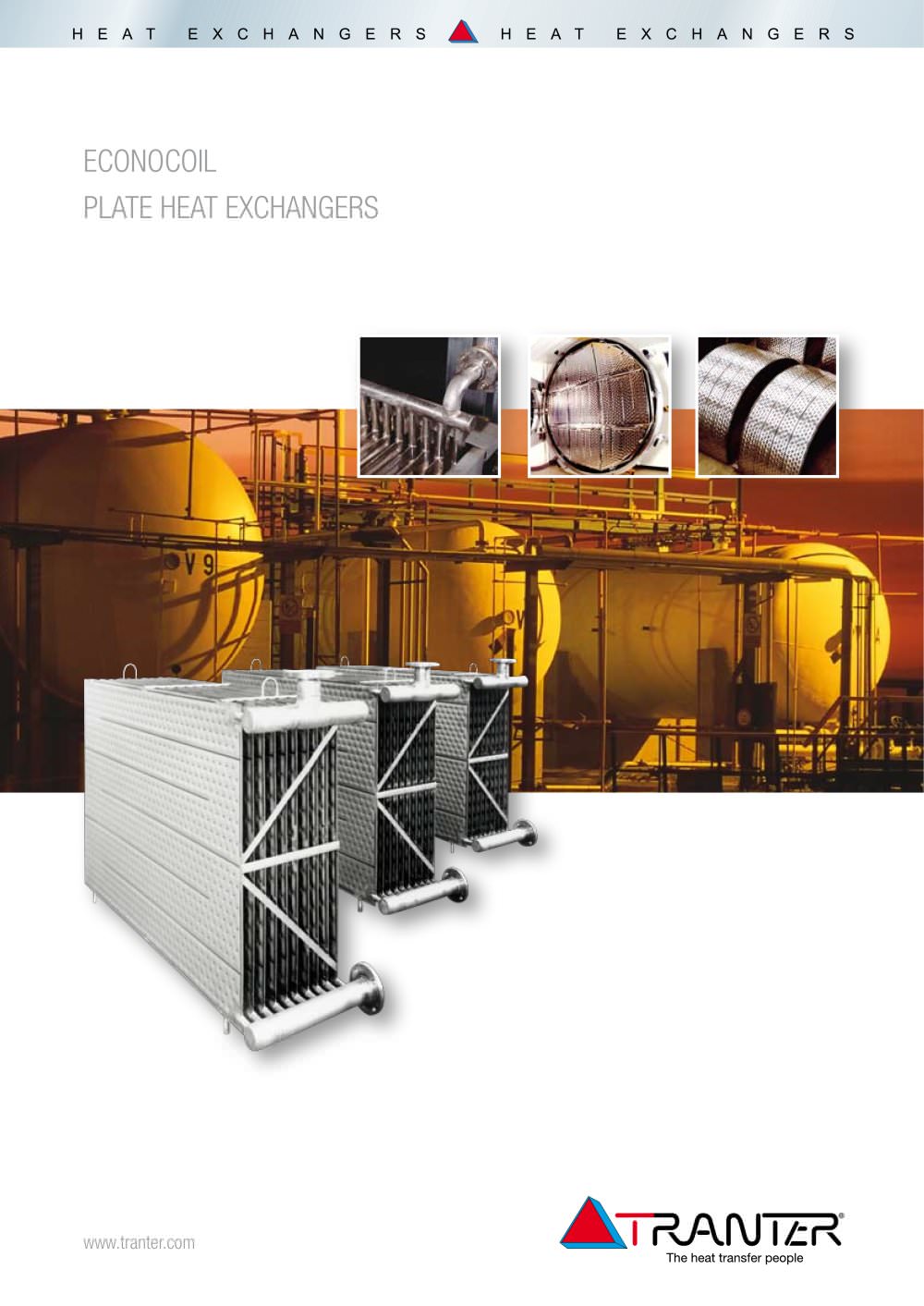

Econocoil Prime Surface Heat Exchangers
8Pages

www.tranter.com econocoil plate heat exchangers

Tranter Econocoil is a very efficient and versatile light duty plate type heat exchanger. Its unique construction enables high heat transfer efficiency for heating and cooling which can be applied to a wide range of applications. Units are widely used in the plating, metal finishing, chemical processing, pulp & paper, waste treatment, textiles, pharmaceutical and food & beverage industries. Econocoil is fabricated from two sheets of metal using a fully computerised welding machine which uses electric roll spot resistance welding. The plate is then hydraulically inflated forming a variety of...

One of the huge benefits of Econocoil is that they can produced in a large range of custom made variants when needed for special applications. It can be as simple as altering connection location and length to creating irregular shaped curved Econocoil to fit tank cone end. We can weld several plates together to form banks which can be used for large heat exchanger duties and provide accessories to assist with installation and maintenance. Applications Cylinder for tank sidewall. Econocoil Drum Warmer are produced in a standard size with a varying number of sections. Have in the past been...

Tranter can manufacture Econocoil in a huge variety of shapes and sizes to suit all purposes. We have five basic styles to fit specific applications with all styles being available in both double and single embossed forms in numerous configurations. All units are supplied with BSPT Male Threaded Connections as standard. However we can provide a variety of connection options. For Styles EC70, EC80 & EC90 connection size is dependant on the plate dimensions. Standard Econocoil Styles Tranter Style EC50 Style EC50 Econocoil is largely used for heating and cooling while immersed in tanks. Its...

Smaller Econocoil units are made up of two zones as shown above in the standard styles. However when the width is extended to 750mm and above additional ‘zones’ are seam welded into the plates to direct the flow of fluid to all areas of the Econocoil thus helping maintain a higher level of heat transfer. Unit Zoning Tranter Style EC50 Style EC50 Econocoil is largely used for heating and cooling while immersed in tanks. Its design is most suitable for liquid to liquid duties such as heating oil with hot water. Easy lift handles can be attached with hangers available to make installation...

With each Econocoil, Tranter can offer a range of options and accessories to assist Installation and improve performance. For Econocoil to be used in tanks we offer handles and hangers so they will be correctly positioned and can easily inserted and removed. For clamp on applications we offer Konduct No.1 Heat Transfer Cement to assist with heat transfer. We supply lugs with tie bolts to securely fasten the Econocoil to surface sides. If required, Tranter can provide job specific drawings & material certificates with other design and construction documentation on request. One of the strong...

For design needs and conditions which exceed our Econocoil specifications Tranter manufactures Platecoil. While Econocoil is hydraulically formed, Platecoil is die formed. One or both sheets are pressed to form embossings (single or double) which are then seam welded together along the embossings forming clearly defined tubular channels. Tranter Platecoil Platecoi l Design Pressures Design Temperatures ASME Code Stamping Can be manufactured from Carbon Steel up to 28 bar up to 350 ºC Econocoil and Platecoil Both heat exchanger types are available in standard styles 50, 60, 70, 80 & 90 with...

Tranter top quality, high-performance, proprietary products are on the job in demanding industrial and commercial installations around the world. Backed by our comprehensive experience and worldwide presence, Tranter offers you exceptional system performance, applications assistance and local service. Tranter is close to its customers, with subsidiary companies, agents, distributors and representatives located worldwide. Contact us for a qualified discussion of your needs. At the forefront of heat exchanger technology for more than 70 years 95144-9570 ENG 2010-10 www.tranter.com Europe...
