This document serves as an operation and maintenance manual for the dynafor® MWX and MWX-TR models by TRACTEL. It provides multilingual instructions, including French, English, Dutch, and German, detailing specifications, safety instructions, and operational guidelines for the equipment.
The dynafor® MWX is intended for lifting operations with stringent safety requirements. It measures force in units such as kN, daN, lbs, tons, and kg. It is not suitable for use in explosive environments or for lifting people without a thorough risk assessment and safety precautions.
- Read the manual thoroughly before using the equipment.
- Ensure users can meet safety requirements.
- Do not exceed the maximum operating load.
- Protect the equipment from impacts and unauthorized modifications.
- TRACTEL is not liable for unauthorized modifications.
- Conduct a risk analysis when using additional equipment.
The equipment should be used solely for its intended purpose, applying pure traction forces. It must be shielded from shocks, particularly to the display, and should not be used if it appears damaged.
Available options include a portable printer, PC interface, radio remote readout, and infrared remote control, offering functions like load display, standby, tare, and peak hold.
The manual stresses the importance of following safety instructions and operational guidelines to ensure the safe and effective use of the dynafor® MWX equipment. It also notes the availability of optional accessories to enhance functionality.
The document details unit selection options (kg, metric tonne, short ton, pounds, decaNewton, kiloNewton) and measurement frequency settings (from 4 times per second to every 8 seconds). It includes an automatic stop feature that can activate after 20 seconds.
Instructions for connecting devices to DYNAFOR® equipment emphasize the need for risk analysis and appropriate safety measures by operators or installers.
The dynamometer uses three 1.5 V AA/LR6 batteries, providing up to 350 hours of autonomy. The infrared receiver consumes power even when off, so batteries should be removed during storage.
The manual covers advanced functions like peak hold and tare, and describes the device's components, including the serial number, capacity, infrared receiver, and various indicators and buttons.
Users are advised against using the PC interface in radio mode and should manage batteries properly to prevent unnecessary power consumption.
The document describes key components such as the LCD display, battery housing, and control buttons (e.g., On/Off, Tare, Peak hold).
Catalog excerpts

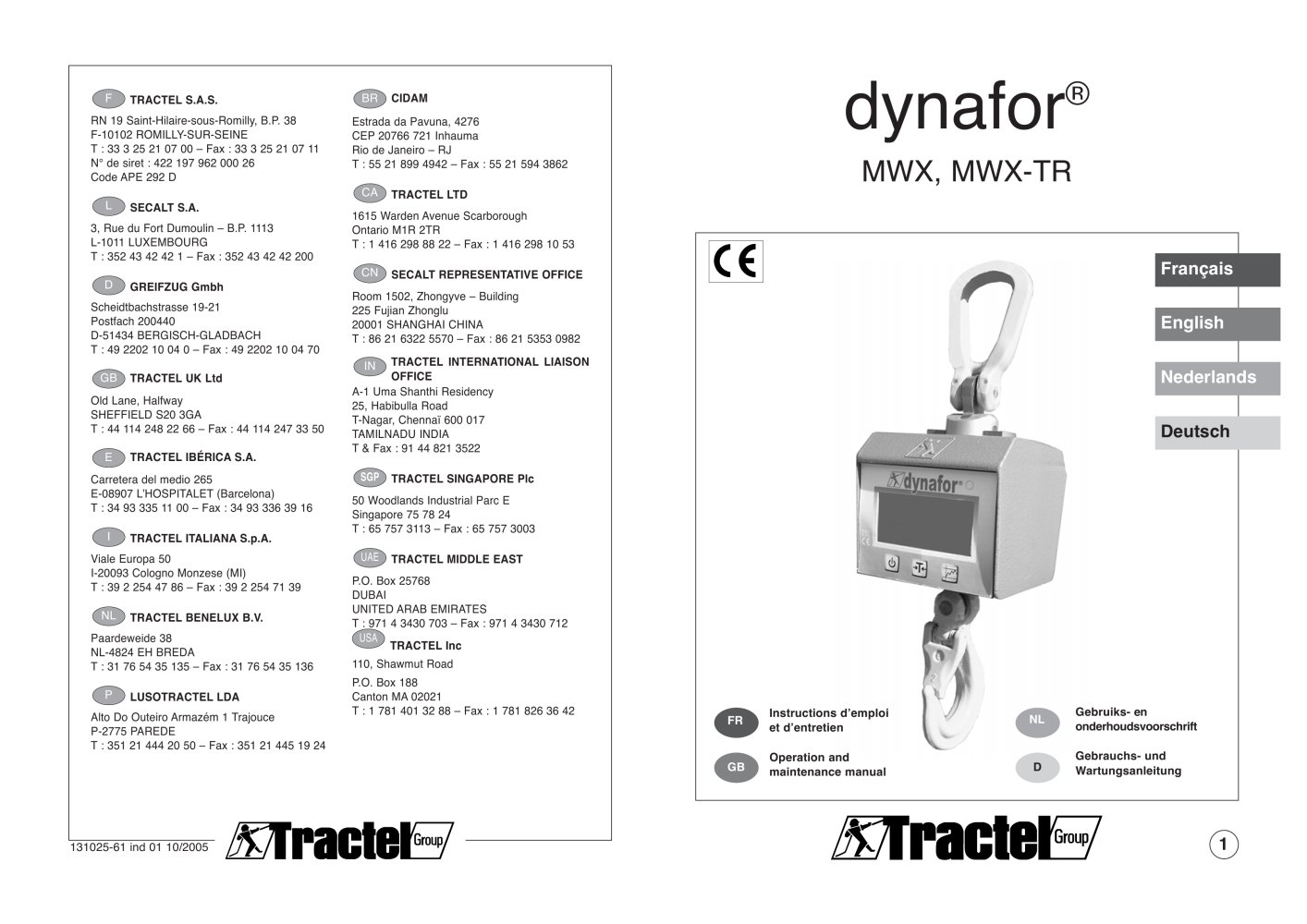

CIDAM Estrada da Pavuna, 4276 20766 721 Inhauma de Janeiro – RJ 21 899 4942 – Fax : 55 21 594 3862 TRACTEL LTD Warden Avenue Scarborough Ontario M1R 2TR 416 298 88 22 – Fax : 1 416 298 10 53 SECALT REPRESENTATIVE OFFICE 1502, Zhongyve – Building Fujian Zhonglu SHANGHAI CHINA 21 6322 5570 – Fax : 86 21 5353 0982 TRACTEL INTERNATIONAL LIAISON OFFICE Uma Shanthi Residency Habibulla Road Nagar, Chennaï 600 017 TAMILNADU INDIA Fax : 91 44 821 3522 TRACTEL SINGAPORE Plc Woodlands Industrial Parc E Singapore 75 78 24 757 3113 – Fax : 65 757 3003 TRACTEL MIDDLE EAST Box 25768 DUBAI UNITED ARAB EMIRATES 971 4 3430 703 – Fax : 971 4 3430 712 TRACTEL Inc Shawmut Road Box 188 Canton MA 02021 781 401 32 88 – Fax : 1 781 826 36 42 Instructions d’emploi et d’entretien Operation and maintenance manual Gebruiks- en onderhoudsvoorschrift Gebrauchs- und Wartungsanleitung Français English Nederlands Deutsch FR GB NL D dynafor® MWX, MWX-TR 1
