Product catalog summary
Overview: The poolCHEM Series is designed for commercial pool applications, featuring Good Laboratory Practices (GLP), automatic datalogging, and computer interfacing. It ensures compliance with health regulations by providing records of calibration and pool data. The series includes password protection to restrict access to qualified users only.
Company Background: TPS has been manufacturing instruments and sensors in Australia since 1968, with over 20 years of experience in swimming pool controllers. Their quality system is certified according to AS/NZS ISO 9001 standards.
Chlorine Management: TPS controllers with ORP readout monitor and control chlorine concentration, maintaining sanitary water conditions even under varying weather and usage conditions. They prevent the formation of chloramines, which cause eye irritation and odors.
Dosing Pumps: The use of peristaltic dosing pumps is recommended for reliability and longevity, as they prevent chemical contact with pump components. These pumps are self-priming and can handle moderate pressures.
Installation and Features: TPS controllers are easy to install with preset factory settings. They include shut-off and data alarms to prevent overdosing or system faults. The easyCHEM series features a Smart-Temp function for temperature-based dosing adjustments and a superchlorination function for shock treatment.
Timer and Customization: The easyCHEM models include a pool pump timer output with customizable summer and winter cycles. They assist with filter backwashing and have a digital readout for ORP, pH, and temperature.
Product Variants: The easyCHEM series offers various models with features like proportional feeders, digital timers, and automatic controllers for ORP and pH. The poolCHEM series includes advanced features like simultaneous readouts, memory for stored readings, and remote monitoring capabilities.
Accessories and Options: TPS provides all necessary sensors and accessories for installation and operation. Options include various injection tees and peristaltic pump spares.
Specifications:
  • Pumps: The easyCHEM series includes models with inbuilt peristaltic pumps with flow rates of 1.8 L/Hr and 6 L/Hr. The easyCHEM 330 & 660 models can be factory-set for different voltages.
  • Sensors: Various sensors are available for pH, ORP, salinity, TDS, and temperature measurements, with different cable lengths and compatibility with specific models.
  • Calibration Solutions: Includes pH buffers and ORP standards for calibration purposes.
  • Power Accessories: Includes power adaptors for different regions and control output cables.
Control Methods: The document outlines control methods for each model, including mains power control outputs, solenoid valves for CO2, and DC control outputs.
Display and Interface: The easyCHEM and poolCHEM series feature LCD displays with user-friendly menus. The RS232 Serial Interface allows connection to printers or computers for data logging and remote monitoring.
Environmental and Calibration: The units are designed to operate in various environmental conditions with automatic temperature compensation for accurate readings. Calibration is user-friendly with push-button operation.
Additional Features: The document highlights features such as memory storage for readings, automatic datalogging, and tough ABS enclosures for durability.
Contact Information: TPS Pty Ltd, located in Brisbane, Australia, provides contact details for further inquiries.
See more

Catalog excerpts

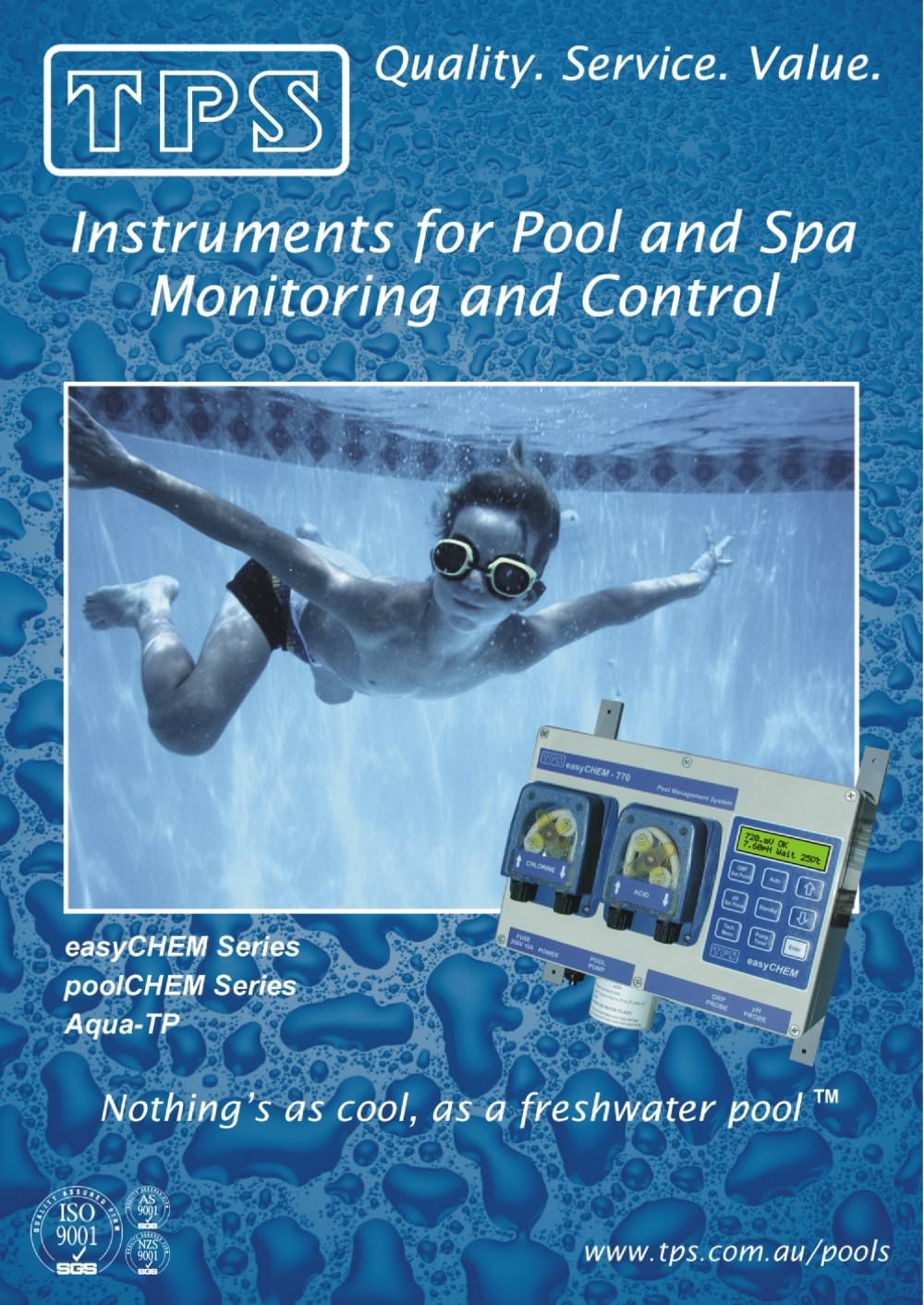

Pool Products easyCHEM Series, poolCHEM Series, Aqua-TP-2

TPS has been designing and manufacturing instruments and sensors in Australia since 1968. We have extensive experience in all types of instrumentation from precision laboratory equipment to industrial process control. This experience carries over to our swimming pool controllers, which we have been producing for over 20 years.At TPS, our aim is to provide you with the best quality, service and value for money and the TPS Quality System has been independanty certified in accordance with the AS/NZS ISO 9001 standard. Many people still believe (incorrectly) that salt water pools do not contain Chlorine....

 Open the catalog to page 2
Pool Products easyCHEM Series, poolCHEM Series, Aqua-TP-3

Proportional feeder for Chlorine, Acid or other chemicals.Very simple to operate. Pump rate can be set from 1 to 99 to fine-tune dose rate. Set to "00" to switch off, and "On" to pump continuously.Highly reliable peristaltic pump.Piggy-back power plug for pool pump, ensures feeder only operates when pool pump is on.Easy to install injection Tee. The ideal alternative to salt water chlorinators for those people who preferto swim in a fresh water pool. > Proportional feeder for Chlorine and Acid.Very simple to operate. Pump rate can be set from 1 to 99 to fine-tune dose rate. Set to "00" to switch...

 Open the catalog to page 3
Pool Products easyCHEM Series, poolCHEM Series, Aqua-TP-4

Automatic controller for ORP OR Acid in Swimming and Spa Pools. Inbuilt peristaltic pump makes installation a breeze.Digital timer output for pool pump, with automatic adjustment for Summer and Winter cycles.Digital readout of ORP or pH plus Temperature.Factory-supplied as ORP or pH, but can be re-configured by supplier (sensor must also be changed).Shutoff Alarm when dosing pump has run too long continuously. Stops an entire drum of chemical being dosed in case of an instrument or probe fault.Data Alarm in case reading goes outside normal levels. Safeguards against overdosing or underdosing...

 Open the catalog to page 4
Pool Products easyCHEM Series, poolCHEM Series, Aqua-TP-5

Automatic controller for ORP and pH in Swimming and Spa Pools.The easyCHEM 660 has 1 inbuilt peristaltic pump and 1 mains power control output.Some set-up examples include... > Inbuilt pump adds Chlorine and output controls CO valve. 2 Inbuilt pump adds Acid and output controls Salt Chlorinator or larger Chlorine dosing pump. Digital timer output for pool pump, with automatic adjustment for Summer and Winter cycles.Digital readout of ORP and pH plus Temperature.Shutoff Alarm when pump has run too long continuously.Data Alarm in case ORP or pH readings exceed normal levels. Super-chlorinate function....

 Open the catalog to page 5
Pool Products easyCHEM Series, poolCHEM Series, Aqua-TP-6

Automatic controller for ORP and pH in commercial Swimming and Spa Pools.The poolCHEM has 2 x 24V DC outputs. These would normally be used to control larger relays that switch dosing pumps, valves etc.The poolCHEM-1 has 1 x inbuilt pump and 1 x 24V DC output. You can choose which is assigned to control ORP and pH.The poolCHEM-2 has 2 x inbuilt pumps to control Chlorine and Acid.Advanced set-up features provides total flexibility for all installation situations.Simultaneous readout of ORP, pH, Temperature, Time, Set Points and StatusShutoff Alarm when pump has run too long continuously. Stops...

 Open the catalog to page 6
