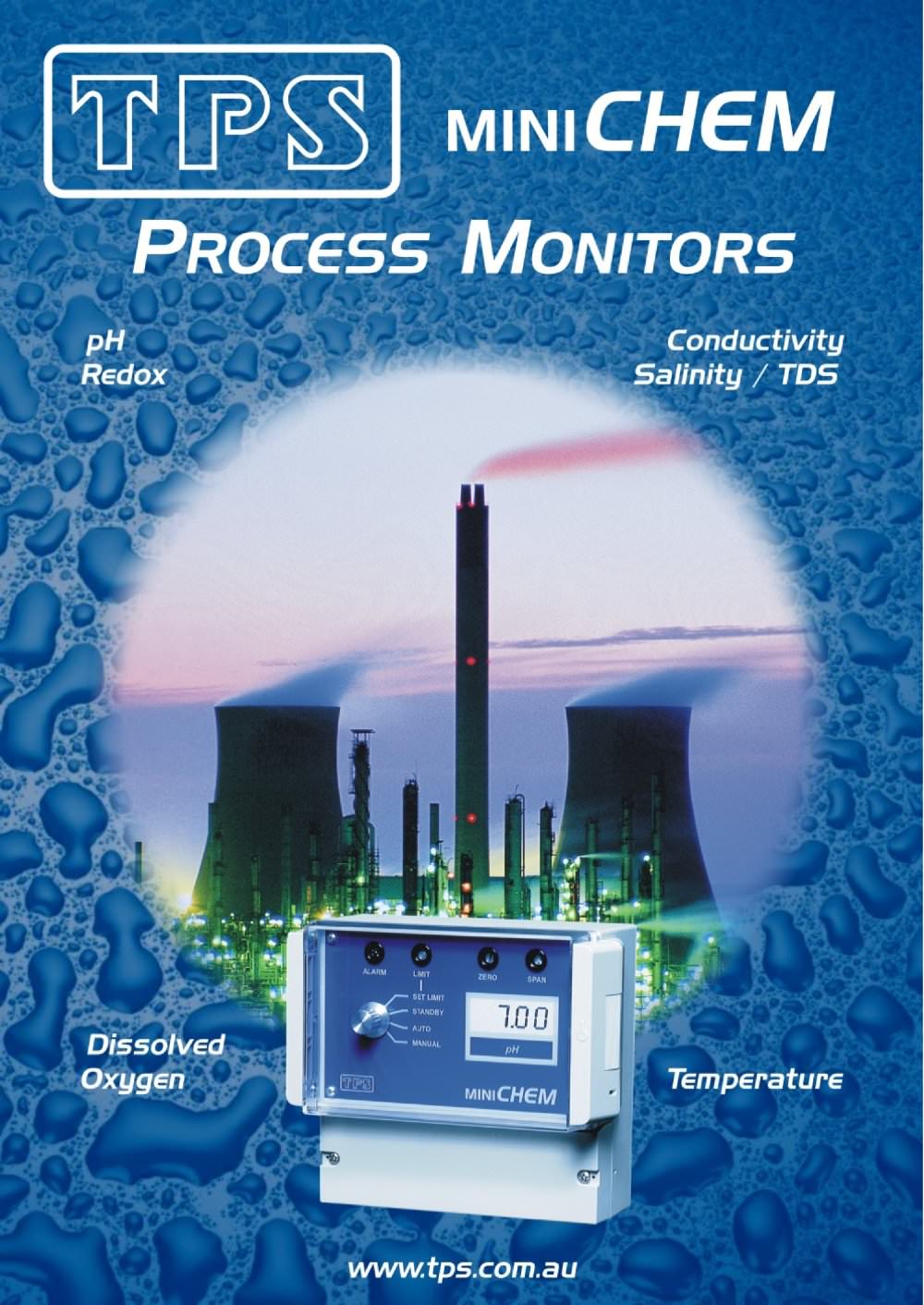

miniCHEM Series Process Monitors/Controllers

Product catalog summary

Overview: The document provides detailed technical specifications and operational guidelines for the MINICHEM series, a range of process monitors designed for various industrial applications such as pH, Redox, dissolved oxygen, conductivity, and salinity measurements. The series is manufactured by TPS Pty Ltd in Australia and adheres to AS/NZS ISO9001 standards.

Main Features:

Display and Controls: The MINICHEM series features a large, easy-to-read 12.5mm LCD display. It includes modes for automatic and manual control, with a visual alarm LED indicating when control limits are exceeded.
Outputs: Standard outputs include 4-20mA and 0-1V, with an optional 0-10V output. Relay outputs are rated to 2 amps at 240V AC, with adjustable hysteresis for control flexibility.
Enclosure: The units are housed in a polycarbonate enclosure, waterproof to IP65, eliminating the need for a separate cabinet.

Specifications:

pH Measurement: Range from 0 to 14.00 pH with a resolution of 0.01 pH and accuracy of +/-0.01 pH. Temperature compensation is automatic from 0 to 100°C.
Redox Measurement: Range from 0 to +1000 mV with a resolution of 1 mV and accuracy of +/-1 mV.
Temperature Measurement: Range from 0 to 199.9°C with a resolution of 0.1°C and accuracy of +/-0.1°C.
Conductivity and Salinity: Various ranges depending on sensor type (k=0.1, k=1.0, k=10), with high accuracy and automatic temperature compensation.

Installation and Options:

The MINICHEM series is easy to install with all controls accessible via a hinged, clear cover. Optional features include a second control relay, RS232 interface, and pulsed output.
Various sensor options are available, including dip-mounted and submersible assemblies, with extended cables and adaptors for specific applications.

Ordering Information: The document provides detailed ordering codes for different configurations and accessories, including sensors, power options, and additional components.
