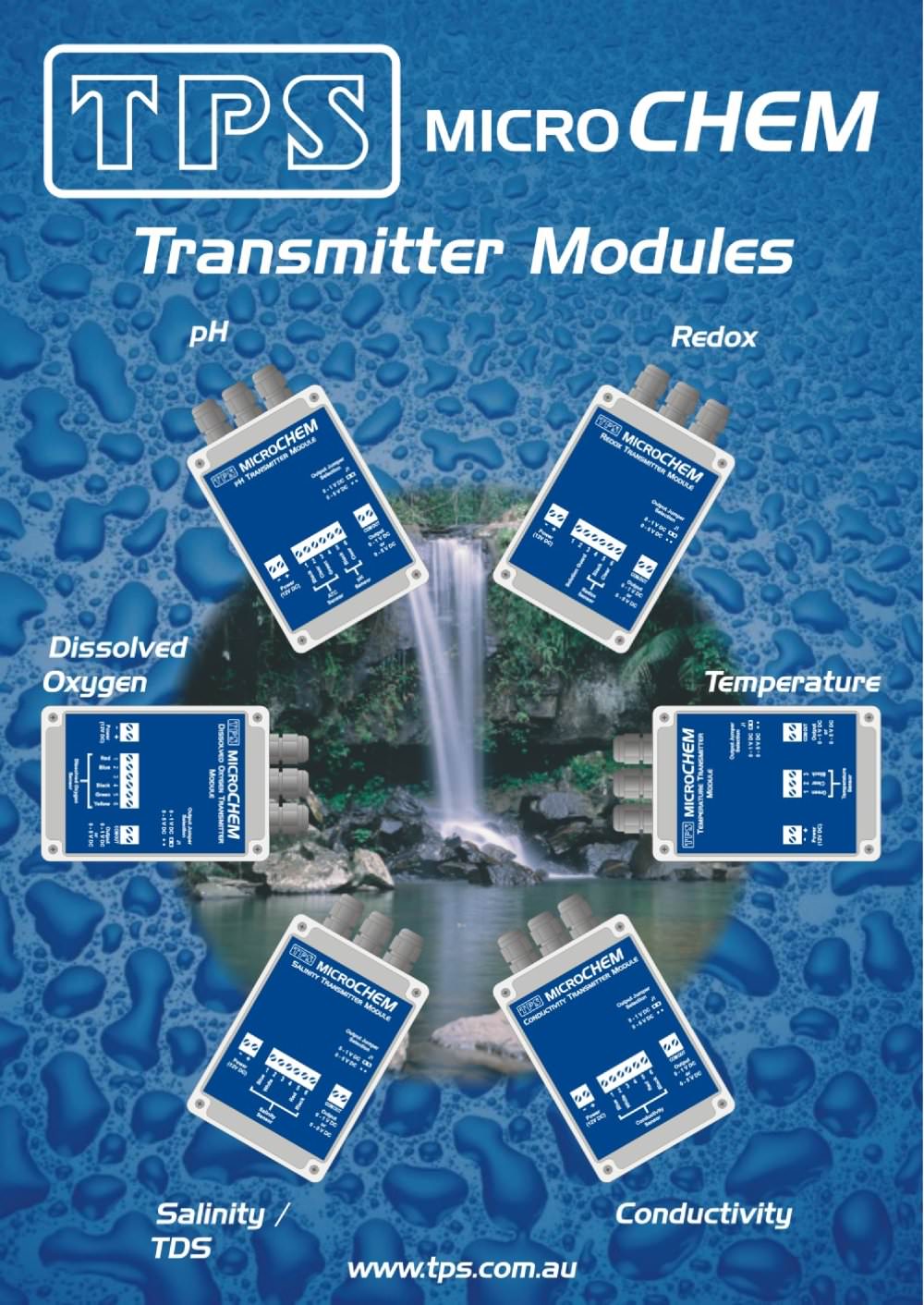

microCHEM Series Transmitter Modules

Product catalog summary

Overview: The document provides detailed specifications and ordering information for the microCHEM series, a range of water quality monitoring instruments designed for various industrial applications. These instruments are manufactured by TPS Pty Ltd in Australia and are compliant with AS/NZS ISO9001 standards.

Specifications:

Enclosure: Made of polycarbonate, waterproof to IP65, dimensions 125 x 85 x 56 mm, and mass approximately 250 g for the instrument only.
Outputs: Voltage outputs of 0 to 1 V DC and 0 to 5 V DC, with galvanic isolation for sensor inputs.
Power: Operates on 12 V DC with a current of approximately 10 mA.
Operating Environment: Temperature range from 0 to 45°C.

Instrument Features:

Designed for easy installation with waterproof cable glands for input and output cables.
Compatible with commercial dataloggers and PLC units.
Optional 420 ToolBox module for additional output flexibility, including 4-20 mA output and RS232 interface.

Kit Components: Each microCHEM kit includes various sensors and accessories, such as pH buffers, submersible assemblies, and handbooks. Specific kits are available for pH, temperature, Redox, dissolved oxygen, conductivity, and salinity measurements.

Performance Specifications:

pH Measurement: Range 0 to 14.00 pH, resolution 0.01 pH, accuracy +/-0.01 pH.
Redox Measurement: Range 0 to +1000 mV, resolution 1 mV, accuracy +/-1 mV.
Temperature Measurement: Range 0 to 199.9°C, resolution 0.1°C, accuracy +/-0.1°C.
Conductivity and Salinity: Various ranges depending on sensor type (k=0.1, k=1.0, k=10), with accuracy +/-0.2% of full scale.

Ordering Information: The document provides part numbers for ordering various components and kits, including sensors, cables, and adaptors.

Contact Information: TPS Pty Ltd is located in Brisbane, Australia, with contact details provided for phone, fax, email, and web.
