IBOX-103-2L2C-J4125

Product catalog summary

Overview: The document provides technical specifications for the IBOX-103-2L2C-J4125A and IBOX-103-2L2C-J4125B models, which are industrial PCs designed for various operating systems including Windows and Linux distributions. These models feature Intel® Celeron® J4125 processors and support multiple connectivity and expansion options.

Specifications: Both models are equipped with an Intel® Celeron® J4125 CPU, featuring 4 cores and 4 threads, with a burst frequency of 2.70 GHz and a base frequency of 2.00 GHz. They support up to 8GB of DDR4 RAM and have multiple storage options including M.2 and SATA slots.

I/O Interfaces: The devices offer a variety of I/O interfaces including multiple USB ports (USB 3.0 and USB 2.0), HDMI and VGA video outputs, audio inputs/outputs, and Ethernet ports. They also support RS232/RS485 communication interfaces and have external SIM card slots.

Power and Environmental Specifications: The units require a 12V DC power supply and are designed to operate in temperatures ranging from -10 to 50 °C. They are compliant with various safety and EMC standards.

Design and Build: The IBOX-103-2L2C models feature a full aluminum alloy structure for anti-interference, a fanless cooling system, and a cable-free design for enhanced vibration resistance. The layout is modular and scalable, allowing for various expansion options.

Expansion Capabilities: The devices include Mini-PCIe and M.2 slots for additional modules such as AI acceleration cards, 4G/5G modules, and WiFi modules. The expansion slots share signals, so simultaneous use of certain slots may be limited.

Optional Accessories: The document lists optional accessories such as different types of power cables, VESA and DIN rail mount kits, and various modules for connectivity and processing enhancements.

Regulatory Compliance: The devices comply with CE, FCC, CCC, and RoHS standards, ensuring safety and electromagnetic compatibility.

Catalog excerpts

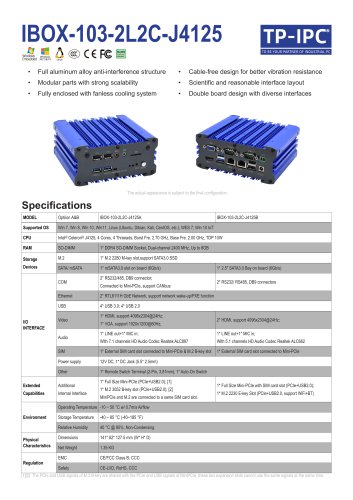

TO BE YOUR PARTNER OF INDUSTRIAL PC IBOX-103-2L2C-J4125 • Full aluminum alloy anti-interference structure • Cable-free design for better vibration resistance • Modular parts with strong scalability • Scientific and reasonable interface layout • Fully enclosed with fanless cooling system • Double board design with diverse interfaces Specifications MODEL 1][2]: The PCIe and USB signals of M.2 B-key are shared with the PCIe and USB signals of MiniPCIe, these two expansion slots cannot use the same signals at the same time.

Open the catalog to page 1

Rear Panel External I/O Mechanical Layout/Drawing I'Sft nnnnn nnn n nnn ii nnn n nnn min ~~~a ,m Remote Switch _ ON/OFF TO BE YOUR PARTNER OF INDUSTRIAL PC
