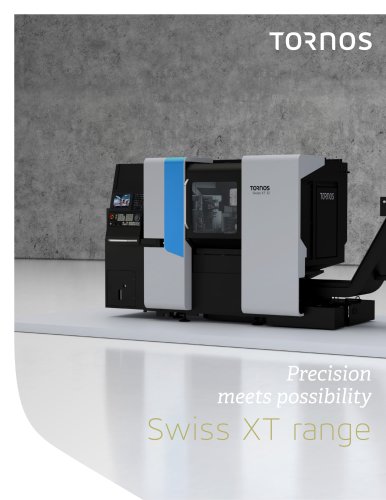

Precision meets possibility

Introducing the Swiss XT range: the ultimate fusion of compact design, versatility, and high-performance machining. With dimensions of just 3300 x 1440 x 2242 mm, this ergonomic powerhouse offers three independent tool systems and customizable axis options to meet all your precision needs. Experience an accessible machining area and the market’s best price-performance ratio. Maximum diameter

Swiss XT: Engineering excellence Maximum diameter Rotating tools positions Linear axes Maximum diameter Maximum number of tools

Three models, one powerful platform Spindle excellence: power & profit Elevate your production with our robust and powerful main and counter spindles, equipped with ceramic bearings for extended life. Maximize material throughput for more parts and increased profitability. They’re not just spindles; they’re the backbone of your success. The Swiss XT range consists of three dedicated models—Swiss XT 16, Swiss XT 26, and Swiss XT 32—designed to cover a wide range of bar diameters. The Swiss XT 16 is ideal for bars up to 16 mm, The Swiss XT 32 is built for larger diameters, reaching spindle speeds...

15-minute guide-bush conversion Plug-and-play B-axis: zero backlash Whether it’s straight from the factory or after delivery, seamlessly add up to 4 extra tools in main operations. Experience the precision of a backlash-free design. Counter-operations: efficiency & complexity simplified With 14 dedicated tools for counteroperations, tackle even the most complex parts effortlessly. Not only can you achieve intricate designs, but you’ll also slash part cycle-times. It’s complexity made simple. Improve and ensure selfsufficiency with Tornos’ Active Chip Breaker Plus (ACB Plus) software Improve and...

Swiss XT Welcome to the Swiss XT’s cutting-edge machining area, where precision meets versatility. With options for 8 or 9 linear axes, up to 40 tools, and three independent tool systems, this is the command center for your most demanding projects. From intricate 5-axis tasks to high-throughput oper ations, this workspace is engineered to adapt to your every need. It’s not just a machining area—it’s the nucleus of unparalleled productivity. Masterpieces of Swiss XT precision 6 Medical & dental

Stainless Steel

Discover unparalleled flexibility and performance with Swiss XT’s comprehensive features Your benefits : Maximize your profitability with unmatched speed and power Outpace your competitors with the Swiss XT's high-powered spindles. Designed for versatility, these spindles offer: • Equipped with ceramic bearings: For long-lasting durability and minimal friction. • Uniform power output: Both spindles deliver an impressive 10.5 kW of power. • Rapid acceleration: Achieve speeds of up to 10,000 rpm in just 0.3 seconds. • High torque: Experience an extraordinary 26 Nm (19.177 ft./lb.) of torque. •...

Interchangeable tooling for cost-effective transitions Experience seamless integration and cost savings with tooling compatibility across the Swiss DT and Swiss GT series. Precision meets sustainability The Swiss XT is more than just a precision machi ning marvel; it’s an eco-conscious choice. Featuring Tornos’ Eco Mode and a suite of sustainability options, it reduces energy consumption by up to 75%. Our preheating option ensures faster production and greater energy savings, while Eco Mode automatically conserves power during standby, reducing your carbon footprint without compromising performance....

Main spindle Max bar diameter Standard workpiece length with guide bush / bushless Spindle rotation speed Spindle power (S1 / S6) Number of tool positions Turning tool sections Max number of tools Number of turning tools Number of frontal tools (main-operation / counter-operation) Max front drilling diameter Max front tapping diameter Positions for rotating tools S11 and S21 Positions for rotating tools S12 (option) and S22/B2 (option) Max rotating tool speed Rotating tool power S11 and S21 Rotating tool power S12 (option) and S22 (option) Max drilling diameter rotating tools Max tapping diameter...

Swiss XT 32/9 9 linear axes + 2 C axes 3 independent tool systems Swiss XT 32/8 Swiss XT 16/9 Swiss XT 26/9 8 linear axes + 2 C axes 9 linear axes + 2 C axes 9 linear axes + 2 C axes 3 independent tool systems 3 independent tool systems 3 independent tool systems 3/4 (option) 3/4 (option) 3/4 (option) 3/4 (option) 1 (option) 1 (option) 1 (option) 1 (option)
