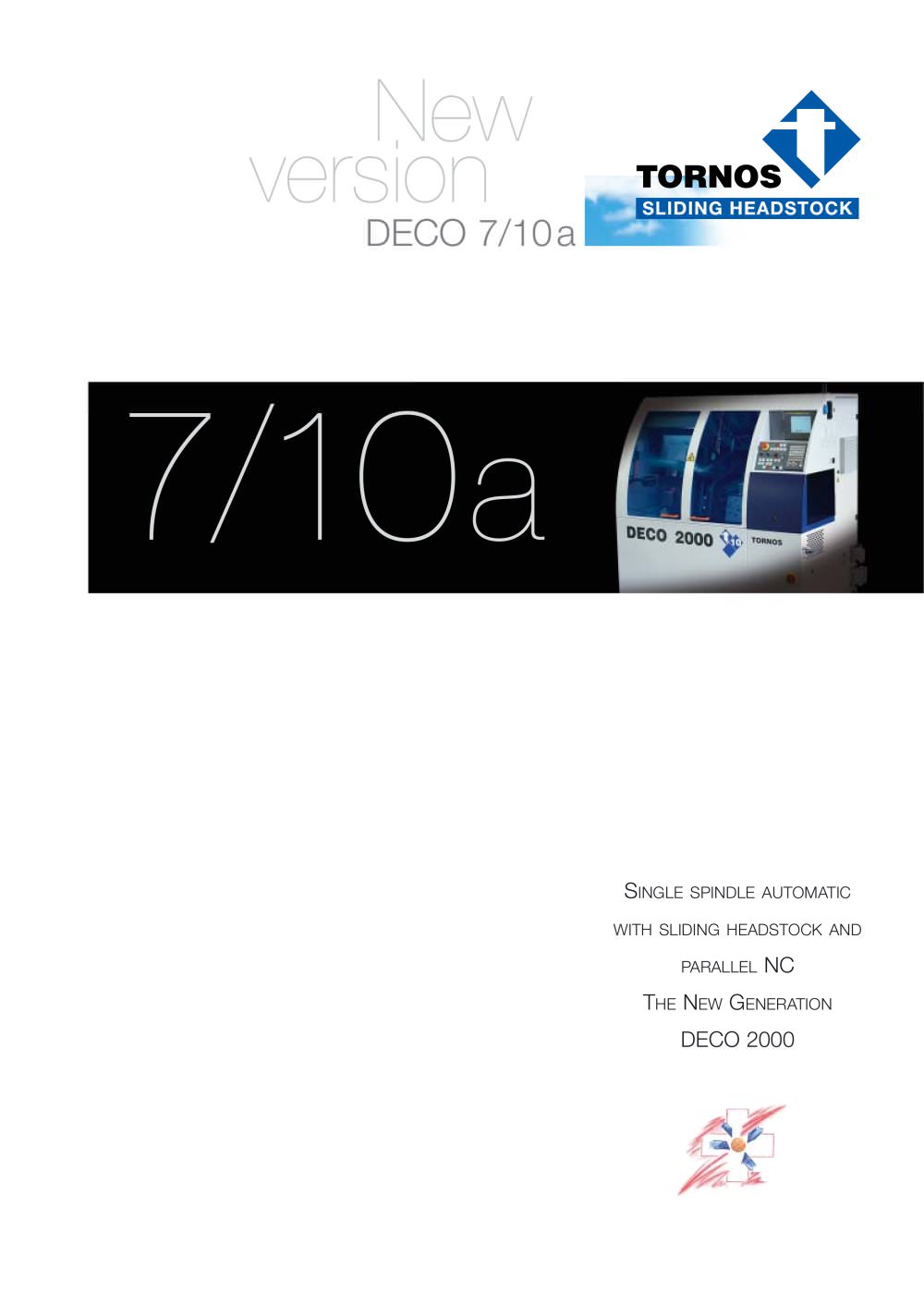

Single SpindleDECO 7/10a
12Pages

{{requestButtons}}

Catalog excerpts

Single SpindleDECO 7/10a - 2

With more than 100000 automatics installedthroughout the world, TORNOS must keep advan- cing and has accepted the challenge of the future.Now, a new generation of sliding headstock auto-matics is being introduced, including a specific pa- rallel numerical control system. The target was to put together all the advantagesof the former and of the present conventional controls. In other words, both notions: the famous ҫswisstype automatic and the hightech ۫Swiss made will allow us to meet the expectation of the 21st cen- tury for precision turned parts.The New Generation concept assures the...

Open the catalog to page 2
Single SpindleDECO 7/10a - 3

DECO 2000 The productivity of a cam-controlled automatic with the flexibility of a numerical control. TB-DECO PNC-DECO Software for the conception and pro-gramming of precision turned parts run- ning on Windows. Principal innovations of this control sys-tem are: the central clock (electronic camshaft) and virtual electronic cams. ٖNo physical angular limits.Electronic hand crank. ֖All axes simultaneously managed. No unproductive times (NC calculations).֖Program effected on-line or on a portable PC.Easy, versatile and rapid use of the system.֖ Real time calculation of machining...

Open the catalog to page 3
Single SpindleDECO 7/10a - 4

(a patented concept by TORNOS) The only solution to reach the high productivity of acamcontrolled automatic on a NC machine. Axes paths are calculated by data processing andstored on tables (virtual cams). A clock synchronizes the reading of the paths(virtual camshaft). Tool correctors are selected automatically andcan be adjusted by the operator from themachines control panel. > The cams are replaced by a stored calculation, sothat the physical angular limits of 360 degrees are eliminated.The measuring unit of the virtual cam is the milli-second, not the degree.The total time of an...

Open the catalog to page 4
Single SpindleDECO 7/10a - 5

The patented TB-DECO interface has been entirelydeveloped by TORNOS. It takes into account all the aspects of the specific programming and machining methods of sliding headstock automatics.Running on Windows, it also offers the easy use ofthat well known interface.The system is ergonomic and permits sim-ple, logical and rapid programming.A simulator permits a fast display of thepaths. > OpenTB-DECO (Windows is a registred trademark of Microsoft Corporation) Once the program has been prepared with the soft-ware, it can be transferred immediately to the PNC- DECO control. All the programming...

Open the catalog to page 5
Single SpindleDECO 7/10a - 6

To cope with specific requests with regard to work-pieces up to 10 mm in diameter, TORNOS has cre- ated three different versions of the DECO 7/10a. The basic version with five axes corresponds tothe production of simple parts. With counter spindle. Including a 7-axes versions And a 9-axes version With counter spindle and end working.TORNOS guarantees an excellent machine configu-ration to fit our customers needs. Optimal machining conditions are offered by the machines ergonomics and simplicity; with good visibility of the machining area.The unique features of the numerical control...

Open the catalog to page 6
Single SpindleDECO 7/10a - 8

7/10a 3 1 1. Thread whirling attachment2. Main and pickoff spindle3. Stationary or revolving toolholder4. Presetter 2 Automatic bar loaders > The global solution of the DECO 2000 includesperipherals specially developed for the lathe which guarantee perfect adaptations and total compatibility.The performance of the DECO 2000 is increased bythe auxiliary equipment which optimizes production. 4 F > AST R > ELIABLE P > RODUCTIVE F > LEXIBLE V > ERSATILE A > CCURATE size="-2">

Open the catalog to page 8
Single SpindleDECO 7/10a - 9

Your guarantee that the feed system complies exactlywith the capacities of the lathes for which they were designed!֖Adopt a dedicated bar feeder! This new completemachining solution is your performance guarantee of your DECO lathe. MachineDECO 7/10aDECO 13aMinimum bar passage2 mm Maximum bar passage- without preparation14 mm - with preparation 16 mmAll capacities2 4 mm (5.5 mm) As a single bar guide 4 ֖ 5.5 mm (7 mm)5.5 8 mm (10 mm) 8 ֖ 14 mm (16 mm)System oil bathRound, hexagonal and square bar change-overyes Bar length3 m, 12 (3 m 65), 4 m Chute extraction from rear Slope capacity18 bars...

Open the catalog to page 9
Single SpindleDECO 7/10a - 10

DECO 7aDECO 10aSliding headstock (axis Z1) (+C1 as option)Max bar diameters 7 mmؘ 10 mm Max length of workpiece acc. to guide bush 60/90 mm60/90 mm Programmable spindle speed100 16000 rpm100 ֖16000 rpmIncrementation for position stop (option)0,1 degree0,1 degree Max output of motor kw1,1 (3,7) kW1,1 (3,7) kW Guide bush (X1/Y1) (X2/Y2)Max number of tools2 x 42 x 4 Tool section8 x 8 mm8 x 8 mm Max number of cross drills, cross milling cutters44 Programmable rotation speeds100 12000 rpm100 ֖ 12000 rpm End attachment (combined attachment) (X3/Y3)Max number of end tools33 Programmable spindle...

Open the catalog to page 10
