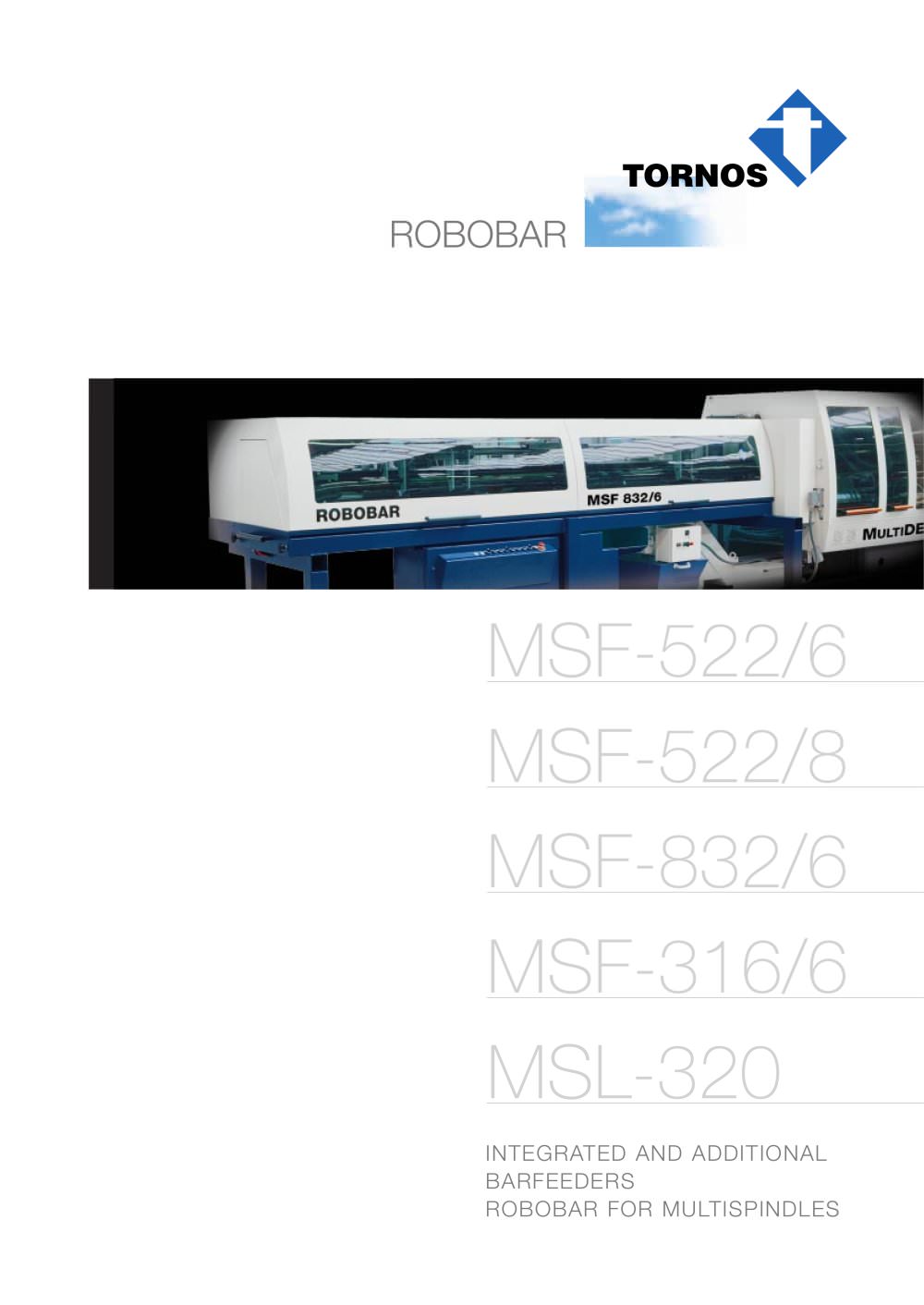

ROBOBAR MSF-522/6 MSF-522/8 MSF-832/6 MSF-316/6 MSL-320 > INTEGRATED AND ADDITIONAL BARFEEDERS ROBOBAR FOR MULTISPINDLES size="-2">

Open the catalog to page 1

2210 17041150 580 850 8053 version 3 m9053 version 4 m Rotation of bars in an oil bath, maximum speed 6000 Change of capacity in ~ 2h.30 min. rpm. Loading by bar bundle, capacity 2000 kg, except for Bar capacity min. 5 mm max. ؘ 22 mm, without pre- paration ( 24 mm with bar end preparation). square and profiled special stock. 3 capacities of bar guides 5 - 8 mm, 8 - 13 mm and Retraction of stock carriage by 580 mm (manual). 13 - 22.5 mm. Electrical and pneumatic energy (without hydraulics). >

Open the catalog to page 3

2210 17721200 580 850 8053 version 3 m9053 version 4 m Rotation of bars in an oil bath, maximum speed5000 Change of capacity in ~ 3 hours. rpm. Loading by bar bundle, capacity 2000 kg, except for Bar capacity min. 5 mm max. ؘ 22 mm, without square and profiled special stock. preparation ( 24 with bar end preparation). Retraction of stock carriage by 580 mm (manual). 3 capacities of bar guides 5 - 8 mm, 8 - 13 mm and 13 - 22.5 mm. >

Open the catalog to page 4

Rotation of bars in an oil bath, maximum speed 5000 rpm. > 2240 Bar capacity min. 8 mm max. ؘ 32 mm, without > 1200 preparation. 3 capacities of bar guides 8 - 16 mm, 13 - 26 mm and > D => 850D =>580 22.5 - 32 mm. > 8300 version 3 m9300 version 4 m Change of capacity in ~ 2h.30 min. Loading by bar bundle, capacity 2500 kg, except for square and profiled special stock. > 1335 Retraction of stock carriage by 580 mm (manual). > 1600 size="-3">

Open the catalog to page 5

The concept of the oil bath andreduced force on the barguides allows for sustained production rates up to 50 parts per minute without bar vibrations and barguidejam-ming. Therefore, the new integrated barfeeder ROBOBAR MSF-316/6 enhances the quality of parts turned on the SAS-16.6.The overall concept of the newROBOBAR MSF-316/6 is based on TORNOS experience with the MSL and SSF barfeeders and is a guaran- tee for perfect operation and total compatibility between the lathe and the stock feeder.In conclusion, the ROBOBARMSF-316/6 saves floor space, improves the quality of the turnedparts,...

Open the catalog to page 6

The additional bar loader ROBOBAR MSL-320Ӕ fromTORNOS is specially designed for multi spindle machines SAS-16.6.The adaptation for other machines is planned, ROBOBAR MSL-320Ӕ loader increases the profitability ofyour machines. > Minimal ground space 3600/4600 mm Versions for bar lengths of 3000 / 4000 mm (12 ft) Only one power source Loading time about 25 seconds A very rigid construction In conformity with international specifications High rehability of working Easy transport and simple installation Bar capacity dia. 3-21 mm Loading of hexagonal or square bars (optional) Stock of bars 1200...
