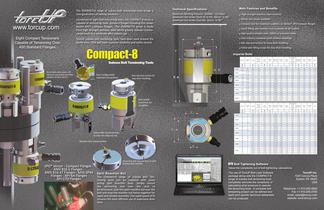

The COMPACT-8 range of subsea bolt tensioning tools brings a new generation of bolting solutions. www.torcup.com Eight Compact Tensioners Capable of Tensioning Over 400 Standard Flanges Comprised of eight bolt tensioning tools, the COMPACT-8 series is capable of tensioning most standard flanges including the newer Vector SPO* Compact flanges. The COMPACT-8 series is made from high strength stainless steel which greatly reduces maintenance work to a minimum after subsea use. Technical Specifications Main Features and Benefits Maximum Working Pressure: 1500Bar : 21750psi Maximum ram stroke (Tools 01 to 07): 30mm : 1.181” Maximum ram stroke (Tool 00): 20mm : 0.787” • High strength Stainless Steel material. • 30mm ram stroke available. • Compact size for maximum usability on Vector* SPO Compact flanges. • Quick fitting split reaction nuts available on all models. • High quality reliable seals. 1000’s of pressure cycles • Uses industry standard quick connect couplings. TorcUP subsea bolt tensioning tools have been used around the world since 1996 and have a proven reliability and safety record. • Non slip tool surface for easy diver handling. • Fitted with lifting straps for easy diver handling. Imperial Bolts Effective Side Diameter Subsea Bolt Tensioning Tools No bonded seals used in the hydraulic connection assembly. (Models C8-02 to C8-07) User configureable Hydraulic Connections. Non slip tool surface for easy diver handling. Tool Height Radial Dim'n Max Initial Bolt Load Hydraulic Area Extra Stud Length (Inc 3xPitches extra) Thread Pitch Headroom Dimension Across Flats Radial Dim'n Rear profile machined, for versatility. Thread Pitch Effective Side Diameter Tool Height Radial Dim'n Max Initial Bolt Load Hydraulic Area Extra Stud Length (Inc 3xPitches extra) Headroom Dimension Across Flats Radial Dim'n SPO* Vector - Compact Flanges : ANSI B16.5 Flanges : ANSI B16.47 Flanges : MSS-SP44 Flanges : API-6A Flanges API-17D Flanges Heavy Duty Split Reaction Nuts or Solid Reaction Nuts available. Reaction Nut release button Side profile machined flats, to clear the adjacent nut. BTS Bolt Tightening Software Takes the complexity out of bolt tightening calculations. Split Reaction Nut The Compact-8 range of subsea Bolt Tensioning tools can be supplied with quick acting Split Reaction Nuts. Simply mount the tensioning tool over the stud to be tensioned, slide the open reaction nut over the bolt and snap the reaction nut halves together for rapid and reliable assembly. The rapid speed of fit ensures the most efficient use of expensive diver time. The use of TorcUP Bolt Load Software package along side the COMPACT-8 range of subsea bolt tensioning tools completely removes the complexity of calculating what pressure to operate the tensioning tools. A complete bolt tensioning project can be defined and rapid joint specific technical datasheets can be produced. TorcUP Inc. 1025 Conroy Place Easton, PA 18040 USA Telephone: +1 610-250-5800 Fax +1 610-250-2700 email: [email protected] website: www.torcup.com
