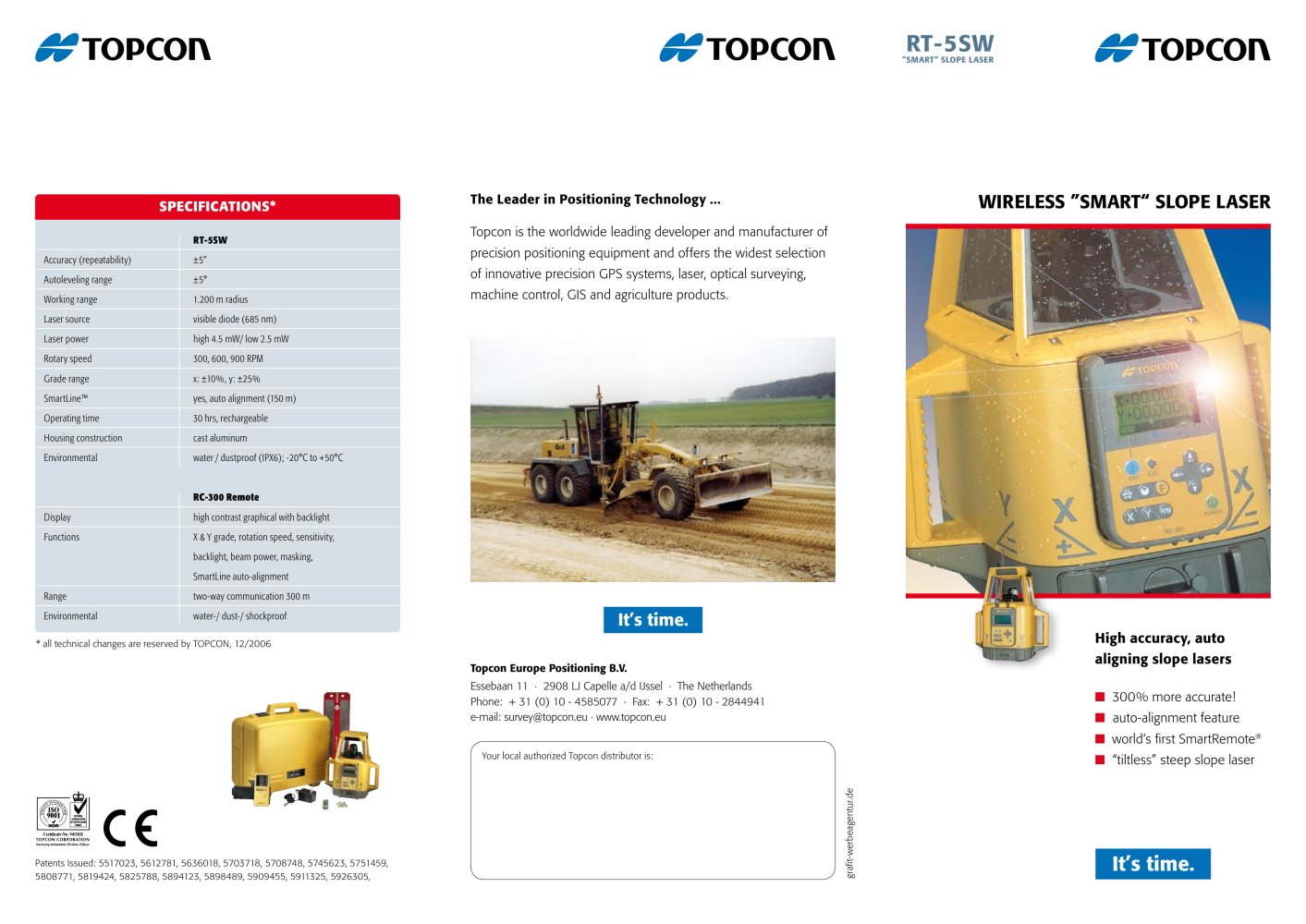

SPECIFICATIONS* RT-5SW Accuracy (repeatability) ±5” Autoleveling range ±5° Working range 1.200 m radius Laser source visible diode (685 nm) Laser power high 4.5 mW/ low 2.5 mW Rotary speed 300, 600, 900 RPM Grade range x: ±10%, y: ±25% SmartLine™ yes, auto alignment (150 m) Operating time 30 hrs, rechargeable Housing construction cast aluminum Environmental water / dustproof (IPX6); -20°C to +50°C RC-300 Remote Display high contrast graphical with backlight Functions X & Y grade, rotation speed, sensitivity, backlight, beam power, masking, SmartLine auto-alignment Range two-way communication 300 m Environmental water-/ dust-/ shockproof WIRELESS ”SMART“ SLOPE LASER High accuracy, auto aligning slope lasers n 300% more accurate! n auto-alignment feature n world‘s first SmartRemote® n “tiltless” steep slope laser RT-5SW ”SMART“ SLOPE LASER Patents Issued: 5517023, 5612781, 5636018, 5703718, 5708748, 5745623, 5751459, 5808771, 5819424, 5825788, 5894123, 5898489, 5909455, 5911325, 5926305, The Leader in Positioning Technology ... Topcon is the worldwide leading developer and manufacturer of precision positioning equipment and offers the widest selection of innovative precision GPS systems, laser, optical surveying, machine control, GIS and agriculture products. Topcon Europe Positioning B.V. Essebaan 11 · 2908 LJ Capelle a/d IJssel · The Netherlands Phone: + 31 (0) 10 - 4585077 · Fax: + 31 (0) 10 - 2844941 e-mail: survey@topcon.eu · www.topcon.eu Your local authorized Topcon distributor is: * all technical changes are reserved by TOPCON, 12/2006 grafit-werbeagentur.de
Open the catalog to page 1Leveling system – World‘s first 5" accuracy system – Thermal software unique to each RT-5SW – Temperature drift 0,3“ per degree °C No offset errors! Dual grade system – Super-accurate, total station based – User definable grade axis – Set grades x: ±10%, y: ±25% – Selectable sensitivity and fast motors SmartLine™ alignment system 150 m – Fast, accurate set-up with remote RC-300 – Eliminates human error – Automatic second day set-up. Always matches previous day‘s hubs Power management choices – Rechargeable battery means no cables – Convenient 6-hour quick charge – 12Vdc connection powers...
