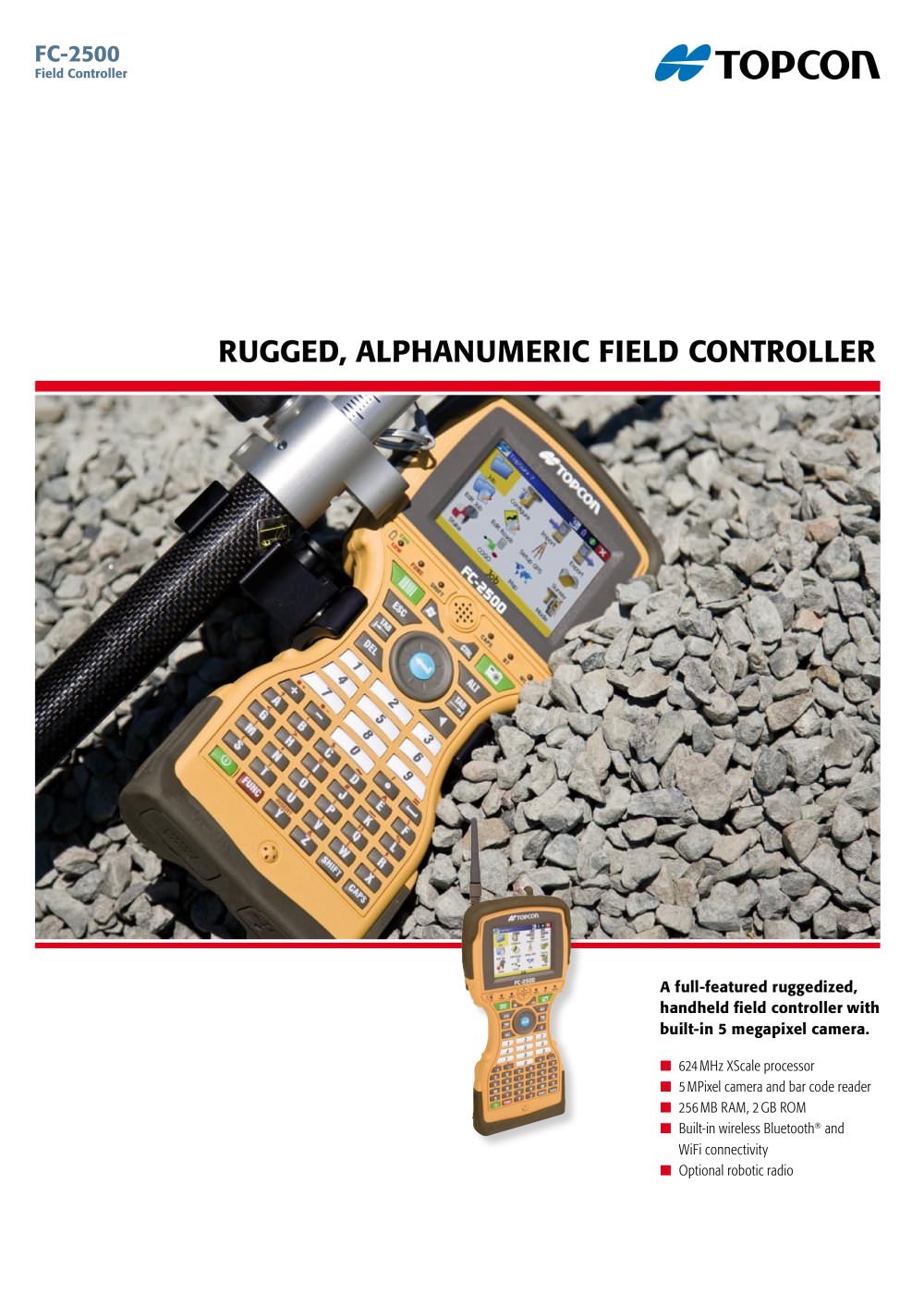

Rugged Alphanumeric Field Controller (FC-2500) - 1

Field Controller ■ 624 MHz XScale processor ■ 5 MPixel camera and bar code reader ■ 256 MB RAM, 2 GB ROM ■ Built-in wireless Bluetooth > and WiFi connectivity ΢֠ Optional robotic radio >

Open the catalog to page 1

Rugged Alphanumeric Field Controller (FC-2500) - 2

Windows CE 5.0 Bar Code Reader This operating platform is the most stable in todays platform offerings. Simple and familiar func- tionality leads to fast learning curves. It also allows higher resolution images to be processed. The digital camera doubles as a bar code reader. Laser pointers identify the bar code and scan that information directly into the text field. There are many applications including: material delivered to site can be Geo-located 624 MHz XScale processor Extra Memory > The fast 624 MHz processor leads in performance and reliability. Allows fast operation of TopSURV and...

Open the catalog to page 2

Rugged Alphanumeric Field Controller (FC-2500) - 4

FC-2500 Microprocessor XScale PXA 270 Processor Speed 624 MHzOperating System CE.NET 5.0Memory 256 MB SDRAM / 2 GB System FlashDisplay Display Resolution 320 x 240 QVGA Type 3.5 in. TFT Color LCD Light LED Back Light Touch Panel Analog Resistive FilmKey-Board 55 Keys (Power Key Included)LED 6 LED IndicatorsInterface RS-232C (D-Sub 9pin) / Mini USB 2.0 A/B / USB OTG Host and ClientRadio Optional RS-1 RadioBluetooth wireless technology Bluetooth 1.2 Class IIExternal Power 12-18 VDC (36Watts)Audio Integrated Speaker and MicrophoneWiFi 802.11 b/gWater/Dust Resistance IP67Operating Temperature -...

Open the catalog to page 4
