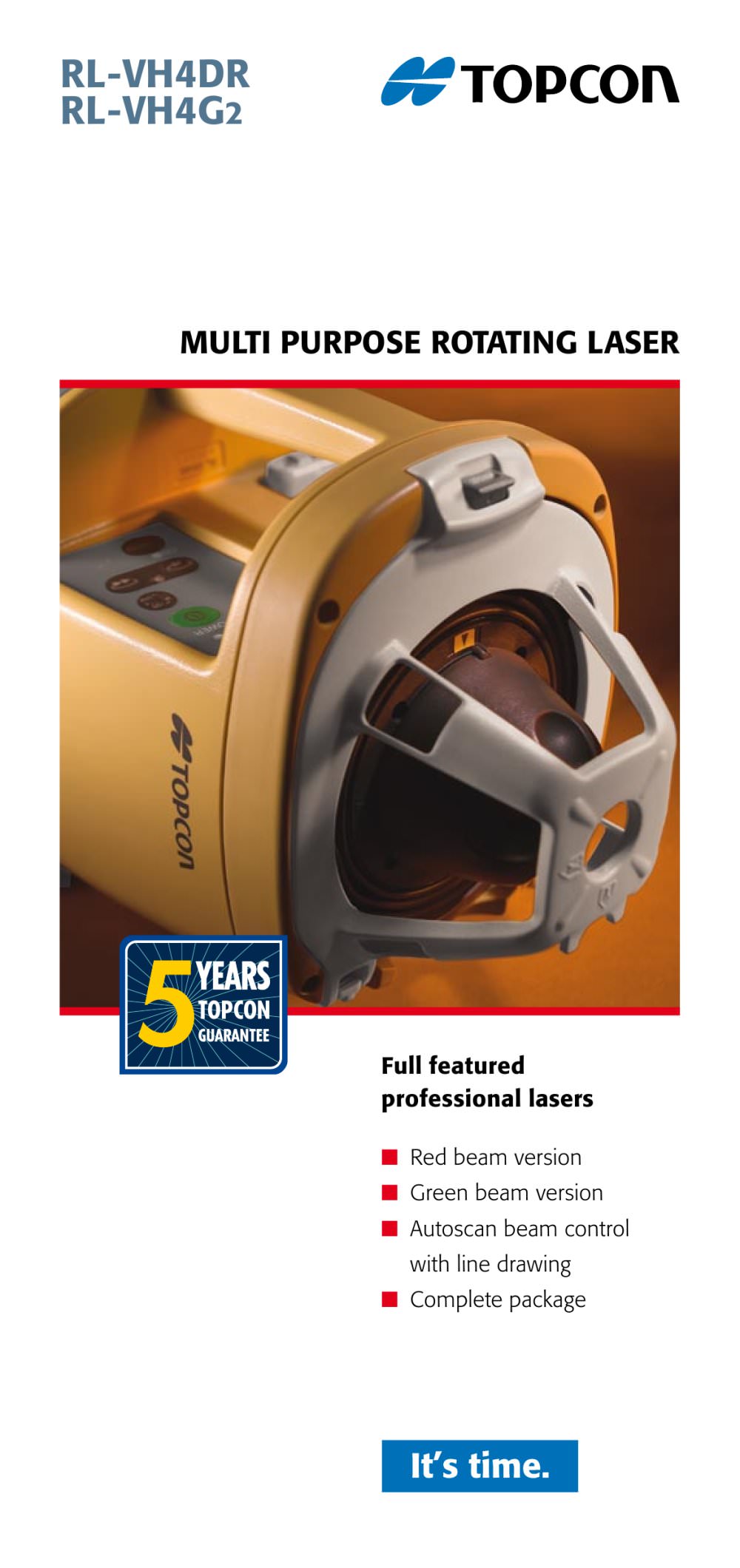

Multi-Purpose Rotating Laser (RL-VH4DR, RL-VH4G2 ) - 1

Multi purpose rotating laser Full featured professional lasers n Red beam version n Green beam version n Autoscan beam control with line drawing n Complete package RL -VH4DR RL -VH4G2 GUARANTEE TOPCON

Open the catalog to page 1

Multi-Purpose Rotating Laser (RL-VH4DR, RL-VH4G2 ) - 2

AutoScan® Topcon’s AutoScan® lets you draw a line of focused laser light on any surface, to any length you need. It stays there as long as you need, until you release it using the target plate. Self-leveling Set up within 5 degrees of level and push the power button. RL-VH4DR/G2 features fast self-leveling (under 5 seconds) so it will be spinning and ready to go to work when you are. Vertical Alignment Place the RL-VH4DR/G2 in the vertical position and use the RC-40 remote control to set your exact plumb-point on the floor in order to set up wall studs or lightning points on a easy way....

Open the catalog to page 2

Multi-Purpose Rotating Laser (RL-VH4DR, RL-VH4G2 ) - 3

Complete, dependable, durable, accurate, visible and affordable. Simultaneous 90° beam for plumb and layout Manual slope “rake-in” selector for slopes up to 5° Traditional bubble vial for quick rough levelling during set-up. Fast self-leveling motors do the rest Removable Laser Guard Scanning selector Variable rotation speeds from 0 to 300 On/Off self-leveling selector 4 6 3 2 1 5 Compact in design with integrated handle and weighing only 2,6 kg, the RL-VH4DR and RL-VH4G2 are truly portable and easy to set-up. 7 1 3 4 5 6 2 7

Open the catalog to page 3

Multi-Purpose Rotating Laser (RL-VH4DR, RL-VH4G2 ) - 4

Now you have the power to work the way you always wanted to work! The new RL-VH4 Multi Purpose lasers offers you three power options for convenience and flexibility: Alkaline, rechargeable and AC run/charge. The new RL-VH4 series provides up to twice as many hours of operation from one set of alkaline batteries than other lasers. Four times more visible with the green-beam version. This is the power you need…. The RL -VH4DR and RL -VH4G2 packages includes: l Magnetic ceiling target l RC-40 remote control l LS-80A or LS-80G sensor l Holder -6 bracket l Rechargeable battery package l...

Open the catalog to page 4

Multi-Purpose Rotating Laser (RL-VH4DR, RL-VH4G2 ) - 5

SPECIFICATIONS* Item RL-VH4DR RL-VH4G2 Accuracy 2 mm / 20 m 2 mm / 20 m Detecting range 300 m 300 m Beam type 635 nm red 532 nm green Laserclass 3R 3R Rotating speed 0-300 rpm 0-300 rpm Water-dust proof IP 54 IP 54 Scanning width 180 degr 180 degr Batteries Rechargeable Rechargeable Operating time 45 hrs 24 hrs Weight 2,2 kg 2,6 kg Dimensions 182 x 167 x 240 mm 182 x 167 x 240 mm Detector LS-80A LS-80G Remote Controle RC-40 RC-40 Radius 100 m + 100 m + Water-dust proof IP 66 IP 66 Power 2 x AA 2 x AA * all technical changes are reserved by TOPCON, 02/2009 Patents Issued: 5636018, 5926305,...

Open the catalog to page 5

Multi-Purpose Rotating Laser (RL-VH4DR, RL-VH4G2 ) - 6

The leader in positioning technology Topcon is the worldwide leading developer and manufacturer of precision positioning equipment. We offer the widest selection of innovative precision GPS, laser, optical, surveying, machine control, GIS and agricultural positioning solutions. Your local authorised Topcon distributor is: grafit-werbeagentur.de T111EN - English - B www.topcon.eu
