Multi-Purpose GIS Mapping System

Multi-Purpose GIS Mapping System
6Pages

Catalog excerpts

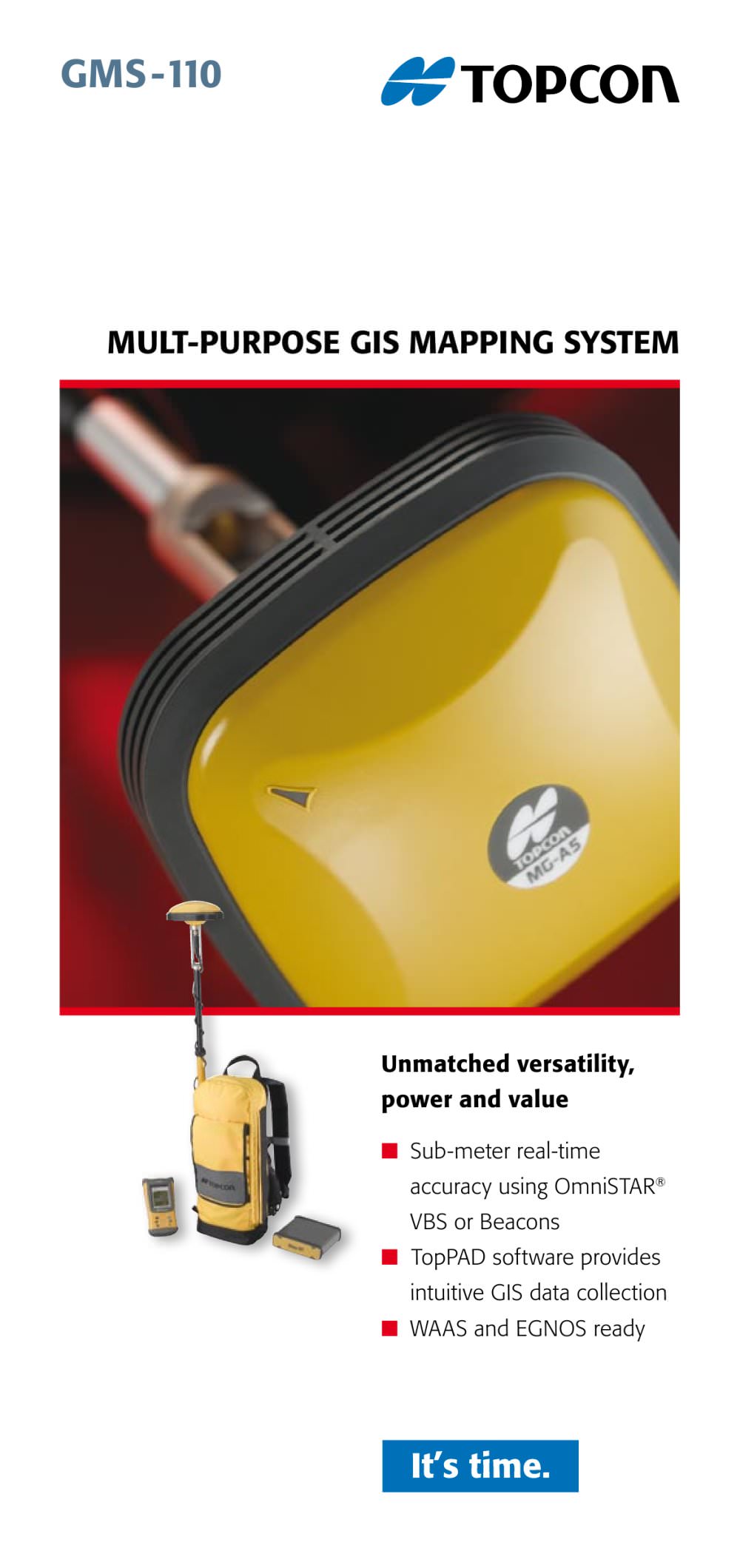

MULT-PURPOSE GIS MAPPING SYSTEM Unmatched versatility, power and value n Sub-meter real-time accuracy using OmniSTAR® VBS or Beacons n TopPAD software provides intuitive GIS data collection n WAAS and EGNOS ready GMS-110

Open the catalog to page 1

– Sub-meter accuracy with real-time differential correction from OmniSTAR® or Coast Guard Beacons – WAAS and EGNOS ready – Powerful navigation capabilities allow easy relocation of features – TopPAD software provides intuitive data collection and allows GIS data to be carried into the field for verification and update – Work in native shapefile format – Supports multi-layer display of vector maps and raster images, including aerial photos and satellite imagery – Create user defined data collection forms to match your GIS database and simplify data collection – Internal Bluetooth for...

Open the catalog to page 2

5 3 2 1 4 1 2 3 4 5 The GMS-110 receiver system provides your choice of fieldsoftware Topcon’s GMS-110 is a compact and versatile GIS data collection and maintenance system that offers a variety of real-time correction services for submeter accuracy almost anywhere in the world at any time. The GMS-110 provides the flexibility to choose between OmniSTAR® VBS corrections, Coast Guard Radio Beacon corrections, or WAAS/EGNOS real-time differential correction services. Differential antenna MG-A5 Backpack pole Backpack for MAP-RT FC-200 Handheld/Windows CE® MAP-RT receiver

Open the catalog to page 3

TopPAD Software A data collection program and mobile GIS from ESRI - TOPCON. l Work in Shapefile format and bring your GIS data to and from the field without converting to a unique portable format l Industry standard vector map and raster image display l Ability to compare GPS data directly to geographic features in the real world adds a deeper sense of reality to the GIS database l Multiple projections available l Store raw GPS data for post-processing l Configure GPS precision settings l Build customized data entry forms TopSURV-GIS Software GIS module of Topcon’s popular TopSURV field...

Open the catalog to page 4

SPECIFICATIONS* TRACKING SPECIFICATIONS Signals tracked L1 C/A carrier (40 channels) PERFORMANCE SPECIFICATIONS Static accuracy H: 3 mm + 0,8 ppm / V: 4 mm + 1,0 ppm Kinematic accuracy H: 10 mm + 1 ppm / V: 15 mm + 1 ppm Differential code solution 0,5 m HRMS* Real-time correction source OmniSTAR®-VBS, WAAS/EGNOS, CORS Beacon * Real-time position accuracy is dependent on correction service used POWER SPECIFICATIONS Battery life 15 hrs Beacon/OmniSTAR® (Internal lithium-ion batteries) 18 hrs GPS only RECEIVER SPECIFICATIONS Dimensions / Weight 157 w x 48 h x 170 d (mm) / 1,3 kg Temperature...

Open the catalog to page 5

Topcon Europe Positioning B.V. Essebaan 11 · 2908 LJ Capelle a/d IJssel · The Netherlands Phone: + 31 (0) 10 - 4585077 · Fax: + 31 (0) 10 - 2844941 e-mail: survey@topcon.eu · www.topcon.eu Your local authorized Topcon distributor is: grafit-werbeagentur.de The Leader in Positioning Technology ... Topcon is the worldwide leading developer and manufacturer of precision positioning equipment and offers the widest selection of innovative precision GPS systems, laser, optical surveying, machine control, GIS and agriculture products. T510EN
