Integrated Positioning System
4Pages

{{requestButtons}}

Catalog excerpts

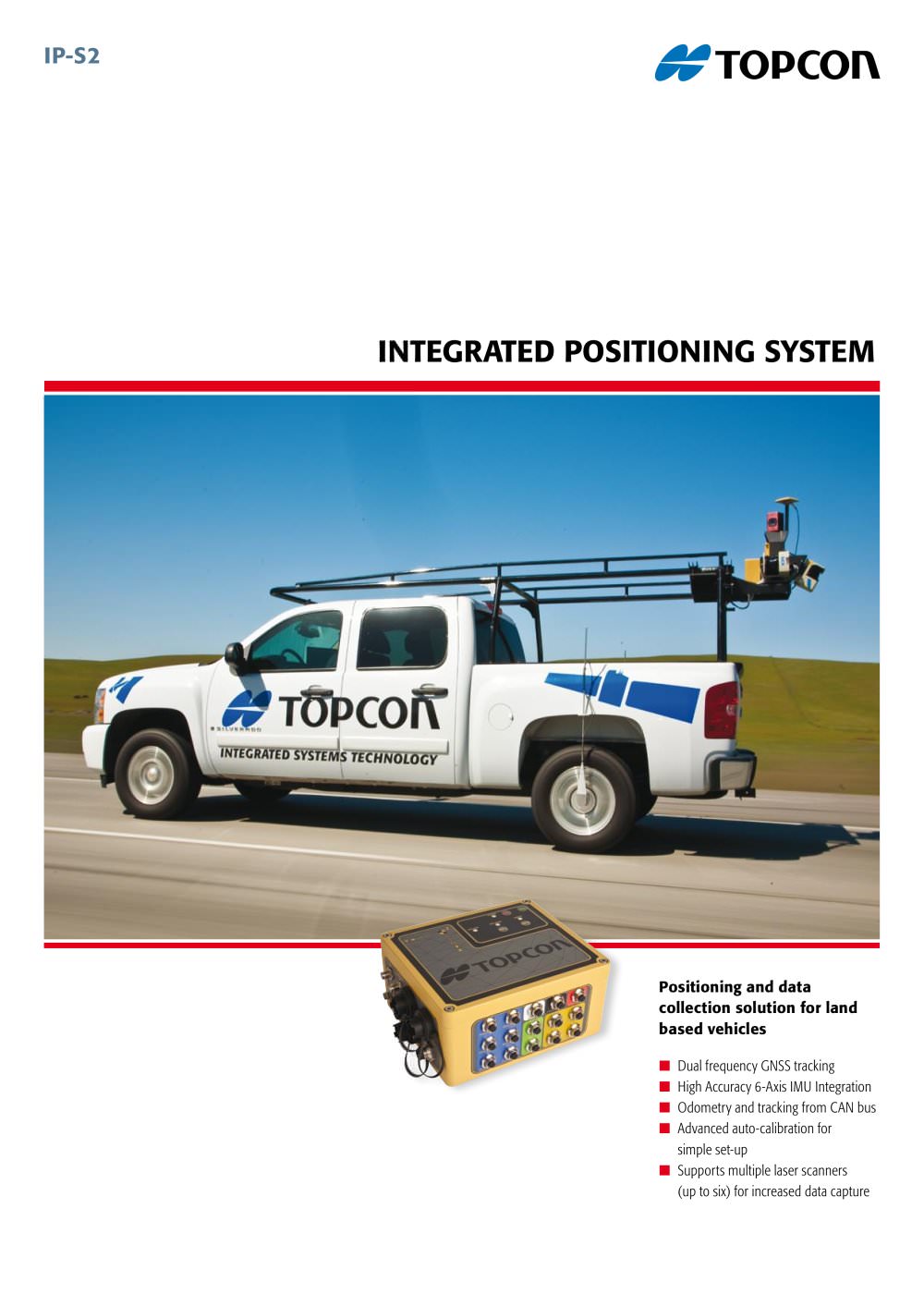

Integrated Positioning System - 1

Positioning and data collection solution for land based vehicles n Dual frequency GNSS tracking n High Accuracy 6-Axis IMU Integration n Odometry and tracking from CAN bus n Advanced auto-calibration for simple set-up n Supports multiple laser scanners (up to six) for increased data capture IP-S2 Integrated Positioning System

Open the catalog to page 1
Integrated Positioning System - 2

Topcon’s IP-S2 Mobile Mapping System overcomes the challenges of mapping linear features to a high level of accuracy. Accurate vehicle positions are obtained using three technologies: a dual frequency GNSS receiver establishes a geospatial position; an Inertial Measurement Unit (IMU) provides vehicle attitude; and connection to the vehicle CAN bus or external wheel encoders obtains odometry information. These three technologies work together to sustain a highly accurate 3D position for the vehicle even in locations where satellite signals can be blocked by obstructions such as buildings,...

Open the catalog to page 2
Integrated Positioning System - 3

Plug and Play give the IP-S2 system full flexibility allowing for your choice of sensors 4 1 2 3 ing the IP-S2 enables applications which demand high precision positioning in diverse and demanding environments. IP-S2 Features: – Accurate Vehicle Position – Precision LiDAR – 360 (deg) Spherical Imagery Supports Multiple Laser Scanners and Other Sensor Integration The IP-S2 comes standard with GNSS and IMU measurement capabilities. Add a laser scanner or 360 degree digital camera for additional data, depending on user requirements. With flexible sensor and interface options, powerful...

Open the catalog to page 3
Integrated Positioning System - 4

Your local authorised Topcon distributor is: www.topcon.eu Specifications subject to change without notice. ©2009 Topcon Corporation. All rights reserved 07/2009. SPECIFICAT IONS grafit-werbeagentur.de T530EN - English - B IP-S2 GNSS COMPONENT Channels 40 channels, all-in-view, L1, L1 GPS, L1/L2 GPS, L1/L2 GLONASS, L1/L2 GPS + L1/L2 GLONASS, WAAS Low signal tracking Down to 30 dBHz Cold / warm start < 60 sec / < 10 sec Reacquisition < 1 sec Vibration Up to 30 g’s of dynamic Advanced firmware function Multipath Mitigation, Co-Op Tracking Real time position & raw data Up to 20 Hz update rate...

Open the catalog to page 4
