High Accuracy, High Value Slope Lasers (RL-100 Series)

High Accuracy, High Value Slope Lasers (RL-100 Series)
2Pages

Catalog excerpts

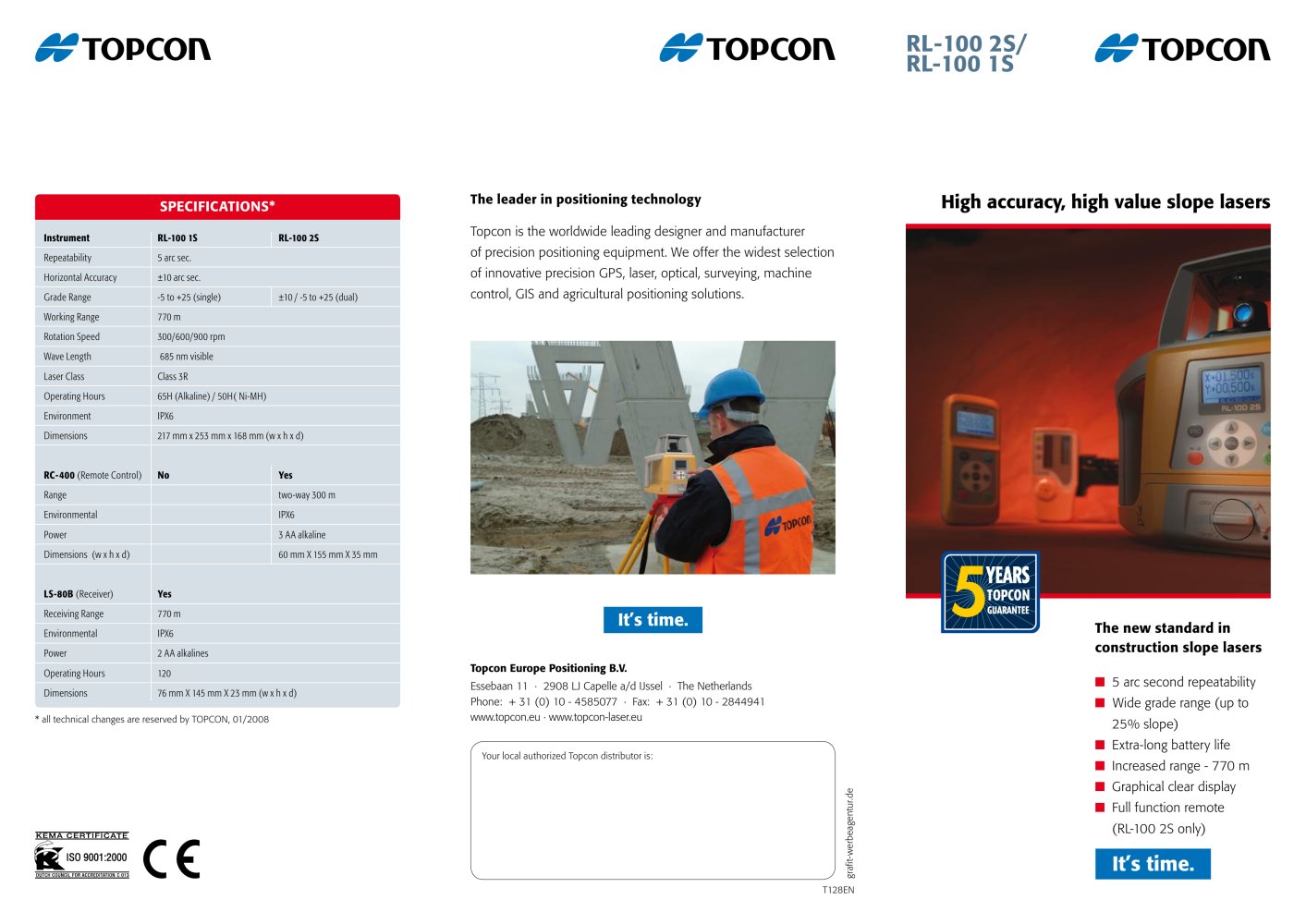

High Accuracy, High Value Slope Lasers (RL-100 Series) - 1

High accuracy, high value slope lasers RL-100 2S/ RL-100 1S The leader in positioning technology Topcon is the worldwide leading designer and manufacturer of precision positioning equipment. We offer the widest selection of innovative precision GPS, laser, optical, surveying, machine control, GIS and agricultural positioning solutions. Topcon Europe Positioning B.V. Essebaan 11 · 2908 LJ Capelle a/d IJssel · The Netherlands Phone: + 31 (0) 10 - 4585077 · Fax: + 31 (0) 10 - 2844941 www.topcon.eu · www.topcon-laser.eu Your local authorized Topcon distributor is: grafit-werbeagentur.de GUARANTEE TOPCON SPECIFICATIONS* Instrument RL-100 1S RL-100 2S Repeatability 5 arc sec. Horizontal Accuracy ±10 arc sec. Grade Range -5 to +25 (single) ±10 / -5 to +25 (dual) Working Range 770 m Rotation Speed 300/600/900 rpm Wave Length 685 nm visible Laser Class Class 3R Operating Hours 65H (Alkaline) / 50H( Ni-MH) Environment IPX6 Dimensions 217 mm x 253 mm x 168 mm (w x h x d) RC-400 (Remote Control) No Yes Range two-way 300 m Environmental IPX6 Power 3 AA alkaline Dimensions (w x h x d) 60 mm X 155 mm X 35 mm LS-80B (Receiver) Yes Receiving Range 770 m Environmental IPX6 Power 2 AA alkalines Operating Hours 120 Dimensions 76 mm X 145 mm X 23 mm (w x h x d) * all technical changes are reserved by TOPCON, 01/2008 The new standard in construction slope lasers n 5 arc second repeatability n Wide grade range (up to 25% slope) n Extra-long battery life n Increased range - 770 m n Graphical clear display n Full function remote (RL-100 2S only) T128EN

Open the catalog to page 1

High Accuracy, High Value Slope Lasers (RL-100 Series) - 2

Single slope display: Choose from two models, RL-100 single slope or RL-100 dual slope, the RL-100 1S provides single slopes from -5% up to +25% and comes complete with Topcons new LS-80B laser receiver, sensor, sensorholder and batterypack + charger. Ready for work. Dual slope display: The RL-100 2S provides dual slopes up of +/- 10% in the X-axis or up to and industry leading -5 to + 25% in the Y axis. The new RC-400 remote that allows complete control of the RL-100 2S up to 300 meter. RL-100 menu display The illuminated menu display shows: 1. Masking electronic shutters up to to three...
