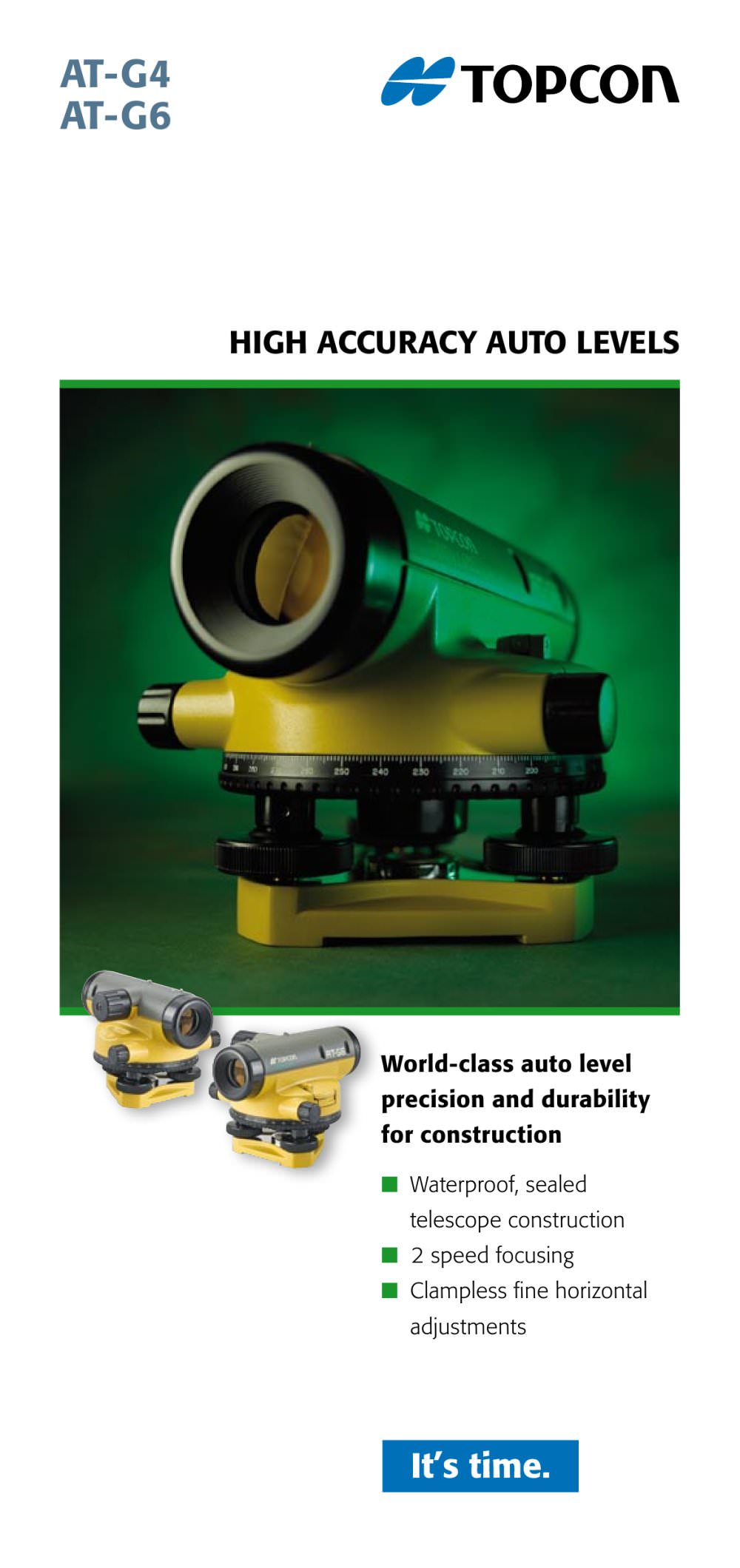

HIGH ACCURACY AUTO LEVELS World-class auto level precision and durability for construction n Waterproof, sealed telescope construction n 2 speed focusing n Clampless fine horizontal adjustments AT-G4 AT-G6
Open the catalog to page 1AT-G4/AT-G6: Two choices... limitless applications. One thing in common: Topcon precision Waterproof/Dustproof construction Completely waterproof and dustproof, the AT-G4/6 is ready to go to work whether it’s dry and dusty, or cold and rainy. Very short 0.5 m focus distance Big jobs or small, close-in or across the site, Topcon’s AT-G4/6 feature a very short focus distance so you can set it up where it’s the most useful, and out of the way. Directions made easy The AT-G4/6 lower circle provides graduated angle indication clockwise from 0° to 360° (0g to 400g). Values are indicated at 10°...
Open the catalog to page 26 3 2 1 4 1 2 3 4 5 Green Label Topcon is pleased to introduce Green Label. Green Label represents Topcon’s commitment to supplying the Survey and Construction industries with the World’s most cost effective, high quality positioning products. It’s through Topcon’s continued investment in state-of-the-art global engineering and manufacturing that Green Label is made possible. Green Label, the start of the next Topcon revolution. Topcon. It’s time. Quick sight Strong, lightweight composite, dry-nitrogen charged body Level vial, hinged sighting mirror and level vial protection cap Fine...
Open the catalog to page 3Easy-to-see level vial Level up without moving from the eyepiece. Using the integrated hinged mirror, simply set so the circular level vial is viewable at eye height of the aperture. Now just use the tribrach base to center the circular level vial and level the AT-G with a slight shift of the eye. With the level vial closed, the level vial is protected from dirt and damage. AT-G4 / AT-G6 package l Auto level l Hard shell carry case l Plumb bob l Weather protective bag l Lens cleaning cloth l Allen wrench l Operator’s manual Rapid set-up Quicker and easier set-up is made possible through the...
Open the catalog to page 4SPECIFICATIONS* TELESCOPE AT-G4 AT-G6 Overall length 192 mm 193 mm Image erect erect Effective diameter lens 30 mm 30 mm Magnification 26 x 24 x Field of view 1°30‘ 1°30‘ Resolving power 3,5“ 4,0“ Minimum focus 0,5 m 0,5 m HORIZONTAL CIRCLE Dimameter 117 mm 117 mm Minimum division 1°(1g) 1°(1g) AUTOMATIC COMPENSATION MECHANISM Range ±15‘ ±15‘ MEASURING ACCURACY 1 km double run ±2,0 mm ±2,0 mm CIRCULAR LEVEL Sensitivity 8’ / 2 mm 8’ / 2 mm OTHER Protection against water and dust IPX7 IPX7 WEIGHT Instrument 1,6 kg 1,6 kg Plastic carrying case 1,3 kg 1,3 kg * all technical changes are reserved...
Open the catalog to page 5Topcon Europe Positioning B.V. Essebaan 11 · 2908 LJ Capelle a/d IJssel · The Netherlands Phone: + 31 (0) 10 - 4585077 · Fax: + 31 (0) 10 - 2844941 e-mail: survey@topcon.eu · www.topcon.eu Your local authorised Topcon distributor is: grafit-werbeagentur.de The Leader in Positioning Technology ... Topcon is the worldwide leading developer and manufacturer of precision positioning equipment and offers the widest selection of innovative precision GPS systems, laser, optical surveying, machine control, GIS and agriculture products. T165EN - English - B
