GNSS RTK Network Receiver (GRS-1)

GNSS RTK Network Receiver (GRS-1)
4Pages

Catalog excerpts

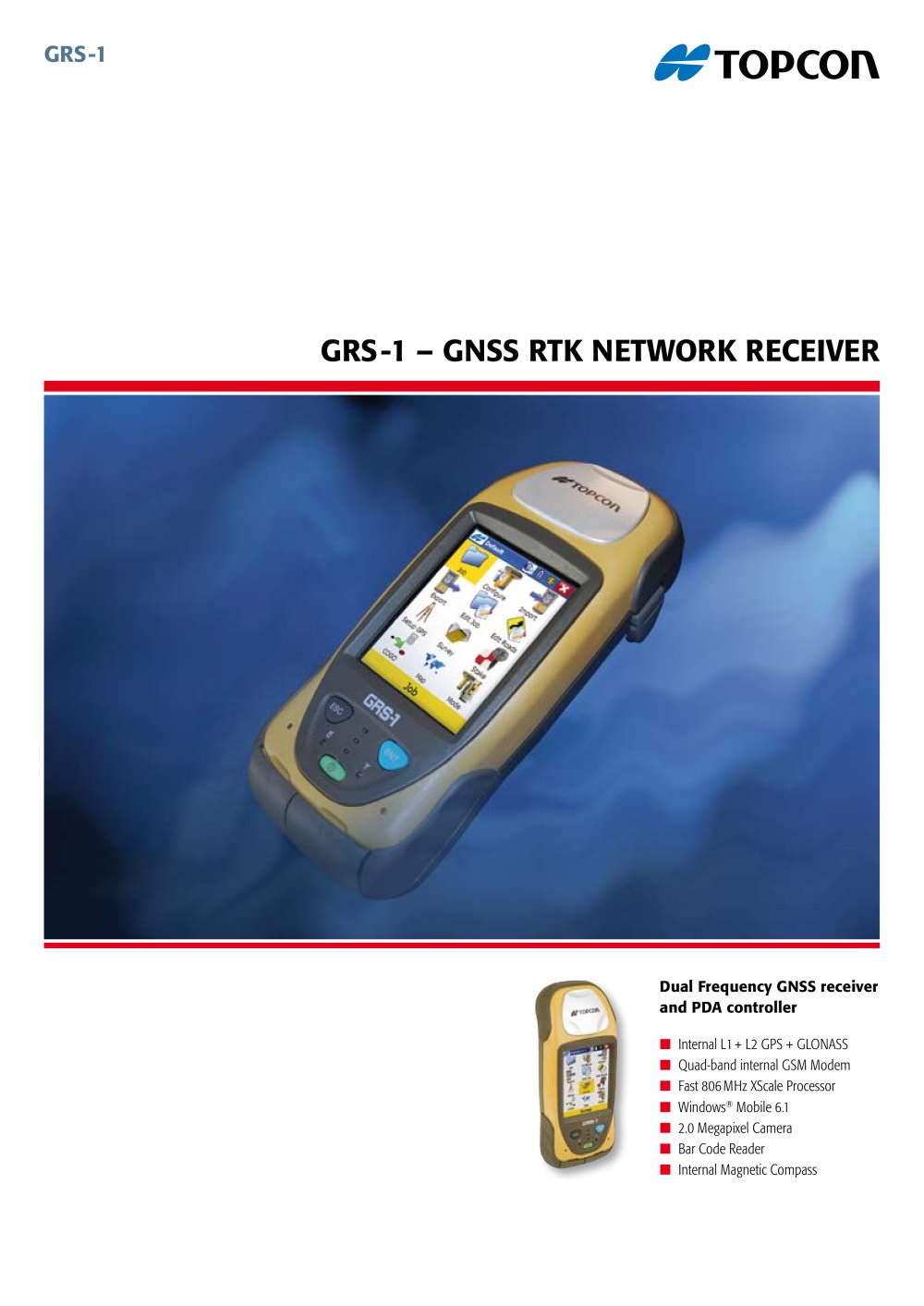

GRS-1 Dual Frequency GNSS receiver and PDA controller n Internal L1 + L2 GPS + GLONASS n Quad-band internal GSM Modem n Fast 806 MHz XScale Processor n Windows® Mobile 6.1 n 2.0 Megapixel Camera n Bar Code Reader n Internal Magnetic Compass GRS-1 – GNSS RTK Network Receiver

Open the catalog to page 1

Topcon’s new GRS-1 is the world’s first fully integrated dual constellation network enabled RTK rover system. It is an all-inone handheld GNSS receiver and field controller with high-speed processor, increased memory, built-in camera, compass and bar code reading function. Also integrated into the new system are SD memory card slot, internal GSM modem, and wireless connectivity via WiFi and Bluetooth® technology. The GRS-1 (Geodetic Rover System) was designed with two primary system design goals: Smaller size and weight, and lower-thanexpected cost. The new receiver has DGPS capability with...

Open the catalog to page 2

All-in-one handheld Dual Frequency GNSS Receiver and Field Controller with high-speed processor, built-in camera, compass and bar code reading function Stylus Holder / hand strap Removable Rechargeable Li-ion Battery SD Memory Slot – USB Port Serial Port – Power Port L1 Glonass and GPS Antenna L1, L2 Dual Frequency external Antenna Port Ultra Sharp Color TFT Touch Screen 5 4 3 6 7 2 1 8 9 7 4 5 6 8 9 3 2 1 TopSURV Onboard – Large Graphical User Interface (GUI) – Intuitive User Interface – Graphical Stakeout – Map View Data Collection – Fast Job Management and Storage Office Software Topcon...

Open the catalog to page 3

Your local authorised Topcon distributor is: grafit-werbeagentur.de T330EN - English - A The Leader in Positioning Technology ... Topcon products that deliver unparalleled sitewide performance and integration. Topcon’s history of technological advances and our reputation for superior reliability means there’s no other company positioned to provide you with a better “Total Positioning Solution.” From survey to inspection Topcon, through our dealer network, provides the innovative technology that gives surveyors, civil engineers, contractors, equipment owners and operators the competitive...

Open the catalog to page 4
