Electronic Total Station (GTS-230N Series)

Electronic Total Station (GTS-230N Series)
6Pages

Catalog excerpts

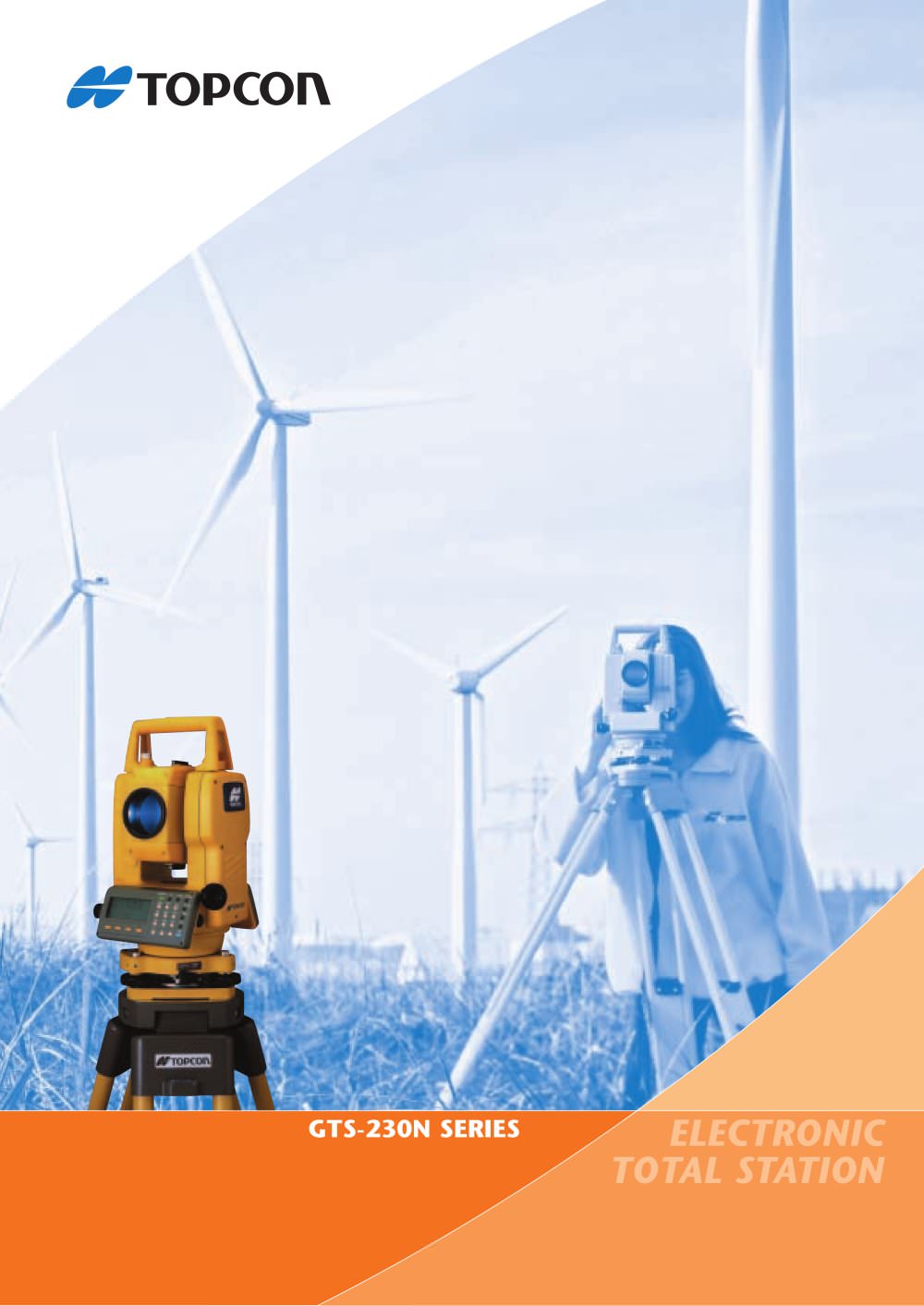

Electronic Total Station (GTS-230N Series) - 1

GTS-230N SERIES ELECTRONIC TOTAL STATION >

Electronic Total Station (GTS-230N Series) - 2

Superior Basic Function for measuring distance & angle The GTS-230N Series are provided with a distance measuring range of 3,000mto a single prism (GTS-239N: 2,000m), while maintaining high accuracy(2mm+ 2ppmxD) m.s.e.(GTS-239N: ѱ(3mm+3ppmxD) m.s.e.). As for distancemeasuring time, data updates at a high rate speed of 1.2 seconds in the fine measurement mode (0.7 seconds in coarse mode and 0.4 seconds in trackingmode). This quicker distance measurement time will increase efficiency andproductivity in the field. The Topcon GTS-230N Series are the innovativesuccessors to the best selling...

Open the catalog to page 2

Electronic Total Station (GTS-230N Series) - 3

Waterproof IP66! The proven robustness and durability of Topcon construction Total Stations is also found in the GTS-230N Series. With International protectionstandard IP66, the instruments are water and dust proof and ensurereliable performance even in the harshest site conditions. This increases the amount of working hours during a day, even in bad weather andensures the instrument performing reliably for many years without theneed for lengthy service and repairs. > * Degree of protection against water for Topcons GTS-230N Series are based on the standard IEC60529, defined as ґWater...

Open the catalog to page 3

Electronic Total Station (GTS-230N Series) - 4

MENU 1/3 F1 : DATA COLLECT F2 : LAYOUT F3 : MEMORY MGR. P DATACOLLECT LAYOUT MEMORYMANAGER PROGRAMS GRIDFACTOR ILLUMI-NATION PARA-METERS CONTRAST ADJUST- MENT OCCUPIEDPOINTBACK SIGHTFS/SSSELECT A FILE P CODE INPUT CONFIG OCCUPIEDPOINTBACK SIGHTLAYOUTSELECT A FILENEW POINT SIDE SHOT RESECTIONGRID FACTOR REMOTE ELEVATIONMEASUREMENTMISSING LINEMEASUREMENTZ COORDINATE OF OCCUPIED POINT AREA CALCULATIONPOINT TO LINE MEASUREMENTROADS ONOFF LEVEL MINIMUMREADINGAUTO POWER OFFTILT ERROR CORRECTIONBATTERY TYPE Remote elevation measurement (REM) Z coordinate of occupied point (benchmark elevation)...

Open the catalog to page 4

Electronic Total Station (GTS-230N Series) - 6

Your Topcon Partner Item number: 5310751Language: English Printed: 03-2006 TOPCON EUROPE POSITIONING B.V. Essebaan 112908 LJ Capelle a/d IJssel The Netherlands Phone: 31-(0)10 - 458 50 77 Fax: 31-(0)10 - 284 49 41 E-mail: survey@topcon.nl http: //www.topconeurope.com > Certificatie No. NL 04/0091QATOPCON EUROPE B.V.Capelle a/d IJssel, The Netherlands size="-4">
