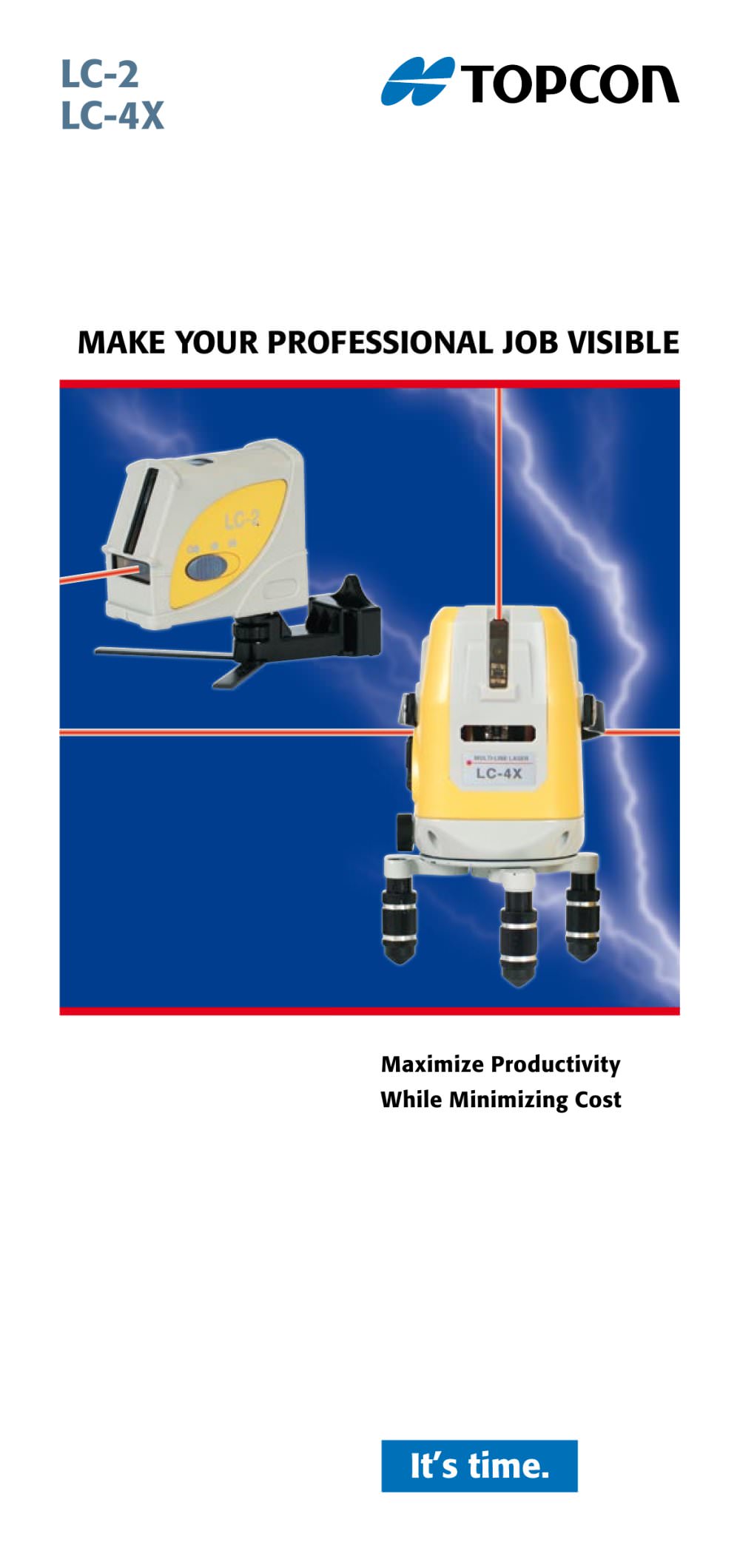

Make your professional job visible LC-2 LC-4X Maximize Productivity While Minimizing Cost

l Two-line, level and plumb l Highly visible laser beam l Pulse mode for optional receiver l Set out angles of 90° l For inside and outside Package Crossline Laser LC-2

Open the catalog to page 2

Multi-Crossline Laser LC-4X Package l Extreme high visibility l Projects 3 vertical lines and 1 horizontal line as well as a plumb up and down l Instant self-levelling within 3 seconds l 40 m range with the standard laser receiver l IP 54 dust- and water-protection l Weights only 900 g

Open the catalog to page 3

Your local authorised Topcon distributor is: grafit-werbeagentur.de T132EN - English - A www.topcon.eu SPECIFICATIONS* LC-2 LC-4X Accuracy 3 mm / 10 m 2 mm / 10 m Laserdiode 635 nm 635 nm Operating range 30 m indoor / 50 m outdoor 40 m indoor / 50 m outdoor Power suply 3x AA dry cell 3x AA dry cell Operating time 12 hours continious 5 hours over all lines Water / Dust proof IP 54 IP 54 Out of level indic. Yes Yes Tripod screw hole 1/4 + 5/8 in mount Unit weight 470 g 900 g Protection Nylon pouch Aluminium case * all technical changes are reserved by TOPCON, 04/2009 The LVH-800 receiver is a...
