Top Line Sanitary Butt Weld Fittings

Product catalog summary

Overview: This document provides detailed specifications and ordering information for sanitary butt weld fittings manufactured by Top Line Process Equipment Company. These fittings are designed for use in various industries including food, beverage, dairy, cosmetics, biotechnology, pharmaceutical, and electronics processing.

Warranty: Top Line products are warranted to be free from defects in material or workmanship for one year from the date of shipment. The warranty applies to products used in approved installations and maintained according to standard industry practices. The company may repair or replace defective products but is not liable for consequential damages.

Product Specifications:

Size Range: 1" OD through 4" OD
Materials: Type 304 (Stock no. Prefix 32) and Type 316L (Stock no. Prefix 38)
Finish Options: No. 7 (standard), No. 5 (OD only), No. 3 (ID only), No. 1 (unpolished)

Ordering Specifications: Customers should specify quantity, size, product description, stock number, material type, and polish requirements when ordering.

Product Types and Dimensions: The document includes detailed tables listing various types of fittings such as elbows, tees, reducers, and crosses, along with their dimensions and stock numbers. Examples include:

L2CM-90° Sweep Elbow
L2C-90° Elbow
L2S-90° Tube Bend
L2KS-45° Tube Bend
L2F-90° Sweep Elbow
L7WWW-Tee
L31 Concentric Reducer
L32 Eccentric Reducer

Contact Information: Customers can contact Top Line representatives for assistance at their office in Bradford, PA, or their plant in Lewis Run, PA. Phone and fax numbers are provided for further inquiries.

Additional Products: Top Line also offers valves, fittings, tubing, gauges, sight glasses, braided hoses, pumps, and strainers.

Catalog excerpts

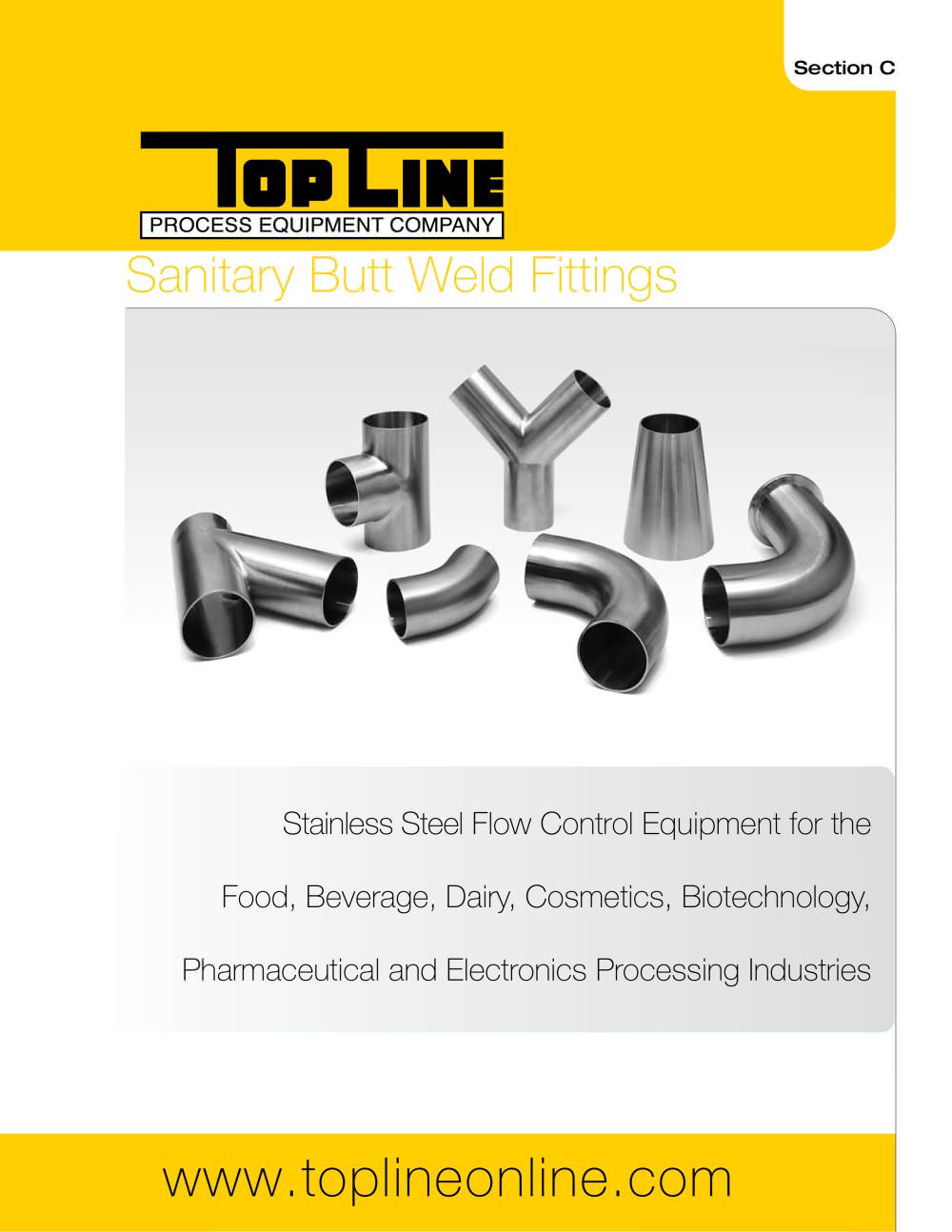

Section C Sanitary Butt Weld Fittings Stainless Steel Flow Control Equipment for the Food, Beverage, Dairy, Cosmetics, Biotechnology, Pharmaceutical and Electronics Processing Industries www.toplineonline.com >

Open the catalog to page 1

Size Range: 1" OD through 4" ODMaterials: 304 (Stock No. Prefix 32) 316L (Stock No. Prefix 38) Finish: No. 7 ID and OD (standard) No. 5 ֖ OD only (special) No. 3 ID only (special) No. 1 ֖ unpolished (special) Specify: Quantity ׷ Size Product Description ׷ Stock Number Material Type ׷ Polish Requirements Quantity Size ProductDescription StockNumber MaterialType Polish > ֶֶֶ 3 Each 2 L2S-90԰ #35720 Type 304 No. 7 > LIMITED WARRANTY Top Line Process Equipment Company products are warranted to be free of defects in material or workmanship for a period of one year from date of ship-ment. Warranty...

Open the catalog to page 2

SIZE (TUBE O.D.) A STOCK NO. >

Open the catalog to page 3

Contact your Top Line Representative for AssistanceOffice: P.O. Box 264 Bradford, PA 16701Plant: 21 Valley Hunt Drive ׷ Lewis Run, PA 16738800-458-6095 814-362-4626Fax: 814-362-4453 PUMPS & STRAINERS- Centrifugal, Rotary Lobe, Filters and Strainers VALVES - Manual, Actuated, Diaphragm FITTINGS - Clamp, Sanitary Butt Weld, Bevel Seat, Tube OD Buttweld, Custom, Biopharm TUBING, GAUGES, SIGHT GLASSES, BRAIDED HOSE >

Open the catalog to page 8
