Top Line Large Diameter Fittings
1 / 8 PagesView full catalog
Top Line Large Diameter Fittings
Product catalog summary
Overview: This document provides specifications and details for large diameter stainless steel fittings and tubing used in various industries such as food and beverage, dairy, cosmetics, biotechnology, pharmaceutical, and electronics processing.
Fitting Specifications:
- Materials: 304, 304L, 316L stainless steel
- Standards: A269, A774
- Finish: Available in polished and unpolished
- Wall Thickness: .109” for 6" & 8", .134” for 10" & 12"
- Sizes: 6”, 8”, 10”, & 12” outer diameter
Tubing Specifications:
- Materials: 304L, 316L stainless steel
- Standards: A269, A778
- Finish: Available in polished and unpolished
- Wall Thickness: .109” with a length of 20’
- Sizes: 6”, 8”, 10”, & 12” outer diameter
Product Offerings:
- Top Line provides a single source service for quality 6-inch tubing and fittings, with prompt shipment of major components. Special orders for 8-inch, 10-inch, 12-inch, and other sizes are available for unique applications.
Types of Fittings:
- Clamp Type Fittings: Includes 90° and 45° elbows, tees, reducing tees, crosses, concentric and eccentric reducers, short weld ferrules, butt welding ferrules, tank welding spuds, solid end caps, and heavy-duty clamps.
- Weld Type Fittings: Includes 90° and 45° weld elbows, weld tees, reducing weld tees, weld crosses, concentric and eccentric weld reducers, weld caps, stub ends, and back-up flanges.
Contact Information:
- Top Line Representative: For assistance, contact via phone at 800-458-6095 or 814-362-4626, or fax at 814-362-4453.
- Office Address: P.O. Box 264, Bradford, PA 16701
- Plant Address: 21 Valley Hunt Drive, Lewis Run, PA 16738
See more
Catalog excerpts

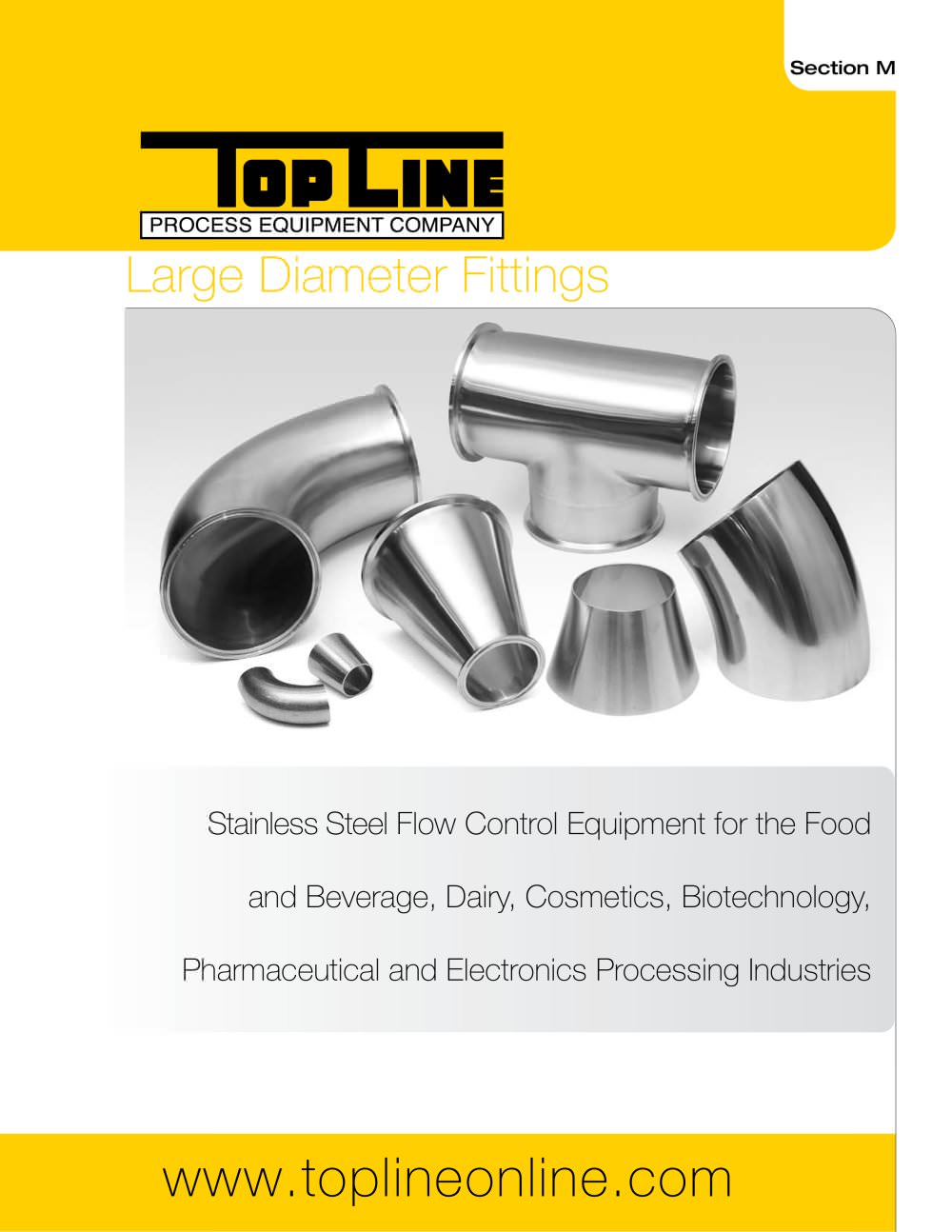

Section M Large Diameter Fittings Stainless Steel Flow Control Equipment for the Food and Beverage, Dairy, Cosmetics, Biotechnology, Pharmaceutical and Electronics Processing Industries www.toplineonline.com
Open the catalog to page 1
Large Diameter Tubing and Fittings available for unique applications. Call us with your inquiries. Fitting Specifications Tubing Specifications B
Open the catalog to page 2
. . . the source for all your product needs in the process industries P S F www.toplineonline.com
Open the catalog to page 8All Top Line Process Equipment Company catalogs and technical brochures
