Top Line Clamp Fittings

Product catalog summary

Overview: This document provides detailed specifications and ordering information for clamp fittings used in various industries such as food, beverage, dairy, cosmetics, biotechnology, pharmaceutical, and electronics processing. It highlights the quality assurance and warranty details of Top Line Process Equipment Company's products.

Warranty: Top Line products are warranted to be free from defects in material or workmanship for one year from the date of shipment. The warranty applies to products used in approved installations and maintained according to industry standards. Top Line may repair or replace defective products but is not liable for consequential damages.

Materials and Manufacturing: Top Line specializes in stainless steel materials, including types 304, 316, and "L grades." They also offer fittings in AL6XN, titanium, Hastelloy C, or other alloys upon request. The manufacturing facilities are equipped to meet strict tolerances and finish specifications, ensuring high-quality products.

Clamp Fittings Specifications:

Size Range: 1" OD through 4" OD
Materials: 304 (Stock no. Prefix 32), 316L (Stock no. Prefix 38)
Finish Options: No. 7 (standard), No. 5 (OD only), No. 3 (ID only), No. 1 (unpolished)
Polish Specifications: 3A fittings meet or exceed 180 grit ID (32 Ra) and 150 grit OD.

Ordering Specifications: Customers should specify quantity, size, product description, stock number, material type, and polish requirements when ordering. An example is provided for clarity.

Product Range: The document includes detailed tables listing various clamp fittings, elbows, tees, adapters, reducers, and accessories with their respective sizes, dimensions, and stock numbers. These fittings are designed to provide fast, sanitary, and secure connections, meeting FDA and 3A regulatory standards.

Contact Information: For assistance, customers can contact Top Line representatives at their office in Bradford, PA, or their plant in Lewis Run, PA. Contact numbers and fax details are provided.

Catalog excerpts

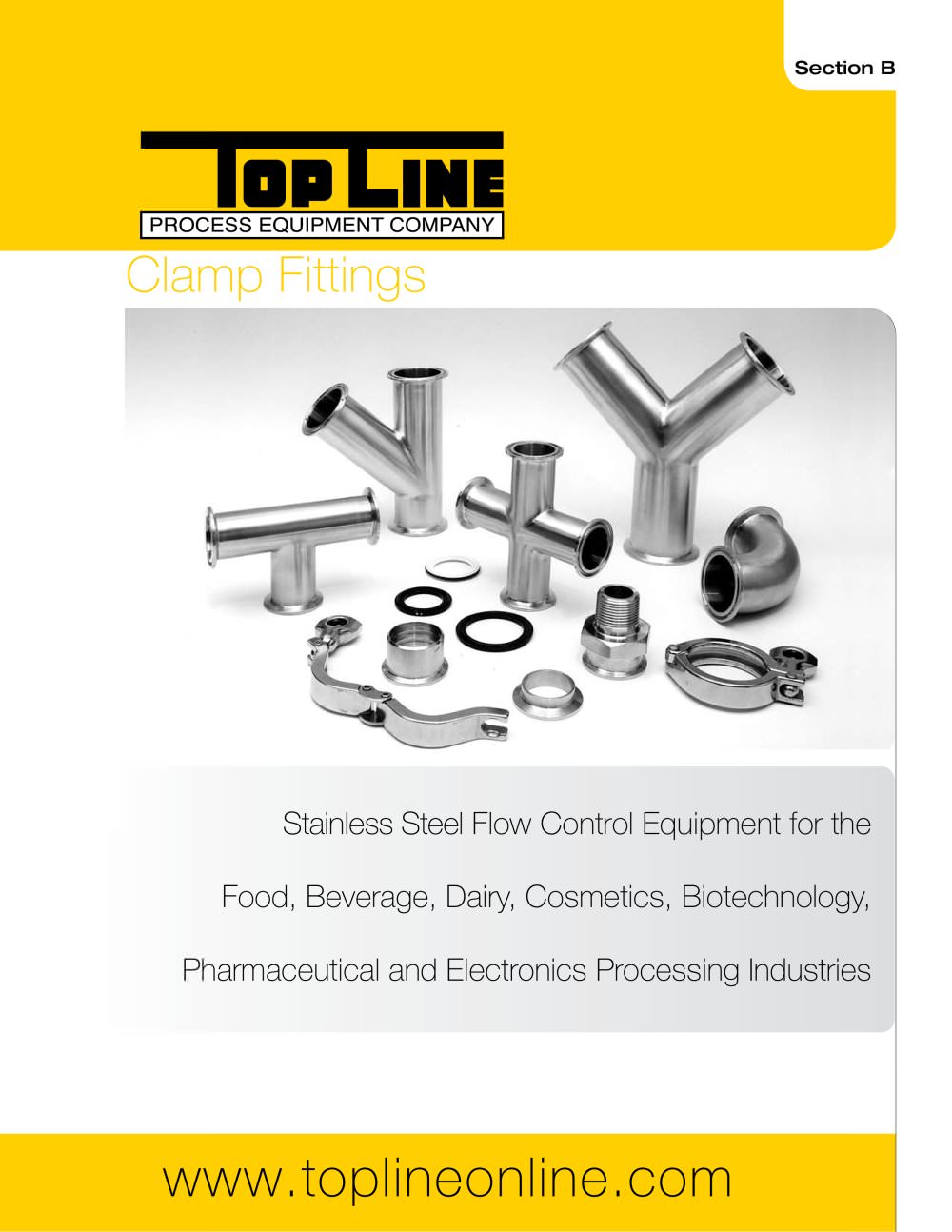

Section B Clamp Fittings Stainless Steel Flow Control Equipment for the Food, Beverage, Dairy, Cosmetics, Biotechnology, Pharmaceutical and Electronics Processing Industries www.toplineonline.com >

Open the catalog to page 1

Top Line precision crafted Clamp Fittings provide fast, sanitary and secure connections. Polished fittings meet or exceed FDA and 3A regulatory standards. Size Range: 1" OD through 4" ODMaterials: 304 (Stock No. Prefix 32) 316L (Stock No. Prefix 38) Finish: No. 7 ID and OD (standard) No. 5 ֖ OD only (special) No. 3 ID only (special) No. 1 ֖ unpolished (special) Polish specifications: 3A fittings meet or exceed 180 grit ID (32 Ra) and 150 grit OD. Specify: Quantity ׷ Size Product Description ׷ Stock Number Material Type ׷ Polish Requirements Quantity Size ProductDescription StockNumber MaterialType...

Open the catalog to page 2

O-RING FLANGED (TYPE 2) ENVELOPE (TYPE 3) > 40MP-U BUNA N 40MPF-U BUNA N A40MP-GR TEFLON 40MP-UW BUNA WHITE 40MPF-X SILICONE 40MP-X SILICONE 40MPF-E E.P.D.M. ALSO AVAILABLE > 40MP-E E.P.D.M. 40MPF-SFY VITON BEVEL SEAT 40MP-G TEFLON JOHN PERRY 40MP-SFY VITON

Open the catalog to page 10

WITH ALUMINUM BRONZE NUTS size="-2">

Open the catalog to page 11

Contact your Top Line Representative for AssistanceOffice: P.O. Box 264 Bradford, PA 16701Plant: 21 Valley Hunt Drive ׷ Lewis Run, PA 16738800-458-6095 814-362-4626Fax: 814-362-4453 PUMPS & STRAINERS- Centrifugal, Rotary Lobe, Filters and Strainers VALVES - Manual, Actuated, Diaphragm FITTINGS - Clamp, Sanitary Butt Weld, Bevel Seat, Tube OD Buttweld, Custom, Biopharm TUBING, GAUGES, SIGHT GLASSES, BRAIDED HOSE >

Open the catalog to page 12
