Overview

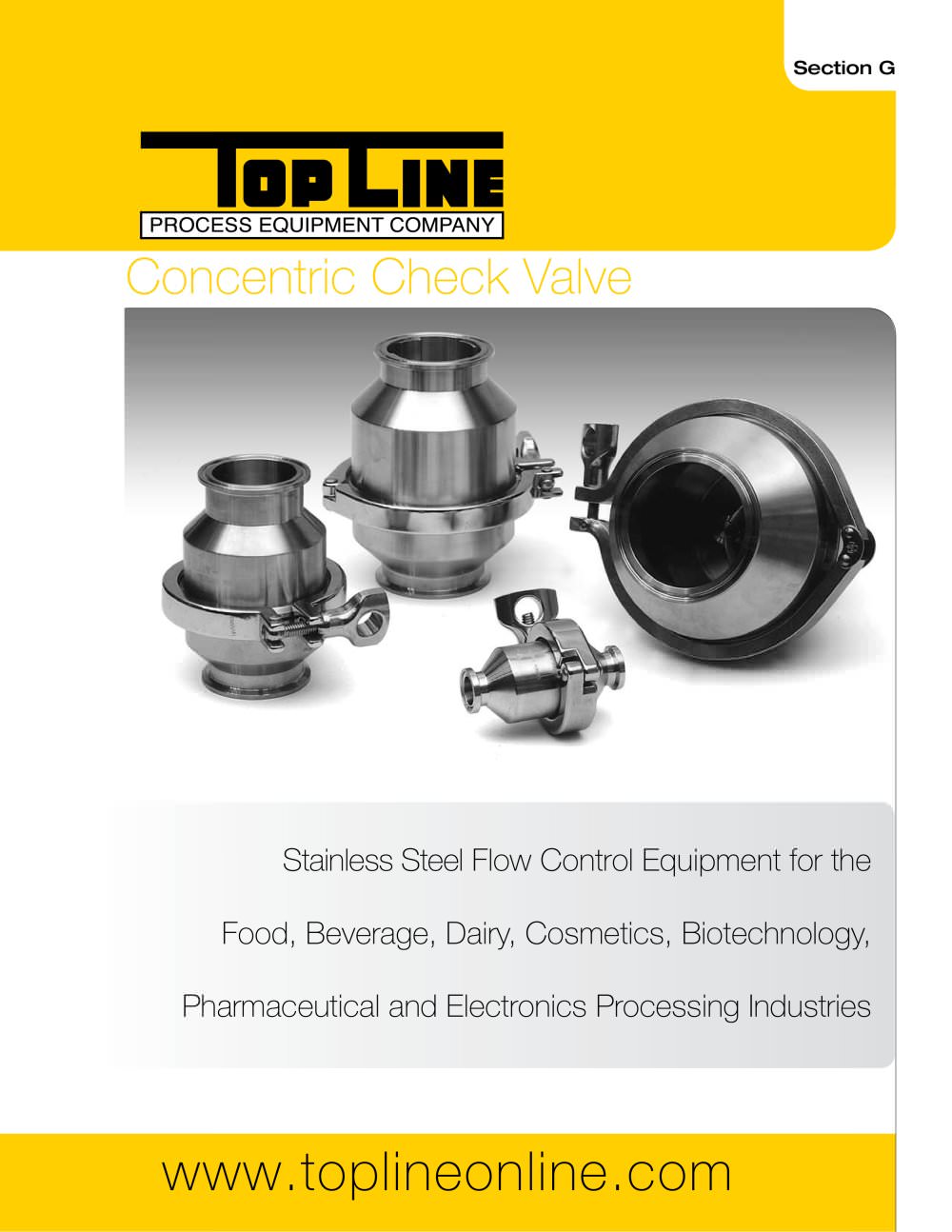

This document provides technical specifications and features of the Concentric Check Valve, designed for use in various industries including food, beverage, dairy, cosmetics, biotechnology, pharmaceutical, and electronics processing. The valve is crafted from 316L stainless steel and meets all 3A standards.

Features

• Suitable for Clean-In-Place (C.I.P.) systems.
• Operates at pressures up to 150 psi.
• Temperature range from 30°F to 225°F.
• Standard end connection is clamp type, with options for butt weld and TI-Line upon request.
• Guide finger disc available upon request.
• Standard seals are FDA Viton, with EPDM and other elastomers available upon request.
• Internal finish ranges from 25 to 30ra average.
• Material Test Reports available upon request.
• Eccentric type available upon request.

Design and Operation
The valve features a unique clamp design allowing for quick disassembly without tools. It includes a stainless steel spring for positive closure and smooth operation, suitable for both vertical and horizontal applications.

Product Variants

• Standard Disc Type Check Valve (3a)
  Available in sizes ranging from 1/2” to 6”.
• Guide Finger Disc Type Check Valve
  Available in sizes ranging from 1” to 6”.

Additional Information
For further assistance, contact your Top Line Representative. The office is located at P.O. Box 264, Bradford, PA 16701, and the plant at 21 Valley Hunt Drive, Lewis Run, PA 16738. Phone: 800-458-6095 or 814-362-4626, Fax: 814-362-4453.
