Introduction

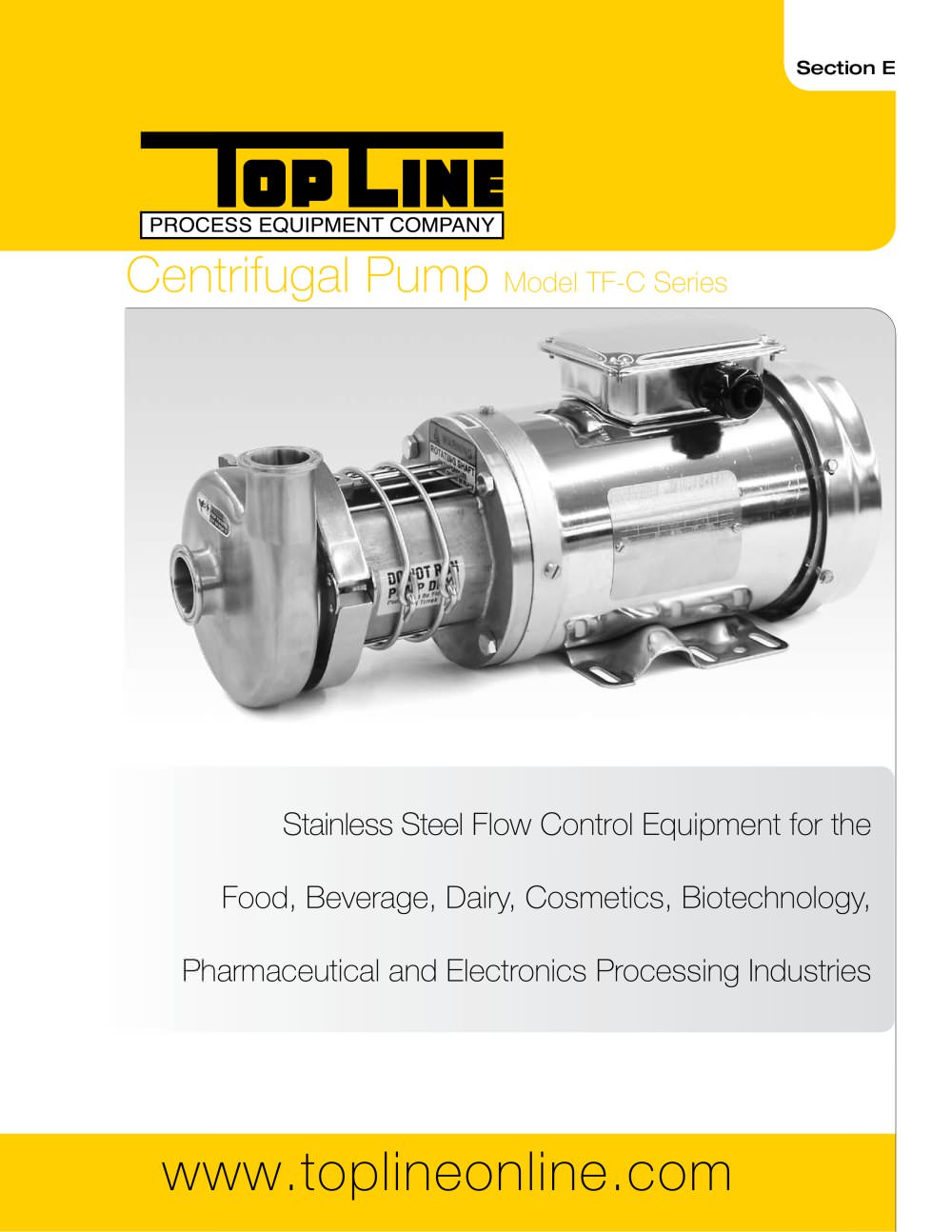

The ToP-Flo® TF-C Series centrifugal pumps are designed for efficient product transfer across various industries such as food, beverage, dairy, cosmetics, biotechnology, pharmaceutical, and electronics processing. These pumps are easy to install, clean, and operate, and are suitable for Clean-In-Place (CIP) installations, allowing automatic sanitization of all product contact areas.

Ordering Information
Ordering a TF-C Series pump involves a four-step process: selecting the pump series, inlet size, maximum impeller diameter, and type of seal. Additional specifications like motor data and required accessories should also be provided.

C-Series Specifications
The pumps feature volute-type casings with options for inlet oversizing. Constructed from 316 stainless steel for all wetted parts, seals are available in carbon and other materials. Standard casing gaskets are BUNA-N, with Viton and Teflon as alternatives. The pumps can be polished or electropolished and come with various port connections.

Pump Sizing Guide
The guide includes capacity curves for different models, helping users determine the appropriate impeller size and motor for specific applications. It provides instructions on using the curve charts to find the duty point, impeller diameter, and Net Positive Suction Head Required (NPSHR).

Head Capacity Curve Charts
Detailed capacity curves for models C100, C114, C216, C218, and C328 are included, based on water at 70°F. These charts assist in selecting the right pump configuration for specific flow rates and head pressures.

Viscosity and Specific Gravity Table
This section provides a table to adjust pump performance based on the viscosity and specific gravity of the fluid being pumped.

Friction Loss Table
The friction loss table aids in calculating the pressure loss due to friction in the piping system, crucial for accurate pump sizing and selection.

Pump Dimensions
Detailed dimensions for each pump model are provided to assist in installation planning and ensuring compatibility with existing systems.

Conclusion
The ToP-Flo® TF-C Series pumps are versatile and durable, suitable for a wide range of industrial applications. They offer superior sealing, smooth pumping performance, and ease of maintenance, making them a reliable choice for process industries.

Overview
The document provides technical specifications and data for the TOP-FLO® TF-C Series centrifugal pumps, including capacity curves, dimensions, and friction loss information. It also includes a viscosity and specific gravity table for various products.

Specifications
The document details the capacity curves for different models of the TF-C Series pumps, based on water at 70°F (22°C). Models include C216, C114, C218, and C328, with specifications such as size, RPM, and impeller diameter increments.

Procedures
The document outlines how to calculate head in feet and meters using specific gravity and provides conversion formulas for horsepower to kilowatts. It also includes a table for friction loss in sanitary tubing and fittings, indicating loss of head due to friction.

Standards and Recommendations
Notes mention that impeller diameters are available in 1/4-inch increments and that NPSHR is shown for maximum impeller diameter. The document advises requesting a certified print for applications requiring exact dimensions.

Viscosity and Specific Gravity Table
A comprehensive table lists various products with their specific gravity and viscosity at different temperatures, providing essential data for process industries.

Dimensions
Detailed dimensions for close-coupled pump models and motor frames are provided, including measurements for "Easy-Clean" totally enclosed motors.

Customer Sizing Data
A section for customer input on sizing data required for pump selection, including product type, viscosity, flow rate, and system configuration details.

Contact Information
Contact details for the Process Equipment Company, including office and plant addresses, phone numbers, and fax.
