Top Line Ball Valves
1 / 2 PagesView full catalog

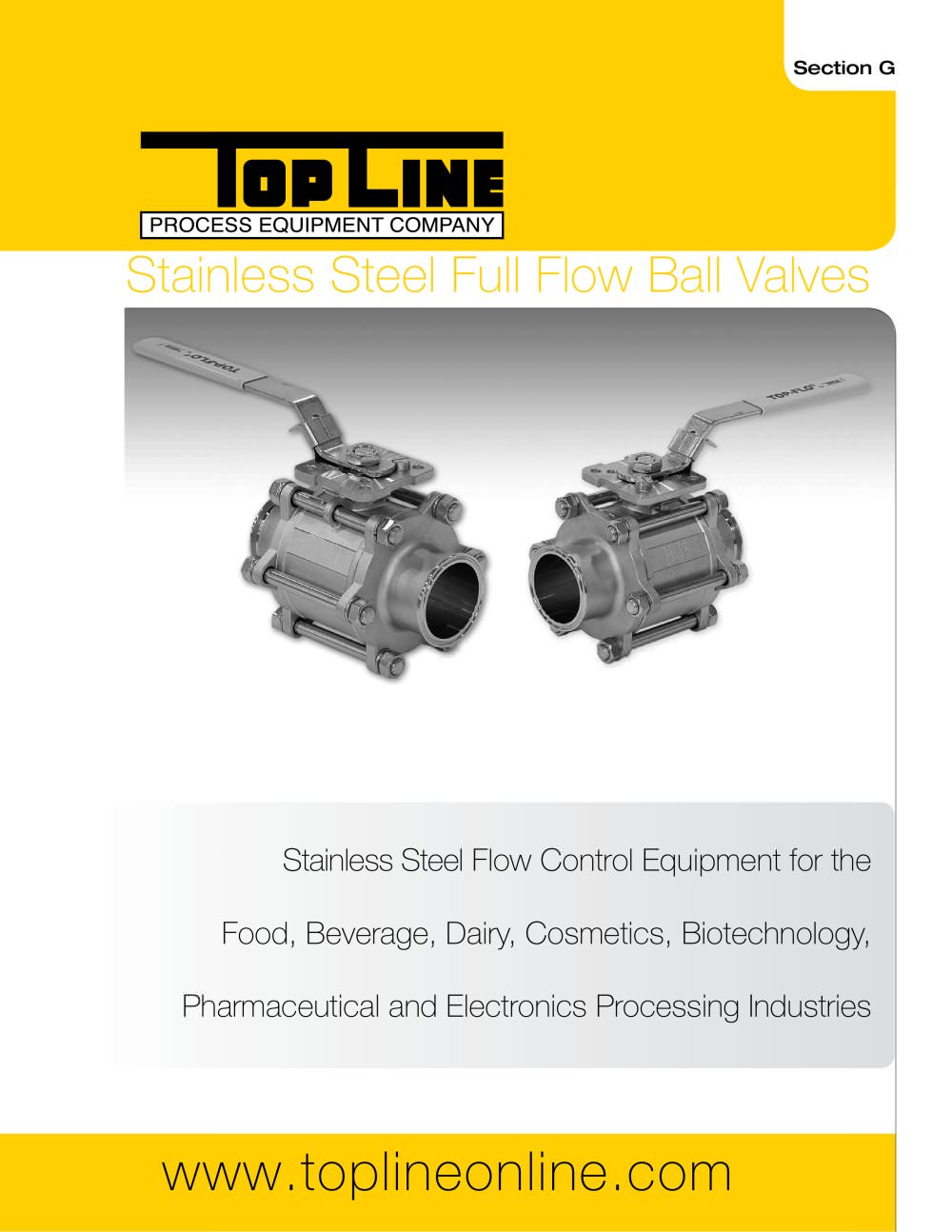

Top Line Ball Valves
Product catalog summary
Overview: This document provides detailed information about Top Line's Top-Flo® Full Flow Ball Valves, designed for use in various industries including food, beverage, dairy, cosmetics, biotechnology, pharmaceutical, and electronics processing. These valves are engineered for high performance and durability in demanding environments.
Mechanical Specifications:
- Available sizes range from 1/2” to 4”.
- Constructed from 316 Stainless Steel with Teflon seating.
- Connections include Clamp & Butt-weld, with other options available upon request.
- Capable of infinite closure positions with a locking handle.
- Pressure ratings: 1,000 psi at 70°F for sizes 1/2 - 2 and 800 psi at 70°F for sizes 2-1/2 - 4.
- Features true port design and options for air & electric actuators.
- Double Teflon stem packing for enhanced sealing.
Important Features:
- 360-degree installation capability.
- Precision-machined Teflon cavity fillers for maintaining sanitary conditions.
- Easy in-line servicing without detaching valve ends.
- No special tools required for maintenance.
- Designed for minimal turbulence and maximum flow.
- USDA approved and equipped with ISO5211 Mounting Pad.
Dimensional Specifications: The document includes a detailed table of dimensions for each valve size, specifying measurements such as face-to-face length, handle center to end, and center to top of handle, along with ISO5211 compatibility.
