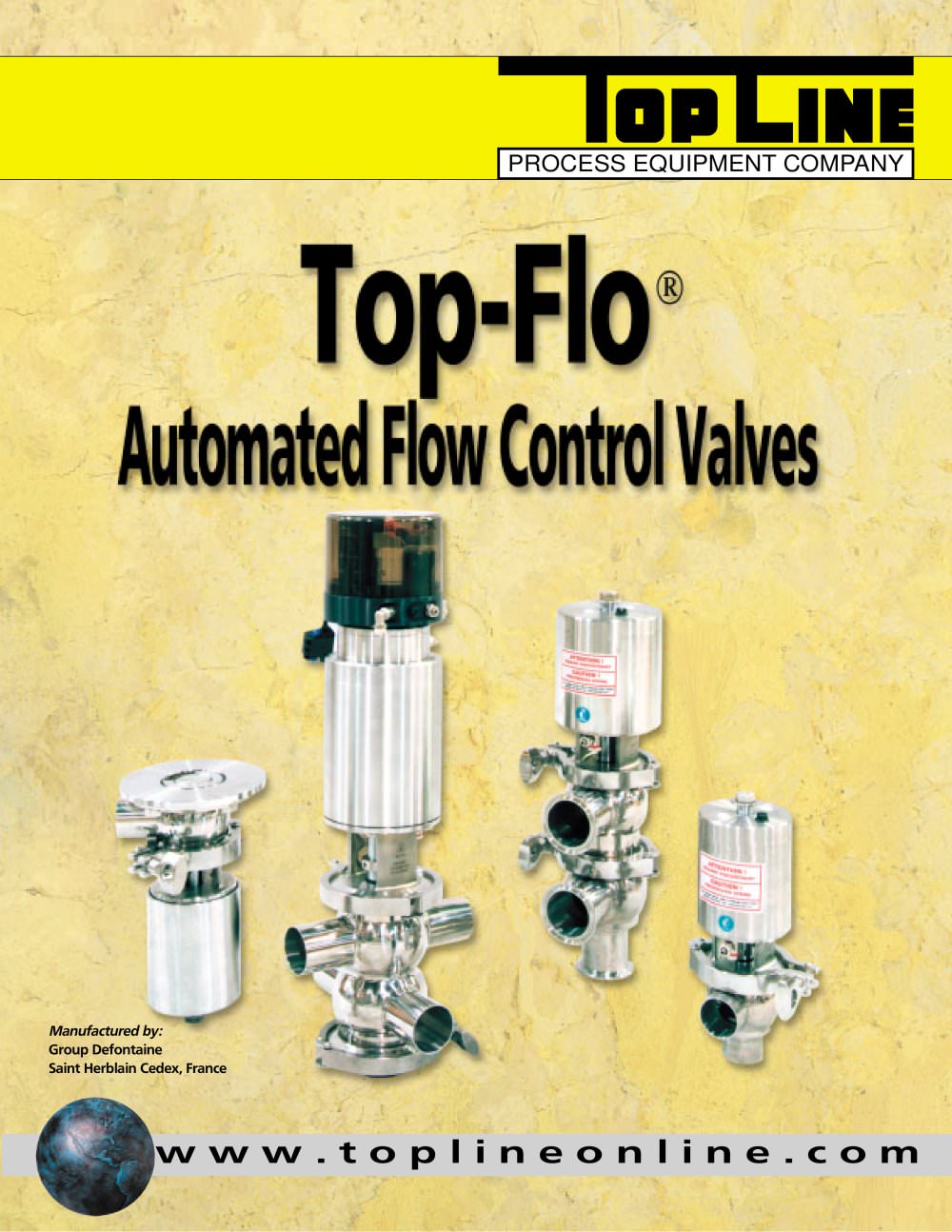

Top Line Air Operated Flow Control Valves
20Pages

Manufactured by: Group DefontaineSaint Herblain Cedex, France >

High tech and sturdy air operated valve, with a floating plug seal, meeting stringent use criteria.Օ An extra thick body of the actuator and of the valve, ensuring a good resistance to mechanical and thermaldistorsions. A modular design enabling the following configurations: Օ Shut off valveDCX3 LDCX3 TDCX3 X Divert valveDCX4 L/LDCX4 T/LDCX4 L/TDCX4 L/XՕ PFA seals quality ensures a complete sealing at high temperature and a good resistance to aggressive products. Plastomer seal can be replaced by elastomer sealՕ Single or double acting connection With plastomer seal, vertical setting up...

High tech, mix proof valve, with two independent plugs meeting stringent use criteria.Օ Fitted with an extra thick body of the actuator and of the valve, ensuring a good resistance to mechanical andthermal distortions. Possibility to actuate the two plugs independently and to clean the chamber area, plugs closed, thanks to a doublewall leak detection channel.Օ Partial balancing of the pressure under the lower plug thanks to a protected counterbalance. PFA seals ensure a complete sealing at high temperature and a good resistance to aggressive products (easily cleaned). Օ The design of the...

Maximum cleaning is dependent on the lifting stroke of the plugs and varies according to the different diameters.The below sheet indicates the flows calculated according to the tests realized by the CETIM (French Laboratory) under a pressure of 116 psi. Min. / Max. flow range under a water pressure of 116 psi. Cleaning flow by lifting of theCleaning flow by lifting of theSizeupper plug in ft3/hlower plug in ft3/h1-1/2 - 2Ԕ 35 - 14135 - 88 2-1/2 - 3Ԕ 53 - 17635 - 141 4 71 - 21253 - 176 5Ԕ - 6 176 - 28271 - 212 > Filtered dry air from 75 psi min. to 120 psi max. through Rilsan hose DN 1/4Ԕ OD...

Valve closed Valve open > The upper and lower lines are isolated by a releasing chamber allowing the protection of both lines, and the visualization of a possible leak. Both plugs closed against each other, preventing leakage. Remarks: Depending on the process, it is sometimes possible to use the stroke of one plug only to clean the valve completely. When the valve doesnt need particular cleaning, it can also be used without break away actuator. It is possible to clean the leakage chamber, when the valve is closed, by inserting a special fitting into the tapped center hole at the bottom of...

Detailed Drawing of VDCI mix proof valve Detailed Drawing of VDCI mix proof valve > Upper modular break away actuatorto allow the lifting of the lower plug. Compact actuator withoutexternal flanges.Optional switches on the lantern.Flow cross section reduced tominimize product loss during the cleaning. Possibility to actuate the two plugs independently and (or) to clean thechamber area, plugs closed, thanks to a double wall leak detection channel.Balanced pressure regulator(against water hammer)PTFE of elastomer seals Extra thick body of theactuator ensuring a goodresistance to mechanicaland...

VCDI-PMO Mixproof Valve VCDI-PMO Mixproof Valve > In order to meet the standards administered by the Pasturized Milk Ordinance, the VDCI-PMO Mixproof valvewas developed. This valve incorporates an enlarged leak path that is equal in ID dimension to the valve port size. The VDCI-PMO Mixproof valve is manufactured with the same characteristics and options as the standard VDCI Mixproof valve. Note: The standard position feedback equipment can be complimented with proximity switches to detect thevalve plugs are raised during air space and leak path CIP operations. 13 size="-1">

This valve completes the range of standard mix proof valves.Օ Integral flange for welding to tank bottom. Eliminates product retention area on tank bottom. Օ Central leakage detection. > Body and plug:316L stainless steel Օ Plug seal:PFA Body seal:viton or EPDM Օ Actuator:304 stainless steel > On tank:welded integral flange Օ On tube:according to the norm, available with many different industry standards (SMS - DIN - CLAMP - tube - etc.) External = 47 RA max (150 grit)Օ Internal = 32 RA max (180 grit) Control box on the top of the actuator. > Single acting compulsory for double sealing....

Standard control box withstainless steel coverOptional control box withplastic or stainless steel cover MechanicalՕ Proximity Explosion Proof > Օ DeviceNet > Ε AS-i > 2.1Ε Foundation Fieldbus > Others on request Ε ICoT > Available in valve mounted and remote mount versions size="-1">

Office: P.O. Box 264Bradford, PA 16701 Phone: 800-458-6095814-362-4626 FAX: 814-362-4453 Plant: 21 Valley Hunt DriveLewis Run, PA 16738 E-mail: > Form No. CAT-DEF RG Rev. 10x-02 ԩ 2002 Top Line size="-1">
