Swinging Doors
16Pages

{{requestButtons}}

Catalog excerpts

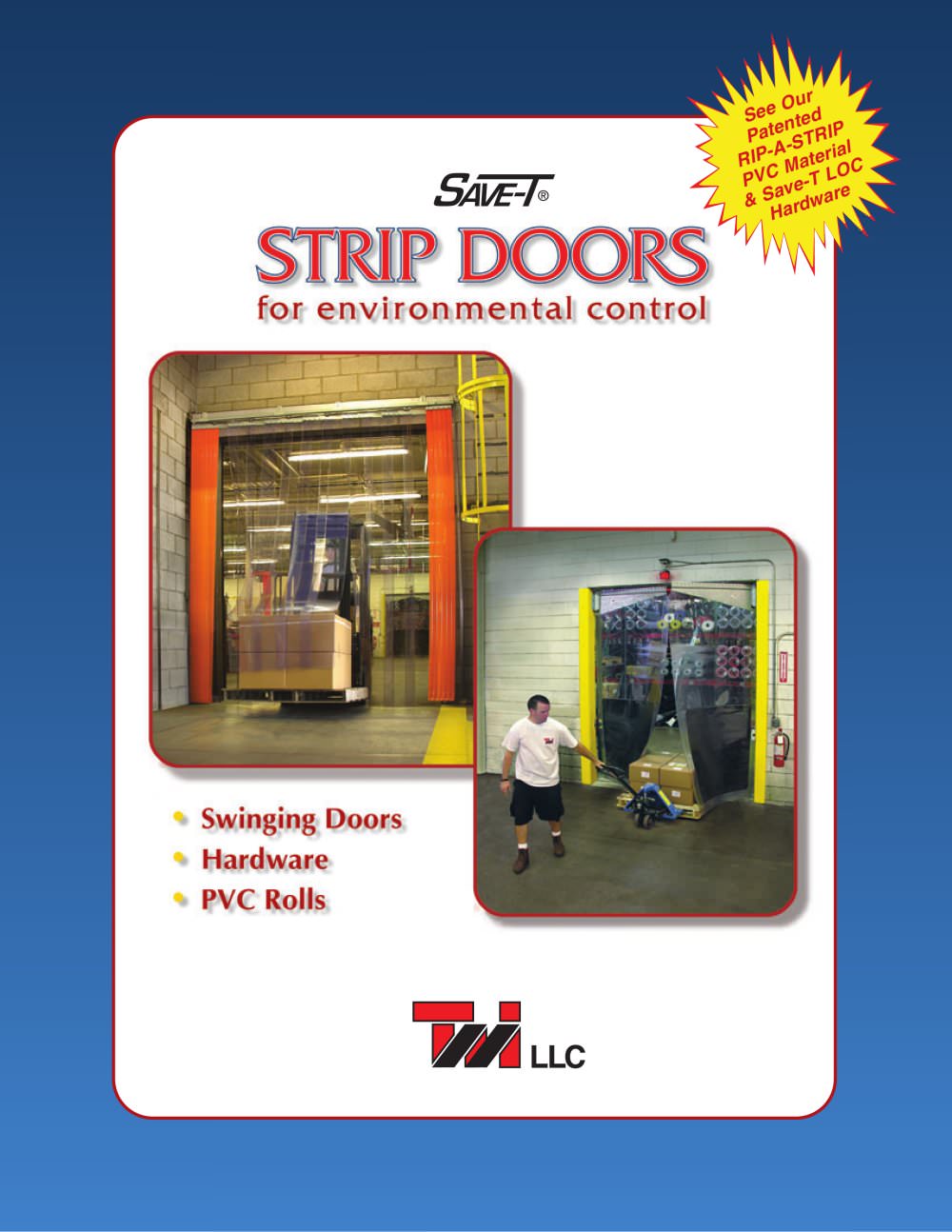

Swinging Doors - 1

See Our Patented RIP-A-STRIP PVC Material & Save-T LOC Hardware

Open the catalog to page 1
Swinging Doors - 2

® Products 2 Why use Strip Doors & Swinging Doors? Table of Contents 2 Why Use Strip and Swinging Doors? Our Strip Doors and Swinging Doors are the most economical solutions to protect employees and goods from adverse environmental conditions such as noise, heat, cold, humidity, dust and drafts. In order to meet the demanding requirements of today’s industrial and commercial marketplaces, our inventory of Products is constantly being updated. We offer the most diversified range of PVC products and strip door hardware in the USA. Our sales staff and design engineers can handle your everyday...

Open the catalog to page 2
Swinging Doors - 3

1-800-888-9750 3 Exclusive RIP-A-STRIP™ “Ready-to-Hang” Replacement Strips on a Roll Patent No. 6,933,030 STEPS RIP-A-STRIP is available in strip sizes from 4'' to 16'' wide, up to 1/4'' thick, and in lengths from 1 foot to 16 feet. PULL THE STRIP 1 HANG THE STRIP 2 RIP THE STRIP 3 Strips are 85% Pre-Cut with Pre-Punched Hanger Holes Standard Clear Flat Strips QSRIP-8X7-10-STD 8'' W x 7'L .080'' Thick 10 Pc. QSRIP-8X8-9-STD 8'' W x 8'L .080'' Thick 9 Pc. QSRIP-12X10-7-STD 12'' W x 10'L .120'' Thick 7 Pc. QSRIP-12X12-6-STD 12'' W x 12'L .120'' Thick 6 Pc. The items listed below are in stock...

Open the catalog to page 3
Swinging Doors - 5

1-800-888-9750 5 Width Model Roll Shipping in Inches Number Thickness Length Weight 8 RCS08072 .072/.272'' 150' 60 Lbs 12 RCS12110 .110/.310'' 150' 124 Lbs 16 RCS16145 .145/.345'' 100' 141 Lbs 8 RCU08072 .072/.272'' 150' 60 Lbs 12 RCU12110 .110/.310'' 150' 124 Lbs 16 RCU16145 .145/.345'' 100' 141 Lbs 8 ROS08072 .072/.272'' 150' 60 Lbs 12 ROS12110 .110/.310'' 150' 124 Lbs 8 RIC08072 .072/.272'' 105' 41 Lbs 12 RIC12080 .080/.280'' 105' 61 Lbs 4 FCL04060 .060'' 300' 44 Lbs 4 FCL04080 .080'' 300' 54 Lbs 6 FCL06060 .060'' 300' 62 Lbs 8 FCL08080-1 .080'' 105' 38 Lbs 8 FCL08080-3 .080'' 300' 105...

Open the catalog to page 5
Swinging Doors - 6

® Products 6 Amber and Aztec Red colored transparent PVC protects against the effects of UV light emitted during arc welding. However, eye protection should be worn for direct viewing of welding arcs even through this material. Anti-Static material meets or exceeds the specifications of Federal Test Methods ST.101C and 4046. The electrical charge decay rate is 0.50 sec. with a charge potential of 5,000 volts. Please note: Any product liabilities are the sole responsibility of the end-user of that product. Safety Orange PVC material designates door jambs and other areas for safety purposes....

Open the catalog to page 6
Swinging Doors - 7

1-800-888-9750 7 Width Model Roll Shipping in Inches Number Thickness Length Weight FCS36275 9/32'' 60' 315 Lbs FCS36400 3/8'' 60' 450 Lbs FCS36500 1/2'' 60' 540 Lbs FCS40400 3/8'' 60' 500 Lbs FCS40500 1/2'' 60' 600 Lbs FCS45400 3/8'' 100' 940 Lbs FCS48275 9/32'' 60' 420 Lbs FCS48400 3/8'' 60' 600 Lbs FCS48500 1/2'' 60' 720 Lbs FCS60275 9/32'' 60' 525 Lbs FCS60400 3/8'' 60' 750 Lbs FCS60500 1/2'' 60' 900 Lbs 36 40 48 45 60 0°F to 150°F 0°F to 150°F Standard - Clear FCL36275 9/32'' 60' 315 Lbs FCL36400 3/8'' 60' 450 Lbs FCL40400 3/8'' 60' 500 Lbs FCL40500 1/2'' 60' 600 Lbs FCL48275 9/32''...

Open the catalog to page 7
Swinging Doors - 8

® Products 8 Material Requirements Light Traffic Interior Doors The information here will allow you to determine how much PVC Strip Material will be needed for your project. Based on the door height, the location and kind of traffic, different sizes of strip material (above charts) are available in six different overlap patterns (drawings to the right). For interior doors apply minimum strip overlap, for exterior doors apply maximum overlap. For heavy-duty traffic applications, use offset double ribbed material. 100% 50% 67% 33% 12’’ STRIP 100% 50% 75% 25% 16’’ STRIP 100% 4" STRIP 50% 100%...

Open the catalog to page 8
Swinging Doors - 9

1-800-888-9750 9 Physical Properties of PVC Materials Thermal conductivity is the quantity of heat passing in “unit” time through a piece of “unit” area and “unit” thickness with a temperature differential of one degree between the faces. The values in this table were obtained using ASTM Test C-177. All of TMI, LLC’s flexible PVC strip and sheet products are designed and tested for both commercial and industrial applications. The materials represented in this catalog have been tested using American Standard Test Methods (ASTM). The Anti-Static performance at 73°F and 40% RM charge in kilo...

Open the catalog to page 9
Swinging Doors - 10

® Products 10 Strip Door Hardware We offer two Save-T Overhead Door Brackets. The “Heavy Duty” design provides superior strength up to 24' wide. Our “Standard Duty” design , a TMI, LLC exclusive, can be easily adjusted or rolled up on doorways up to 11' wide. All brackets are zinc plated. Mounting Bars All models are also available in Threaded Stud Hardware Overhead Door Brackets LOC Heavy Duty Standard Duty Model SL-LC Hardware is available in galvanized steel, stainless steel & aluminum in both Save-T LOC and Threaded Stud models Model UL-LC Threaded Stud Model UL Threaded Stud Model SL...

Open the catalog to page 10
Swinging Doors - 11

1-800-888-9750 11 Wall space on either side of the doorway opening might be limited. Therefore, we have three basic design configurations. See the drawings to the left for your application. Sliding Track System Accordion Strip Doors Model BP-WM Model OS-WM Model DT-HM frame Wall Mount Track Connector-Down WMTC-D-16 Straight Track RT-16-8/10/20 Straight Splice Connector SSC-16 Double Ceiling Support/Splice Connector DCSSC-16 Sectional Hinged Trolley with Nylon Wheels HT-16 End Stop ES-16 End Stop ES-16 Wall Mount Track Connector-Up WMTC-U-16 Bi-Parting – Wall Mount One-Sided – Wall Mount...

Open the catalog to page 11
Swinging Doors - 12

® Products 12 Mega-Pro™ Swinging Doors Interior Applications Only Mega-Pro™ Swinging Doors are light industrial impact doors for doorway openings up to 10' wide. This revolutionary door has a spring return and swings on an even plane. Panel Materials Panels are available in either standard grade clear or USDA clear, polar PVC, in thicknesses up to 9/32''. Welded-on Impact Plates are optional. FOR DOORWAY OPENINGS 60'' to 120'' wide Up to 120'' high Torsion Springs Constructed of heavy-duty galvanized steel swinging arms and mounting brackets, this hardware is located at the top of the unit...

Open the catalog to page 12
