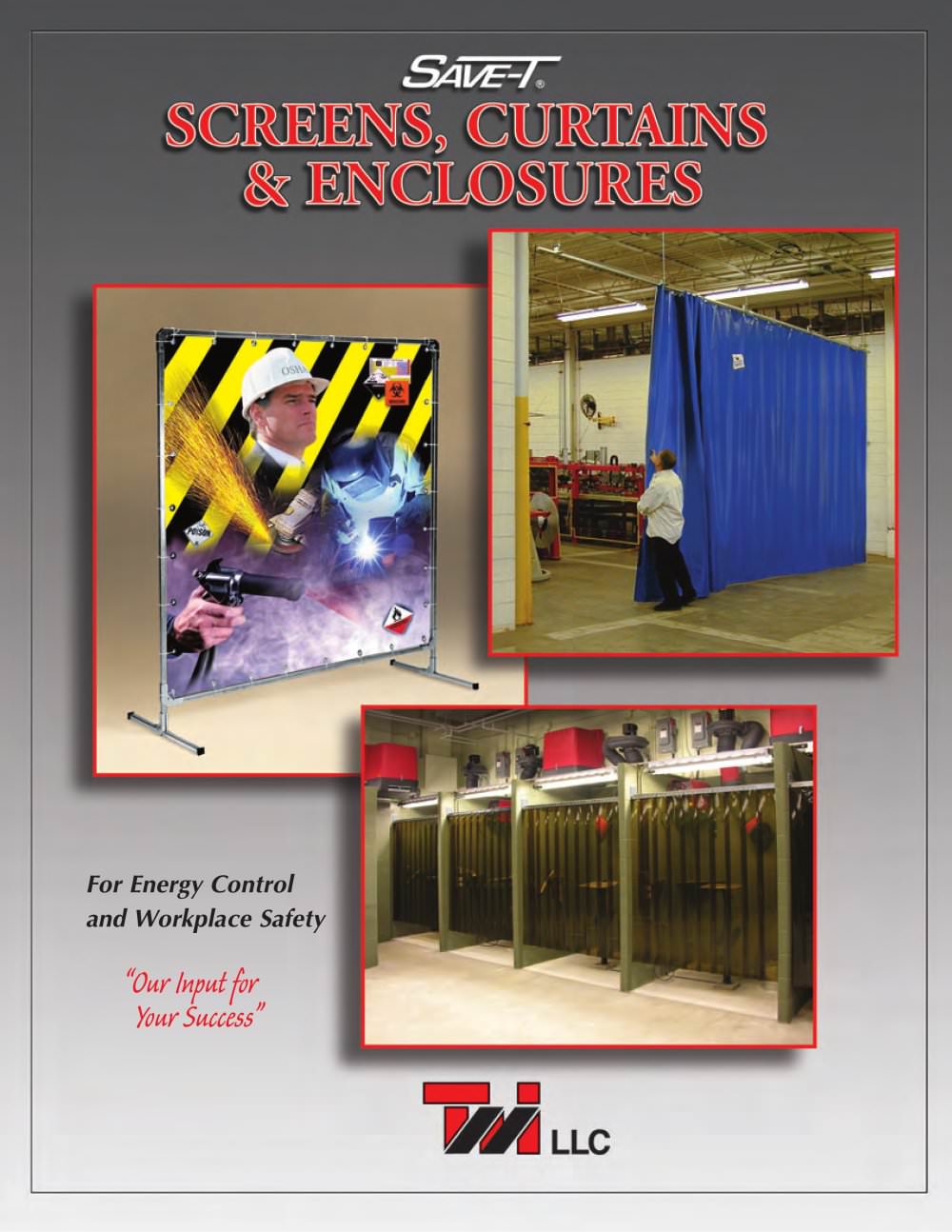

For Energy Control and Workplace Safety “Our Input for Your Success”

Common Configurations Double Horizontal Single Double Hinged Portable Screens are primarily used for welding and grinding applications. These standalone screens offer excellent protection against harmful levels of UV light, as well as, sparks and flying debris. Z Fold with Casters 2 Portable Screens ® 1. Colored dye absorbs more of the glare producing blue light. 2. Refractive surface treatment causes small bright welding arcs to appear larger and less bright. This reduces the glare effect. 3. Small zinc oxide particles scatter light in all directions, causing pupil to constrict and shut...

CORNER CLAMP WSCB-D PLASTIC END CAP WSEC-D CASTERS WS2C-D TUBULAR FRAMES WSST-D ADJUSTABLE TIE STRAP WSTS-D HINGE CORNER CLAMP WSCHB-D DOUBLE CORNER CLAMP WSC/LB-D 16 mil Transparent Available Colors Yellow Green Aztec Red Blue Gray Clear 18.5 oz. Opaque Available Colors Yellow Forest Green Kelly Green Lime Green Navy Blue Royal/ Ocean Blue Light Blue Orange Red Brown Gray Black White Tan/ Beige Burgundy Pink Purple 20 mil Transparent Available Colors Clear 20 mil Anti-Static Available Colors Clear 30 mil Transparent Available Colors Clear 40 mil Transparent Available Colors Amber Aztec Red...

The most common applications: • Partitioning warehouse areas • Isolating machinery • Sectioning different work areas • Protection from welding and grinding operations • Creating washdown areas • Protection from smoke and dust • Creating space for privacy Our line of Industrial Curtains is the most inexpensive solution for environmental problems such as dust, smoke, humidity, temperature control and noise. The curtains are available in 16 mil transparent and 18.5 oz. opaque PVC in a variety of 17 standard colors. Optional Chain Weighted Hem Material Options: • Fixed Strips • Curtains •...

CEILING SUPPORT/SPLICE CONNECTOR CEILING SUPPORT CONNECTOR CEILING CORNER CONNECTOR 90° CEILING "T" CONNECTOR 90° CURVED TRACK WITH CEILING CONNECTORS DOUBLE CEILING SUPPORT/SPLICE CONNECTOR CURVED TRACK 90° STRAIGHT TRACK CSSC-16 CSC-16 CCC-16 CTC-16 CTCC-16 CC-90-16 WMES-D-16 WALL MOUNT TRACK SPLICE CONNECTOR – UP – WALL MOUNT TRACK SPLICE CONNECTOR – DOWN – WALL MOUNT TRACK CONNECTOR – UP – WALL MOUNT TRACK CONNECTOR – DOWN – DOUBLE WALL MOUNT TRACK SPLICE CONNECTOR – UP – DOUBLE WALL MOUNT TRACK SPLICE CONNECTOR – DOWN – WALL MOUNT END STOP – UP – WALL MOUNT END STOP – DOWN – WMES-U-16...

Wall/Floor Mounted Wall Mounted Wall/Floor Mounted Floor Mounted Sliding Track Opening TMI offers a full line of Modular Enclosures. This unique product line enables you to build from the floor up or from the ceiling down. PVC strips or panels in clear, transparent or welding grades are standard options. Modular Enclosures are very popular in clean rooms, weld shops, machine shops and warehouses. To meet OSHA standards for sound, light transmission, dust or smoke pollutants, the most economical solution is a Save-T Enclosure or Partition. Enclosures ® TEC SCREW #12 MOUNTING BOLTS Common...

FLOOR MOUNT COLUMN SQUARE TUBE FMC-8-2 FMC-10-2 FMC-12-2 SQUARE TUBE WITH 3/8" THREADED INSERTS AT 24" CENTERS AND ATTACHED STUDDED HARDWARE Hardware 7 FLOOR MOUNT BASE 12"x12" FLOOR SUPPORT SPLICE CONNECTOR DOUBLE FLOOR SUPPORT TRACK SPLICE CONNECTOR CROSS SUPPORT 90° ANGLE SQUARE TUBE WITH ATTACHED STUDDED HARDWARE FMB-12-11/4 FSSC-11/4 DFSTSC-11/4 ST-11/4-UL-8 ST-11/4-UL-10 FMC-6-11/4 FMC-8-11/4 FMC-10-11/4 FLOOR MOUNT BASE 6"x6" THREE-WAY CORNER CONNECTOR FLOOR SUPPORT TRACK CORNER CONNECTOR FLOOR SUPPORT TRACK "T" CONNECTOR FLOOR SUPPORT TRACK SPLICE CONNECTOR FLOOR SUPPORT END...

Available Materials and Colors 8 Quilted Fiberglass Material (QFM) Gray White Tan Black High Temperature Materials Beige (1000 PG-B) Up to 1000°F Red (1000 HS-R) Up to 1000°F 8" x .080" 12" x .080" 12" x .120" 16" x .160" 24" x .080" 24" x .120" 24" x .160" 48" x .040" 48" x .080" 48" x .120" 48" x .160" Clear Aztec Red 8" x .080" 12" x .120" 16" x .160" 48" x .080" Black Opaque 8" x .080" 12" x .080" 12" x .120" 16" x .160" 24" x .080" 24" x .120" 24" x .160" 48" x .040" 48" x .080" 48" x .120" 48" x .160" Amber 8" x .080" 12" x .120" 48" x .040" Weld Screen Weld Screen The materials...

Insulated Curtains ® 9 Pipe Staff Enclosures ® Trolley with Steel Wheels, Ball Bearings and Hook Machine Bolt with Lock Nut Cane Bolt Lifting Catch can be locked to secure area Galvanized Pipe Steel Anchor Rod Bead Chain with “S” Hook Self-Tapping Machine Screw Our exclusive Pipe Staff design adds stability and security to our complete line of enclosures with “lock-up” cane bolt and “lock-down” wall brackets. These enclosures are ideal for exterior applications. Our insulated curtains are ideal as barriers against cold or heat transference. They have a high R value of up to 15. A bottom...

10 Portable Screens Blankets Industrial Curtains Series 1000 HS-R Property Data Basic Fabric: Fiberglass Color: Red/Orange Weight: 32.5 oz./sq. yard Thickness: .040” Tensile Strength: Warp: 350 lbs/inch Fill: 200 lbs/inch Certifications: • OSHA Std 29-1.910.93 • Mil-1-24244 and ASTM-E-162 Series 1000 PG-B Property Data Base Fabric: Fiberglass Color: Tan Weight: 18.5 oz./sq. yard Thickness: 0.30” Tensile Strength: Warp: 200 lbs/ in. Fill: 100 lbs/ in. Portable screens can be supplied with any of the quilted fiberglass or absorber/barrier composite panels. The standard frame is constructed of...
