83-500 Series

Product catalog summary

Introduction
The document introduces the 83-500 Series Multi-Purpose Acoustic Enclosure by Technical Manufacturing Corporation (TMC). This enclosure is designed to provide a robust, floor-mounted solution compatible with TMC's TableTop™ Vibration Isolation Systems, aimed at precision research and manufacturing environments.

Background
TMC has a history of offering custom acoustic enclosures tailored to specific tools. However, the demand for a standard, versatile enclosure led to the development of the 83-500 Series, which combines features of custom designs with a practical, multi-purpose approach.

Features & Benefits

Steel exterior with a powder-coat finish for durability.
Acoustic attenuation capability of up to 40 dB.
Compatibility with both active and passive TMC vibration isolation systems.
Hinged side panels, glass window, and casters for ease of use.
Self-opening front panel for operator convenience.
Robust handle and latch for comfort and ease of use.

Specifications
The enclosure is available in a standard size of 36 inches in width, 32 inches in depth, and 64 inches in height. Custom configurations are available for specific applications.

Applications
The enclosure is suitable for microscopes, AFMs, and other small precision instruments. It can be integrated with TMC's Electro-Damp® PLS Vibration Isolation System for enhanced performance.

Additional Products
The document also lists various TMC products, including vibration cancellation systems, lab tables, optical tops, and magnetic field cancellation systems, highlighting TMC's comprehensive offerings in precision research and manufacturing solutions.

Conclusion
The 83-500 Series Multi-Purpose Acoustic Enclosure provides a versatile and practical solution for acoustic and vibration isolation needs in precision environments, backed by TMC's expertise and range of compatible products.

Catalog excerpts

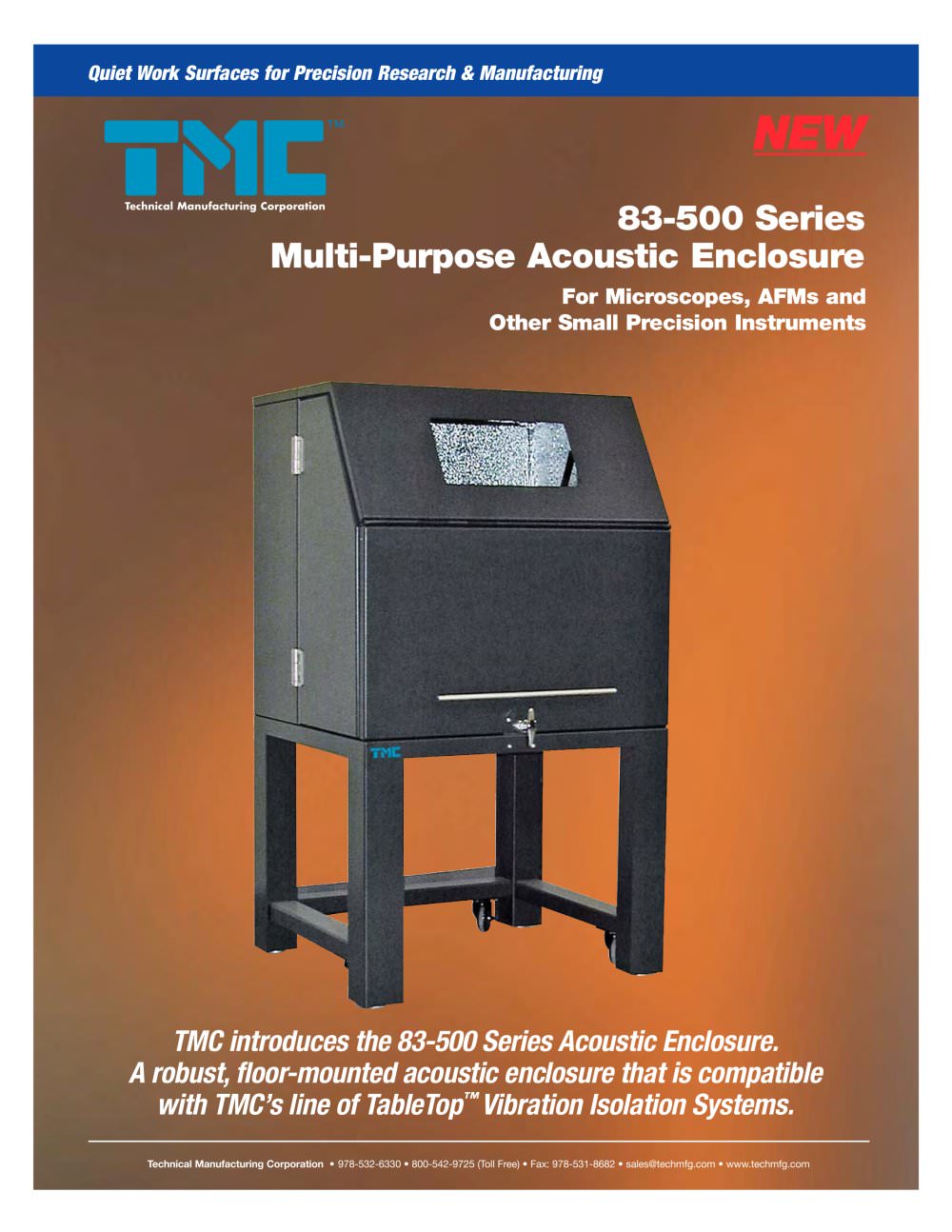

™ Technical Manufacturing Corporation 83-500 Series Multi-Purpose Acoustic Enclosure Quiet Work Surfaces for Precision Research & Manufacturing Technical Manufacturing Corporation • 978-532-6330 • 800-542-9725 (Toll Free) • Fax: 978-531-8682 • [email protected] • www.techmfg.com TMC introduces the 83-500 Series Acoustic Enclosure. A robust, floor-mounted acoustic enclosure that is compatible with TMC’s line of TableTop™Vibration Isolation Systems. NEW For Microscopes, AFMs and Other Small Precision Instruments

Open the catalog to page 1

Technical Manufacturing Corporation • 978-532-6330 • 800-542-9725 (Toll Free) • Fax: 978-531-8682 • [email protected] • www.techmfg.com Precision Vibration Isolation Systems 83-500 Series Multi-Purpose Acoustic Enclosure TMC has offered custom acoustic enclosures for our equipment maker customers for many years. These enclosures are highly engineered and uniquely suited to the specific tool being isolated. End-users, however, were placed in a position of having to design their own acoustic enclosures for their unique applications. Given the level of design involved, this was impractical. Demand...

Open the catalog to page 2

Technical Manufacturing Corporation • 978-532-6330 • 800-542-9725 (Toll Free) • Fax: 978-531-8682 • [email protected] • www.techmfg.com Quiet Work Surfaces for Precision Research & Manufacturing Acoustic Enclosure and Vibration Isolation System OEM and Custom Configurations Electropolished Stainless Steel Acoustic Enclosure with integrated TMC Electro-Damp® PLS Vibration Isolation System for Veeco Process Metrology AFM 15-foot long “T” shaped Breadboards with acoustic/emi/dust housings (Pre-Amplifier Modules for National Ignition Facility at LLNL). Full-size “Walk-in” Acoustic Enclosures Integrated...

Open the catalog to page 3

™ Technical Manufacturing Corporation I S O 9 0 0 1 C E R T I F I E D www.techmfg.com TMC Products AT-A-GLANCE STACIS® 2100 Active Piezoelectric Vibration Cancellation System Electro-Damp® Active Vibration Cancellation System Electro-Damp® II Active Pneumatic Vibration Damping System Electro-Damp® PZT Frame-Mountable Active Hard-Mount with Extended Stroke Electro-Damp® PLS DSP Precision Leveling System PEPS-VX® Vibration Cancellation Add-On for PEPS® AccuDock™ Precision Kinematic Docking System 63-500 SERIES High-Performance Lab Tables 20 SERIES Active Vibration Isolation Tables 68-500 SERIES...
